PV10 Series Illuminated Anti-vandal Switch

PV10 Series Illuminated Anti-vandal Switch

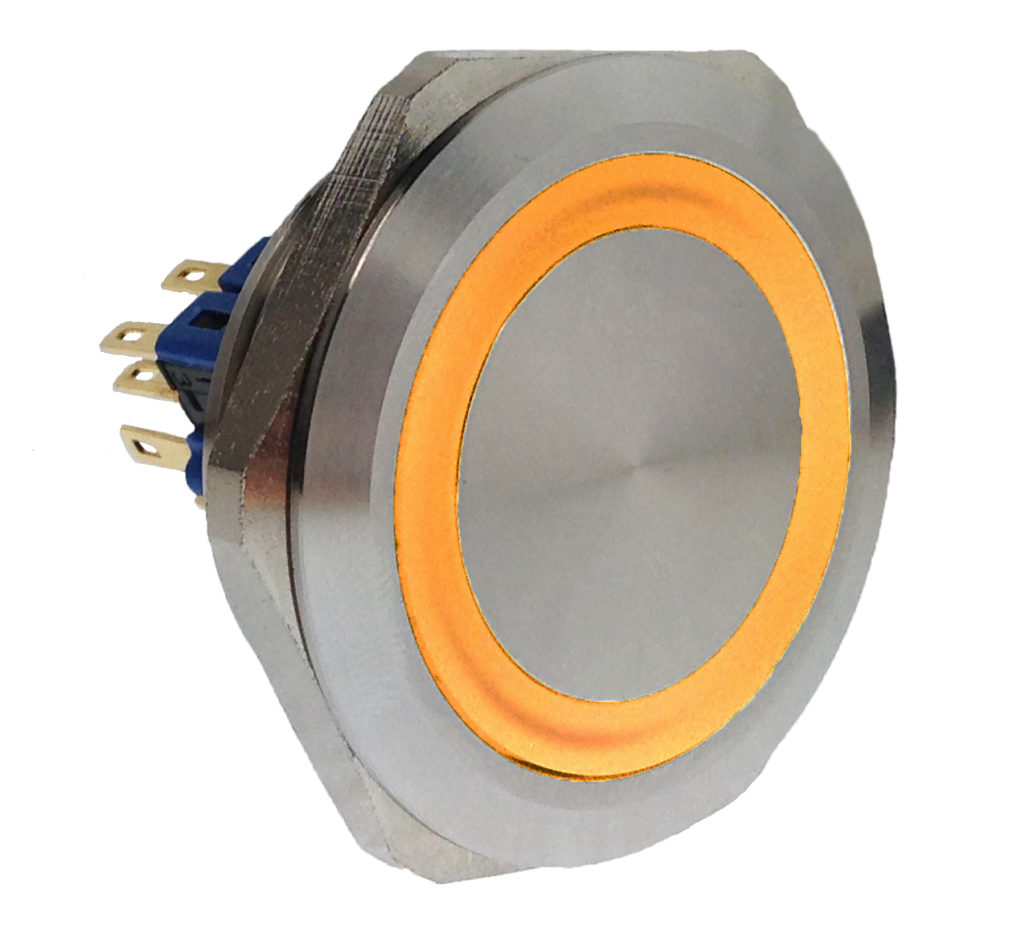

The PV10 Series is a 40mm anti-vandal switch with a flat actuator, solder lug termination, and multiple switch functions. Available as non-illuminated or the option of ring or center dot illumination, the PV10 Series offers multiple LED color options, including several bi-color choices and illumination voltage options.

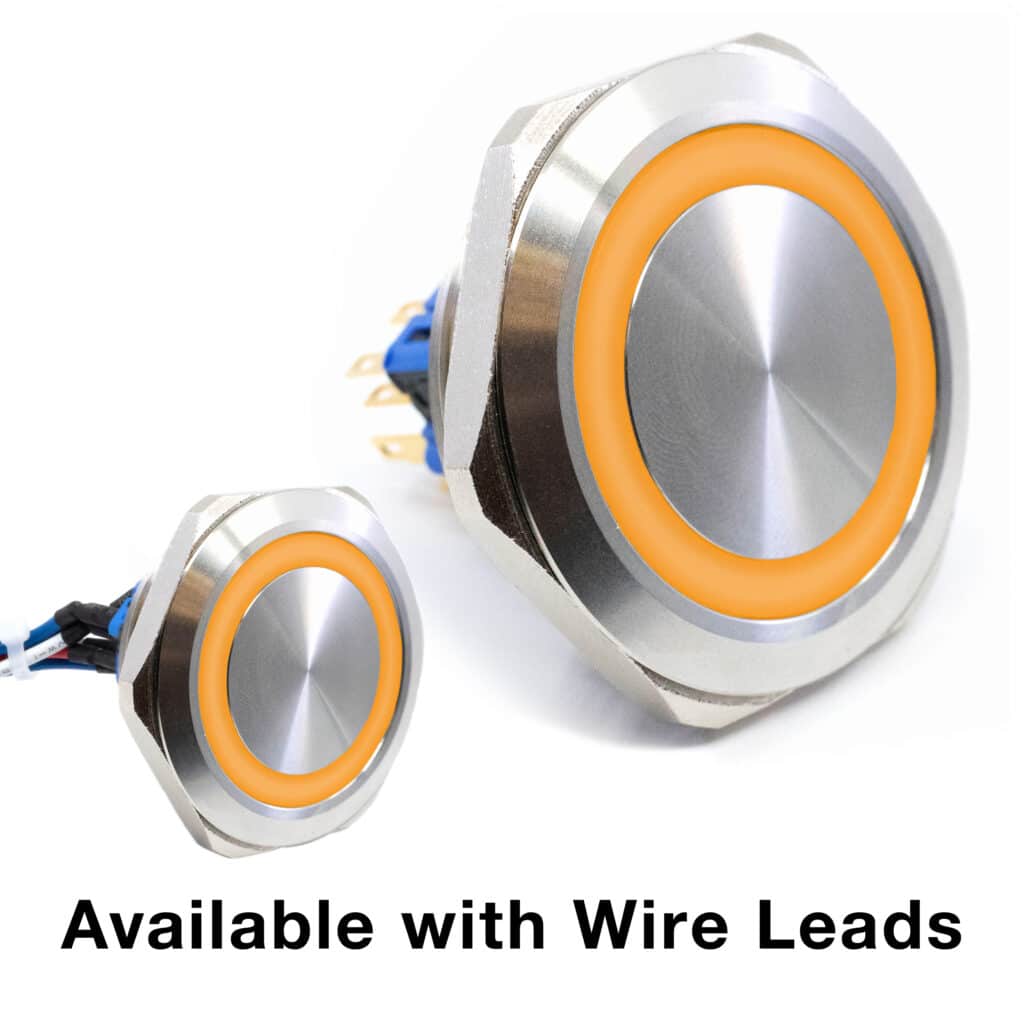

The PV10 Series anti-vandal switch is rated IP65 for dust and moisture protection and has a mechanical life of a million cycles. It comes with SPDT or DPDT contact arrangement options and provides 2.8mm of travel. These anti-vandal switches are also available with wire leads to shorten installation time. Applications for the PV10 Series anti-vandal switch include:

  • Audio/visual equipment
  • Security devices
  • Industrial controls
  • Kiosk panels
  • Electrical houseware
  • Medical equipment

FEATURES

  • 40mm panel cutout
  • IP65 rated for dust and moisture protection
  • Dot or ring illumination options available
  • SPDT or DPDT; multiple switch functions available
  • Multiple illumination voltage options

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Pv10 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

  • ELECTRICAL RATING: 2A @ 48VDC
  • MECHANINCAL LIFE: 1,000,000 Cycles
  • ELECTRICAL LIFE: 50,000 Cycles
  • CONTACT RESISTANCE: 50mΩ Max.
  • INSULATION RESISTANCE: 1000 MΩ Min. @ 500VDC
  • DIELECTRIC STRENGTH: 2,000VAC
  • OPERATING/STORAGE TEMPERATURE: -20°C to 55°C
  • TRAVEL: 2.8mm
  • DUST/MOISTURE PROTECTION: IP65
  • CONTACT ARRANGEMENT: SPDT or DPDT
  • ACTUATION FORCE: 6.5N
  • PANEL THICKNESS: 1-5mm
  • HEX NUT TORQUE: 0.6Nm
