PV0 Series Sealed, Illuminated Anti-vandal Switch

PV0 Series Sealed, Illuminated Anti-vandal Switch

The PV0 Series anti-vandal switch is sealed to an IP67 ingress protection rating, and operates in temperature ranges of -25°C to +55°C.  There are two actuator options to choose from (stainless steel or black anodized), silver contact material, and your choice of dot or ring illumination or a non-illuminated version. The colors available include white, red, orange, green, blue, yellow, or RGB. The PV0 Series anti-vandal switch offers one million mechanical life cycles and is a Single Pole, Single Throw (SPST) switch. It is meant for mounting in a 12mm panel cutout. With the same aesthetic appeal as the other PV Series switches, this switch can be found in applications such as:

  • Kiosks and ticket dispensers
  • Audio/visual applications
  • Electrical housewares
  • Medical equipment
  • Industrial applications that require tamper resistance

FEATURES

  • IP67 rated protection against dust and moisture
  • 12mm panel cutout
  • Ring or dot illumination options
  • Multiple LED color options

PV0 Series Sealed, Illuminated Anti-vandal Switch

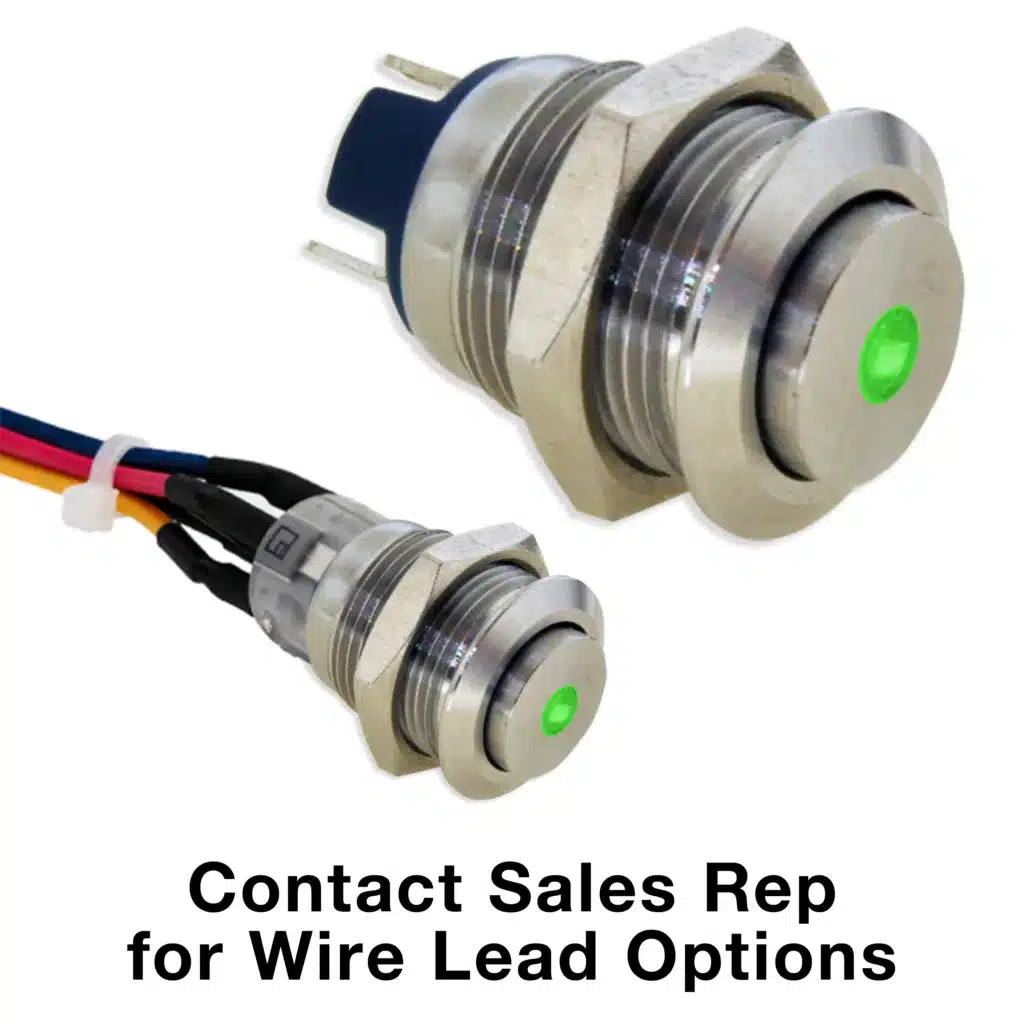

decoration Pv0 Wire

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Pv0 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

PV0H240SS
PV0H240SS-331
PV0H240SS-341

Detail Specifications

ELECTRICAL RATING: 2A @ 36VDC MECHANICAL LIFE: 1,000,000 Cycles ELECTRICAL LIFE: 50,000 Cycles CONTACT RESISTANCE: 50mΩ Max. INSULATION RESISTANCE: 1000 MΩ Min. DIELECTRIC STRENGTH: 2,000VAC OPERATING/STORAGE TEMPERATURE: -25°C to 55°C TRAVEL: 1.50mm DUST/MOISTURE PROTECTION: IP67 CONTACT ARRANGEMENT: SPST Off-(On) ACTUATION FORCE: 4 N PANEL THICKNESS: 1-6mm MOUNTING NUT TORQUE: 5-14Nm
