PP2 Series Push-pull Pushbutton Detector Switch

PP2 Series Push-pull Pushbutton Detector Switch

The PP2 Series pushbutton detector switch is available as a push-pull or momentary pushbutton. It can act as a door interlock switch. There are various actuator and terminal options, with high power ratings and UL approvals at up to 16A and 1HP. The PP2 Series pushbutton detector switch is available with a 3/16 x .020 inch terminals (4.8mm x .80mm tabs). It has the ability to include both push and pull activation for manual maintenance. This push-pull pushbutton switch acts as a door interlock switch, and can be used in a variety of applications where a service technician needs to be able to turn on and off the machine while the technician is working on the back panel. This can include:

  • Kiosks
  • Slot machines or other gaming equipment
  • Commercial appliances
  • HVAC equipment
  • Security devices

FEATURES

  • Up to 16A, 125VAC, 1HP electrical rating
  • 13.5mm x 36mm panel cutout
  • 2 poles; push-pull or momentary pushbuttons

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

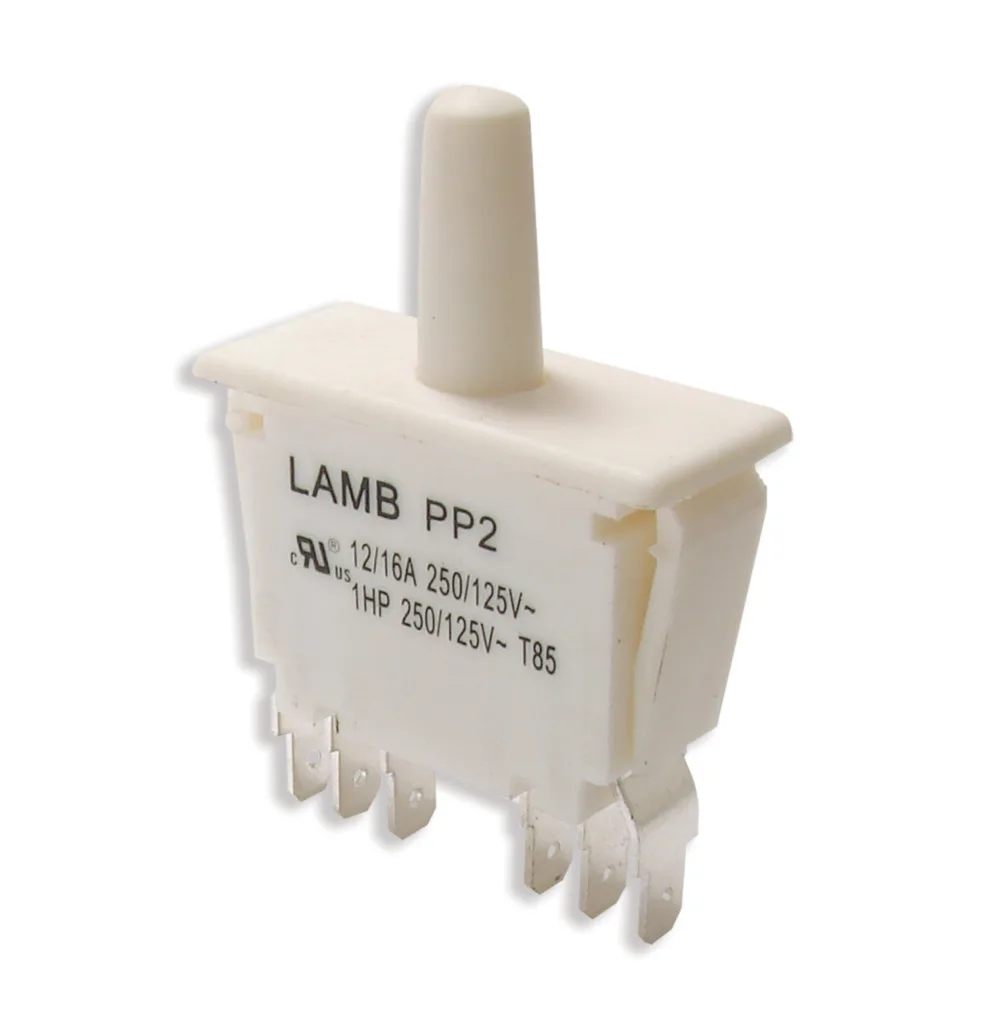

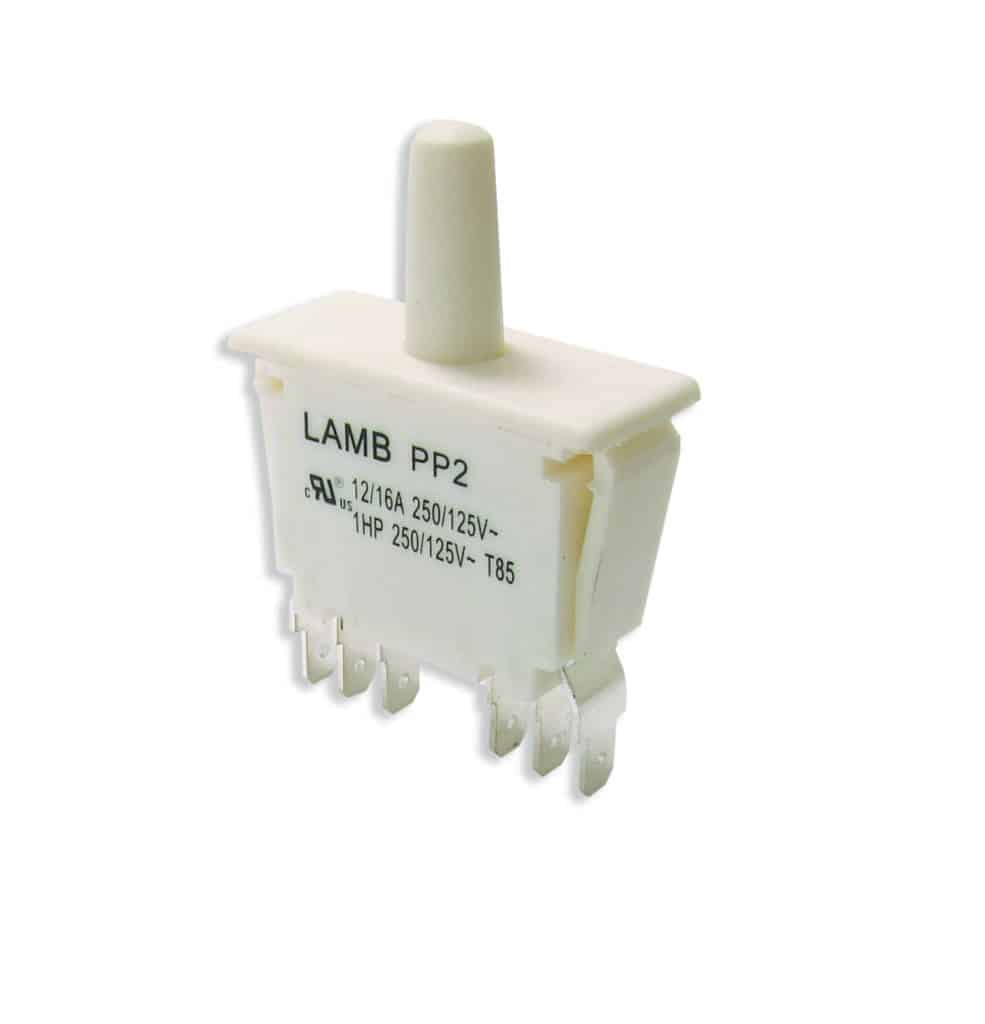

High current detector switch PP2 Series

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

PP2-1H7-2A2
PP2-1U7-2B2

Detail Specifications

ELECTRICAL RATING: Option 1: 10R(4)A @ 277VAC 5E4 [UL] Option 7: 16A @ 125VAC [cURus]; 12A @ 250VAC [cURus]; 1HP @ 125/250VAC [cURus] ELECTRICAL LIFE: 6,000 Cycles MECHANICAL LIFE: 50,000 Cycles CONTACT RESISTANCE: 10mΩ Max. INSULATION RESISTANCE: 100MΩ Min. OPERATING TEMPERATURE: 0°C to 85°C PANEL CUTOUT: 13.5mm x 36mm FUNCTION: DPDT, On-(On) or On1-On2-(On2)
