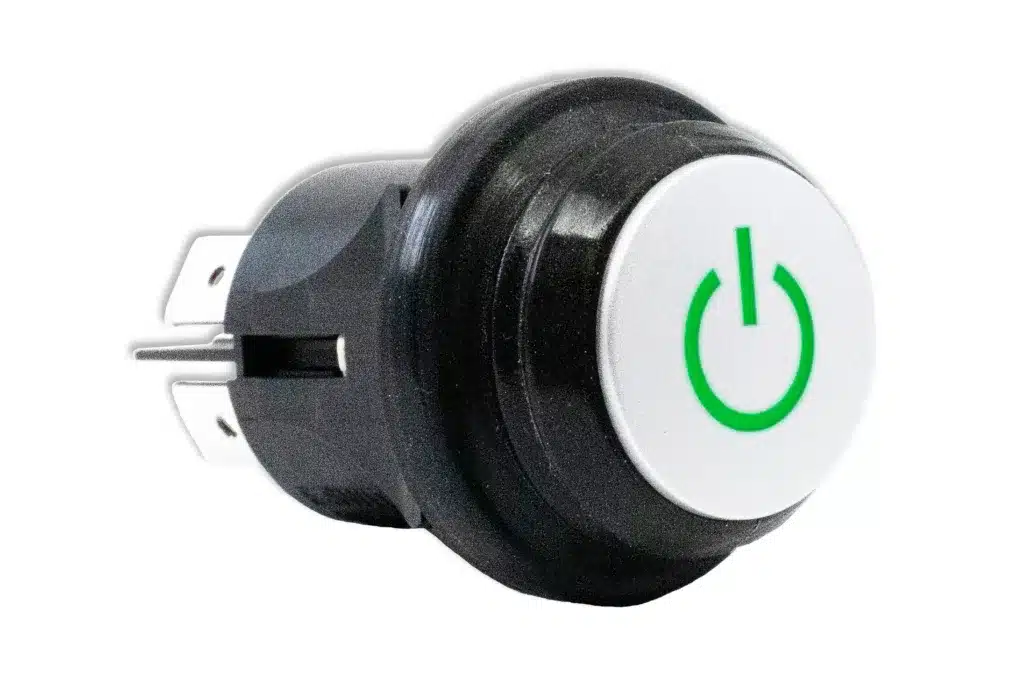

PB66 Series Illuminated Pushbutton Switch

PB66 Series Illuminated Pushbutton Switch

  • 25mm cutout size
  • High current pushbutton
  • Contact Rating: 16(16)A 127VAC, UL Certified
  • Electrical Life: 50,000 cycles
  • IP66 rated for dust and moisture protection
  • Illumination options
  • Power symbol illuminated or laser etched
  • Multiple illumination options
  • 50,000 cycle electrical life
  • Storage Temperature: -25°C to 85°C
  • Operating Temperature: 0°C to 55°C
  • DPST Off-On Latching

PB66 Series Illuminated Pushbutton Switch

decoration Best switches pushbutton anti-vandal 2024

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Best switches pushbutton anti-vandal 2024

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

PB66EE2CR6P31
PB66EE2CR6N

Detail Specifications

  • CONTACT ARRANGEMENT: DPDT Off-On Latching
  • ELECTRICAL RATING: 16(16)A @ 127VAC, UL
  • CONTACT RESISTANCE: 50mΩ Max.
  • INSULATION RESISTANCE: 2MΩ Min. @ 500VDC
  • DIELECTRIC STRENGTH: 1,300VAC min. for 1 minute
  • ELECTRICAL LIFE: 50,000 Cycles
  • OPERATING TEMPERATURE: 0°C to 55°C
  • STORAGE TEMPERATURE: -25°C to 85°C
  • ACTUATION FORCE: 13 N
  • PANEL THICKNESS: 0.7mm to 2.50mm MAX.
  • MOISTURE PROTECTION: IP66
