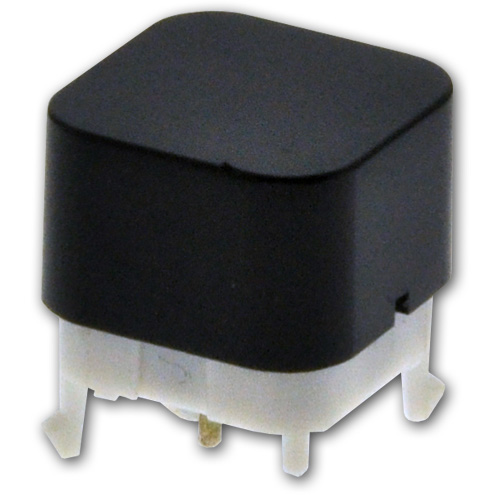

PB300 Series Long Travel Pushbutton Switch
PB300 Series Long Travel Pushbutton Switch
- SPST or SPDT/Double Action
- Double action: first circuit closes mid-travel, second at full travel
- Long travel (2.0mm full), momentary pushbutton
- High actuation force (ST: 490 grams; DT: 600 grams first position and 1,150 grams second position)
- Firm tactile response
- Operating Temperature: -40°C to +95°C
- Electrical Rating: 30mA @ 28VDC
- Life Expectancy: 20,000 cycles
PB300 Series Long Travel Pushbutton Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 30mA @ 28 VDC
- ELECTRICAL LIFE: 20,000 Cycles
- CONTACT RESISTANCE: 50mΩ Max. Initial
- INSULATION RESISTANCE: 10GΩ Min. @ 1000VDC
- DIELECTRIC STRENGTH: 500VAC for 1 minute
- OPERATING TEMPERATURE: -40°C to 95°C
- STORAGE TEMPERATURE: -40°C to 95°C
- FULL TRAVEL: 2.0mm
- CONTACT ARRANGEMENT: SPST, SPDA
- ACTUATION FORCE: ST: 490 grams; DT 1st position: 600 grams; DT 2nd position: 1150 grams
