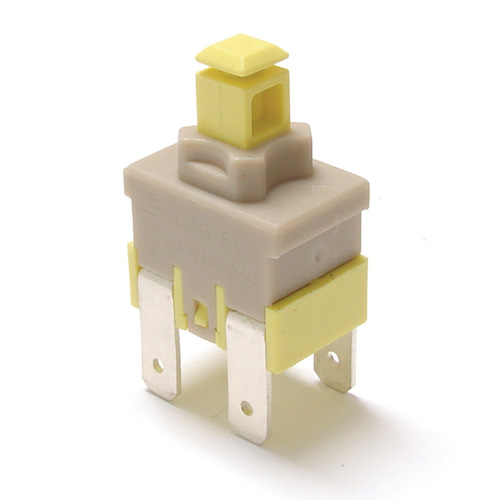

PA5 Series Power Pushbutton Switch
PA5 Series Power Pushbutton Switch
- High power rating: 16A 125/250VAC; UL, cUL
- Operates in temperatures ranging from -20 to +125°C
- SPST or DPST circuits; maintained (latching) or momentary pushbuttons
- Durable, robust and economical
- Easily customized actuator
- Engineered for use as a foot switch
- Popular industry design
- Terminal options include PCB pins, solder or tabs
PA5 Series Power Pushbutton Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 16A 125/250VAC; UL, cUL
- OPERATING/STORAGE TEMPERATURE: -20°C to 125°C
- ELECTRICAL LIFE: 10,000 Cycles
- CONTACT RESISTANCE: 20mΩ Min. at 1A 5VDC
- INSULATION RESISTANCE: 100MΩ Min. at 500VDC
- DIELECTRIC STRENGTH: 1,000VAC for 1 Minute
