PA4 Series Illuminated, Power Pushbutton Switch

PA4 Series Illuminated, Power Pushbutton Switch

The PA4 Series illuminated, power pushbutton switch is durable, robust, and economical. It fits the popular 13mm x 19mm panel mount cutout and has six terminal options including PC board pins, solder, and tabs. The PA4 Series pushbutton switch has high power ratings, comes in both standard and water resistant versions, and features full illumination options. You can also choose from eight actuator marking options for your power pushbutton switch to designate its function.

FEATURES

  • Water resistant version with IP54 ingress protection rating
  • cURus and ENEC power rated
  • 13mm x 19mm panel cutout
  • Full illumination options

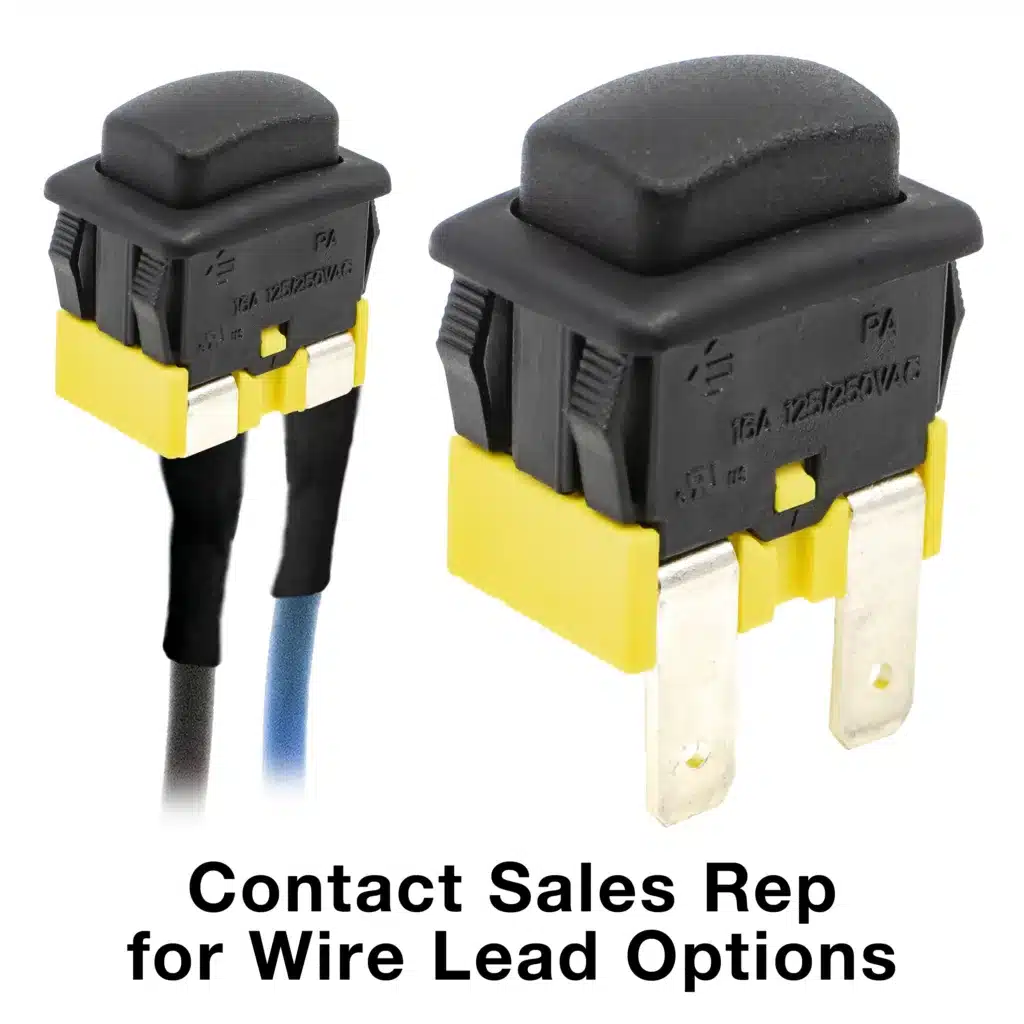

Pa4 Wire

PA4 Series Illuminated, Power Pushbutton Switch

decoration Pa4 Wire

Industry Utilization:

CERTIFICATIONS

Rohs Logo Reach Logo UL Logo

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Pa4 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Links

Most Common Configurations

PA414C1100
PA512C

Detail Specifications

ELECTRICAL RATING: Option C: 16A @ 125/250VAC [UR, cUR, CSA]; 16(4)A @ 250V ~ 1E4, T125/55 [ENEC] Option J: 16A @ 125/250VAC [UR, cUR, CSA]; 16(8)A @ 250V ~ 1E4, T125/55 [ENEC] OPERATING/STORAGE TEMPERATURE: -20°C to 65°C [UR, cUR, CSA]; -20°C to 125°C [ENEC] ELECTRICAL LIFE: 10,000 Cycles CONTACT RESISTANCE: 20mΩ Min. at 1A 5VDC INSULATION RESISTANCE: 100MΩ Min. at 500VDC DIELECTRIC STRENGTH: 1,000VAC for 1 Minute / MATERIALS / UPPER BODY: Polyamide 6/6, UL94 V-2 LOWER BODY: PBT, UL94 V-2 ACTUATOR: Polyamide 6/6, UL94 V-2; Polycarbonate, UL94 V-2 CONTACTS: Silver Alloy TERMINALS: Silver Plated Copper
