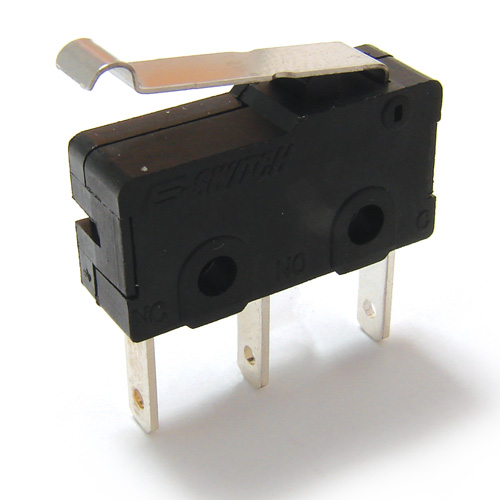

MS Series Miniature Snap Action Switch

MS Series Miniature Snap Action Switch

Electrical Ratings:
- Gold - 0.4VA, 20V max. (AC or DC)
- Silver - 5A, 125/250VAC; UL, cUL, VDE
SPDT or SPST-NO circuit; momentary function
Chassis mount, through hole, or through hole right angle mounting options
Solder lug, quick connect, PCB pin, or right/left angled PCB pin termination options
Pin plunger, lever, roller, or simulated roller actuator options
Between 10gf - 295gf operating force options
1,000,000 cycles mechanical life
Gold or silver contact material
-25°C to 85°C operating temperature

MS Series Miniature Snap Action Switch

Industry Utilization:

CERTIFICATIONS

CATEGORIES

Snap Action

Series Configurator

Series: Operating Temperature: Current Rating: Actuator: Operating Force: Termination: Circuit:

* If you need further customization let us know and we'll see how we can help!

Product Number:

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Links

Most Common Configurations

MS085R104F065S1A
MS0850511F035P1A
MS0850503F010S1A
MS0850502F020S1A
MS0850501F045S1A
MS0850505F045S1A
MS0850502F030P1A
MS0850505F065C1A
MS0850504F020S1A
MS0850504F035P1A
MS0850503F010C1A
MS0850500F080S1A
MS0850506F035P1A
MS085R101F070S1A

Detail Specifications

ELECTRICAL RATING: Gold: 0.4VA Max. at 20VDC or VAC Max.; 5A at 125/250VAC [UL, CUL], VDE
ELECTRICAL LIFE: 50,000 Cycles Minimum
MECHANICAL LIFE: 1,000,000 Cycles Typical
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 1,000VAC for 1 Minute
OPERATING/STORAGE TEMPERATURE: -25°C to 85°C
OPERATING FORCE: See Chart on Data Sheet
/ MATERIALS /
- SWITCH HOUSING: High Temperature PBT (UL94-V0)
- ACTUATOR BUTTON: High Temperature PBT (UL94-V0)
- CONTACTS: Silver (std) or Gold
- TERMINALS: Copper Alloy, Plated
