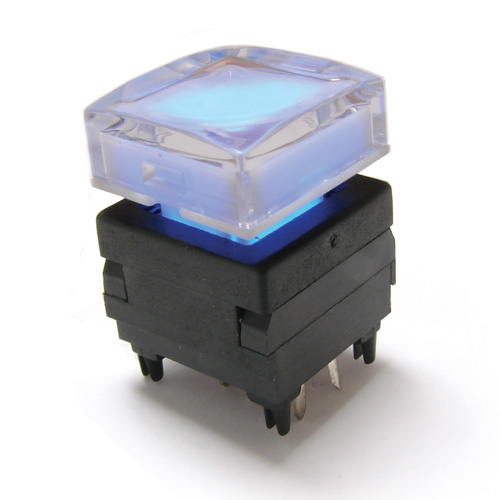

LP6 Series Illuminated Pushbutton with Multiple LED Color Options
LP6 Series Illuminated Pushbutton with Multiple LED Color Options
- Single pole or double pole functions
- 15mm square, sculptured cap
- Multiple color options including RGB color
- Life expectancy of 200,000 cycles
- Through-hole mounting design
- Full LED illumination options
- SPST, DPST; momentary functions
- Electrical Rating: 12mA @ 12VDC
- Travel: 2.20mm
- Operating/Storage Temperature: -20°C to 70°C
- Operating Force: 150gf for SPST, 200gf for DPST
LP6 Series Illuminated Pushbutton with Multiple LED Color Options
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 12mA @ 12VDC for both SPST and DPST
- ELECTRICAL LIFE: 200,000 Cycles
- CONTACT RESISTANCE: 50mΩ Initial Max.
- INSULATION RESISTANCE: 100MΩ Min. at 500VDC
- DIELECTRIC STRENGTH: 500VAC
- OPERATING FORCE: SPST: 150gf ± 100gf; DPST: 200gf ± 100gf
- TRAVEL: 2.20 ± 0.2mm
- OPERATING TEMPERATURE: -20°C to 70°C
- STORAGE TEMPERATURE: -20°C to 70°C
