LP4 Series Illuminated Pushbutton Switch

The LP4 Series illuminated pushbutton switch performs either latching or momentary functions and includes right angle or vertical PC mount options. There are multiple bezel and button design choices and six LED color options. These momentary pushbuttons feature 1.5mm of actuator travel while the latching travel is just 1.0mm. Both versions require 250gf of operating force to actuate and have electrical ratings of 100mA, 30VDC. These pushbutton switches operate in temperatures ranging from -20 to 70°C and have a life expectancy of 50,000 cycles. Applications for this illuminated pushbutton switch include:

  • Telecommunications
  • Consumer electronics
  • Audio/visual
  • Medical equipment
  • Testing/instrumentation
  • Computer/peripherals

FEATURES

  • Multiple bezel and button design choices
  • Right angle and vertical through-hole mounting design
  • Full LED illumination options
  • 2 poles; momentary and maintained (latching) functions

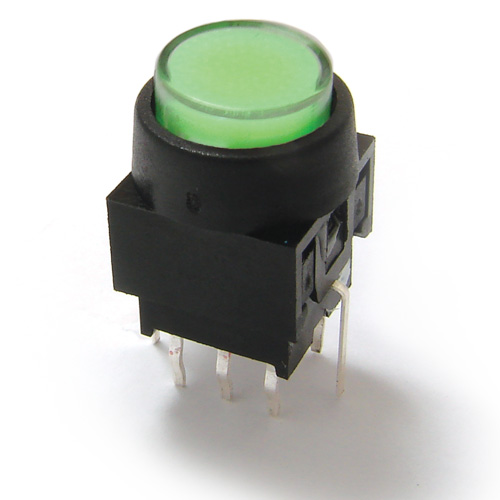

LP4 Series Illuminated Pushbutton Switch

decoration Lp4 Series

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Lp4 Series

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

LP4EE1PBATG
LP4OA1PBBTG
LP4OA1PBBTR

Detail Specifications

ELECTRICAL RATING: 0.1A @ 30VDC MECHANICAL LIFE: 50,000 Cycles CONTACT RESISTANCE: 50mΩ Initial Max INSULATION RESISTANCE: 100MΩ Min. at 500VDC DIELECTRIC STRENGTH: 500VAC OPERATING FORCE: 250gf ± 100gf TRAVEL: 1.0mm ± 0.3mm Latching; 1.5mm ± 0.3mm Full OPERATING/STORAGE TEMPERATURE: -20°C to 70°C
