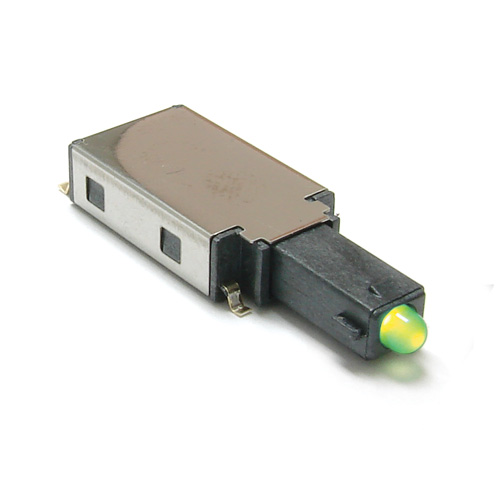

LP37 Series Illuminated, Right Angle Pushbutton Switch
LP37 Series Illuminated, Right Angle Pushbutton Switch
- Electrical Rating: 10mA @ 20mVDC to 250mA @ 50VDC
- Right angle, surface mount design
- Multiple LED illumination options (red, green or yellow)
- SPDT, momentary pushbuttons
- Long travel of 5.1mm full, 2.95mm switching
- Operating/Storage Temperature: -30°C to +85°C
- Mechanical Life: 30,000 cycles
- Gullwing termination
- 9.60mm long plunger actuator
LP37 Series Illuminated, Right Angle Pushbutton Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 20mVDC to 50VDC; 10mA to 250mA
- OPERATING LIFE: 30,000 Cycles
- CONTACT RESISTANCE (Initial Max): 50mΩ Max.
- CONTACT ARRANGEMENT: SPDT
- INSULATION RESISTANCE: 1,000MΩ Min. at 100VDC
- DIELECTRIC STRENGTH (1 min.): 250VAC
- OPERATING FORCE: 250gf ± 100gf
- TRAVEL: Full: 5.1mm ± 0.5mm; Switching: 2.95mm Nom.; Latching: 3.3mm Nom.
- OPERATING/STORAGE TEMPERATURE: -30°C to 85°C
