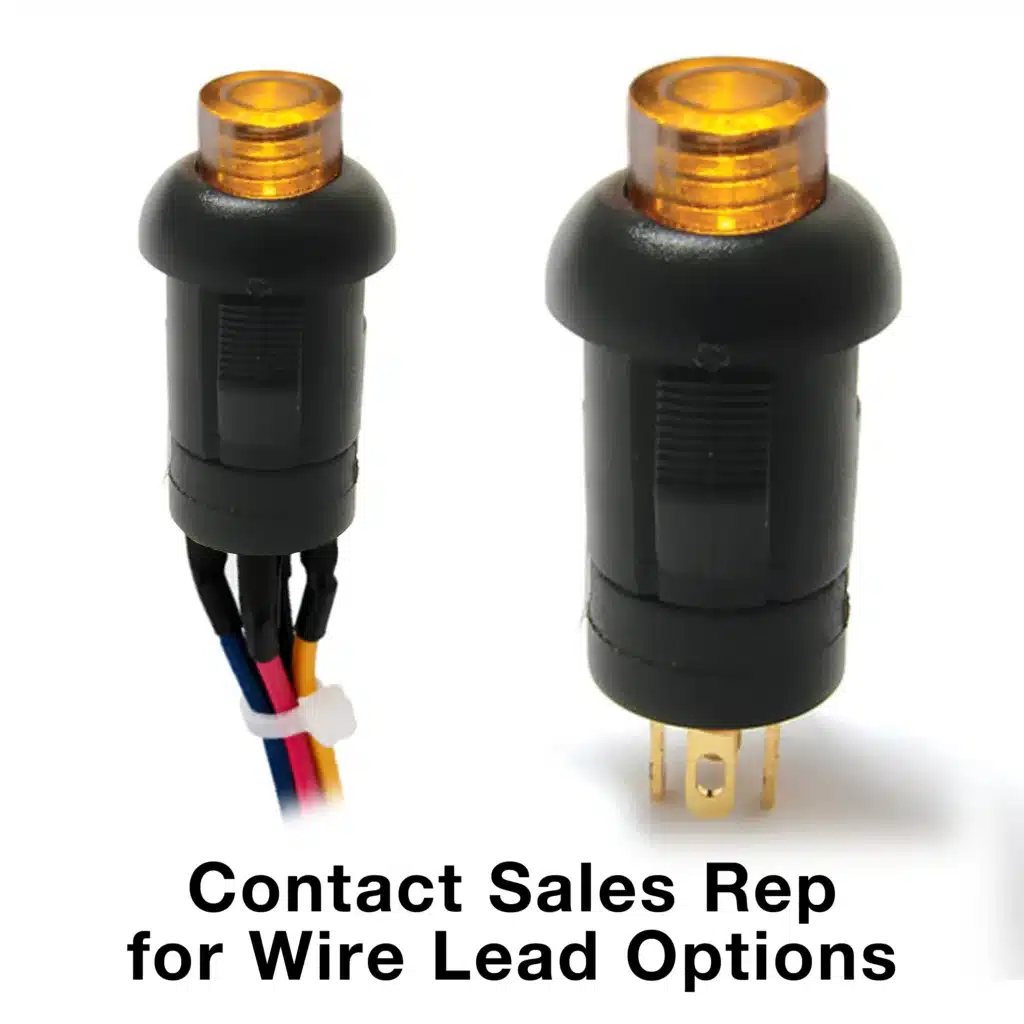

LP1 Series Illuminated, Round Pushbutton Switch
LP1 Series Illuminated, Round Pushbutton Switch
- Panel mount, round cutout of 8mm
- 5.4mm cap size
- Aesthetic look
- Full LED illumination options in multiple colors (blue, green, red, white or yellow)
- Storage/Operating Temperature: -40°C to 85°C
- Contact Rating: 100mA @ 30VDC
- Mechanical/Electrical Life: 50,000 cycles
- SPST, momentary pushbuttons
- Travel: 1.8mm
- Operating Force: 250gf
LP1 Series Illuminated, Round Pushbutton Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 100mA @ 30VDC
- ELECTRICAL LIFE: 50,000 Cycles
- CONTACT RESISTANCE: 50mΩ Initial Max.
- INSULATION RESISTANCE: 100MΩ Min. at 500VDC
- DIELECTRIC STRENGTH: 500VAC
- ACTUATION FORCE: 250gf ± 100gf
- TRAVEL: 1.8mm ± 0.3mm
- OPERATING TEMPERATURE: -40°C to 85°C
- STORAGE TEMPERATURE: -40°C to 85°C
