LA Series Sealed, Illuminated Pushbutton Switch

LA Series Sealed, Illuminated Pushbutton Switch

The LA Series sealed, illuminated pushbutton switches protect against dust and moisture at an IP65 rating. These sealed switches come with circuits up to four poles and as pilot, maintained (latching), or momentary pushbuttons. They feature a flush panel mount configuration with circular panel cutouts sized 22.0mm, 25.5mm, and 30.5mm in diameter. The LA Series has a variety of illumination options, with LED, neon, or incandescent lamps available. Lamp colors include red, green, yellow, or none, and lens colors include red, green, blue, white, orange, and yellow. Applications for these sealed, illuminated pushbutton switches include:

  • Telecommunications
  • Networking
  • Computers
  • Instrumentation
  • Performance audio
  • External hard drives

FEATURES

  • IP65 rated for protection from dust and moisture
  • Power rated for direct and alternating currents
  • Signal light illumination with LED, neon, or incandescent lamps in multiple colors
  • Momentary, maintained (latching), and pilot functions

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

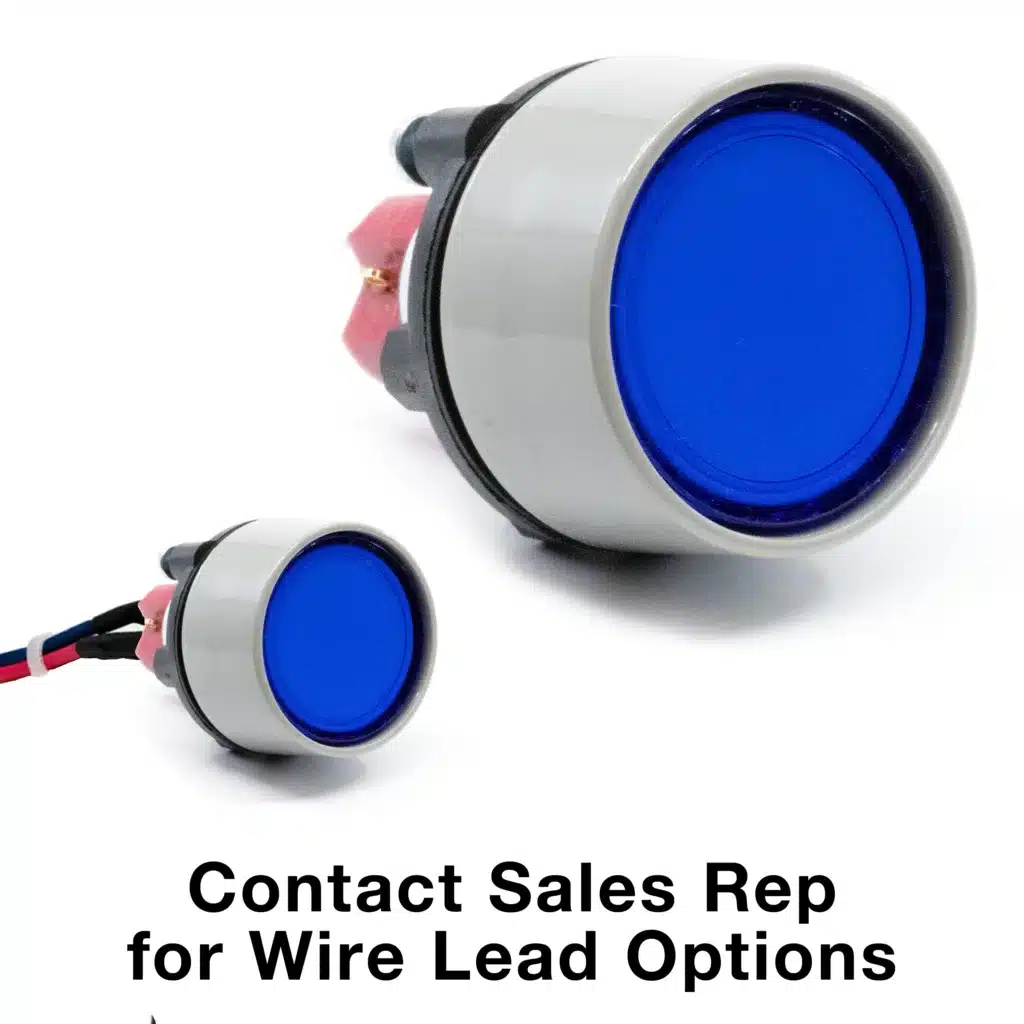

La Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

ELECTRICAL RATING: 5A @ 250VAC; 8A @ 125VAC; 0.2A @ 250VDC; 6A @  24VDC MECHANICAL LIFE: ≥100,000 Cycles ELECTRICAL LIFE: ≥50,000 Cycles CONTACT RESISTANCE: 100mΩ Max. Typical, Initial at 2-4VDC INSULATION RESISTANCE: >1,000MΩ DIELECTRIC STRENGTH: >1,500V for 1 Minute; >3,000V Between Poles ACTUATION FORCE: 300g/pole OPERATING/STORAGE TEMPERATURE: -20°C to 55°C DUST/MOISTURE PROTECTION: IP65
