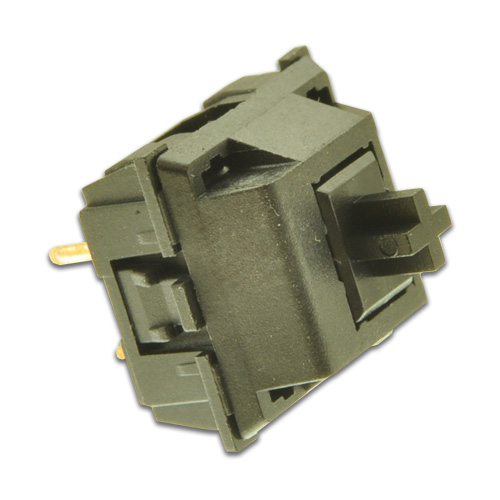

KS1100 Series Pushbutton Switch with Keyboard Functionality
KS1100 Series Pushbutton Switch with Keyboard Functionality
- Keyboard functionality
- Contact Rating: 10mA @ 12VDC
- SPST; momentary function
- Travel: 4.00 max. travel; 2.0mm to electrical make
- Electrical Life: 50,000,000 cycles
- Low operating force (60gf)
KS1100 Series Pushbutton Switch with Keyboard Functionality
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 10mA @ 12VDC Max
- CONTACT RESISTANCE: 100mΩ Max Initial
- INSULATION RESISTANCE: 100MΩ Min. @ 100VDC
- DIELECTRIC STRENGTH: 1,000VAC for 1 Minute
- ELECTRICAL LIFE: 50,000,000
- OPERATING TEMPERATURE: -10°C to 70°C
- STORAGE TEMPERATURE: -10°C to 70°C
- CONTACT ARRANGEMENT: SPST
- TRAVEL: 2.0mm to Electrical MakE; 4.0mm Max Travel
- ACTUATION FORCE: 60gf
