  • 0.488" (12.40mm) length
  • 0.5N/cm operating force
  • 10,000 cycle life typical
  • Silver contact material
    • " />

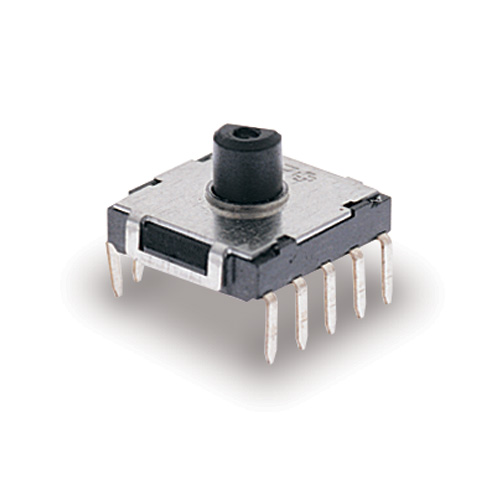

    KC1901 Series Rotary Switch

    KC1901 Series Rotary Switch

    • Electrical rating: 100mA, 16VDC
    • Through hole mounting design
    • SP9T - Single pole, 9 positions
    • Rotary with shaft actuator, 9.8mm height off pcb
    • 0.100" (2.54mm), Full Pitch
    • 0.488" (12.40mm) length
    • 0.5N/cm operating force
    • 10,000 cycle life typical
    • Silver contact material

    Kc1901 Series

    KC1901 Series Rotary Switch

    decoration Kc1901 Series

    Industry Utilization:

    CERTIFICATIONS

    Rohs Logo Reach Logo

    CATEGORIES

    Series Configurator

    * If you need further customization let us know and we'll see how we can help!

    Product Number:

    Kc1901 Series

    * Product image not available for this configuration.

    Displaying general product image that doesn't necessarily match configuration.

    Links

    Most Common Configurations

    KC1901A

    Detail Specifications

    • ELECTRICAL RATING: 100mA @ 16VDC
    • MECHANICAL LIFE: 10,000 Cycles Typical
    • CONTACT RESISTANCE: 50mΩ Initial at 2-4 VDC, 100mA.
    • INSULATION RESISTANCE: 100MΩ Min.
    • DIELECTRIC STRENGTH: 1000V RMS Max. at Sea Level
    • OPERATING FORCE: 0.5N/cm
    • / MATERIALS /
      • COVER: Stainless Steel
      • CONTACT: Silver-Plated Copper Alloy
      • TERMINALS: Silver-Plated Copper Alloy
