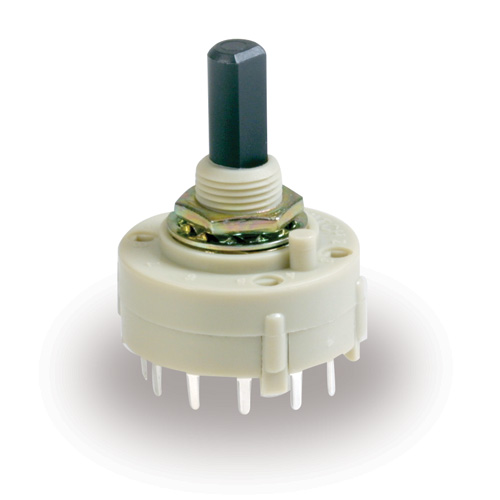

KC Series Rotary Switch

KC Series Rotary Switch

  • Electrical rating: 350mA, 125VAC;  150mA, 250VAC
  • Panel mount, or Panel mount Through hole mounting design
  • Solder lug or PCB pin termination options
  • 1 to 4 poles; 1 to 12 positions
  • No stop option
  • Flat, round, or slotted actuator
  • Many actuator length options
  • Non-shorting break-before-make (BBM), or shorting make-before-break (MBB)
  • Silver or gold flash contact material
  • Standard or metric bushing
  • 10,000 cycle life typical

Kc Series

KC Series Rotary Switch

decoration Kc Series

Industry Utilization:

CERTIFICATIONS

Rohs Logo Reach Logo

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Kc Series

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Links

Most Common Configurations

KC26A13.001NPS
KC52A10.001NPF
KC17A10.001NPF
KC43A30.001NPS
KC15A9.501NPF
KC52A30.001NPS
KC52A10.001NPS
KC26A30.001NPS
KC58A9.501NLS
KC10A9.501NPS
KC34A30.001NPS
KC14A10.001NPS
KC26A9.501NPF
KC18A9.501NPS

Detail Specifications

  • ELECTRICAL RATING: 350mA @125VAC; 150mA @ 250VAC
  • LIFE EXPECTANCY: 10,000 Cycles Typical
  • CONTACT RESISTANCE: 50mΩ Initial 2-4VDC, 100mA
  • INSULATION RESISTANCE: 100MΩ Min.
  • DIELECTRIC STRENGTH: 500V RMS Max. at Sea Level
  • OPERATING FORCE: 0.8 ± 0.3kg-cm
  • / MATERIALS /
    • HOUSING, BASE, SHAFT: Glass Filled Nylon
    • MOVING AND FIXED CONTACT: Silver Plated Copper Alloy; Gold Flash Over Silver Plate
    • HARDWARE: Nut: Zinc, Nickel Plated; Lock washer: Steel, Zinc Plated; Stop Ring: Brass, Nickel Plated
