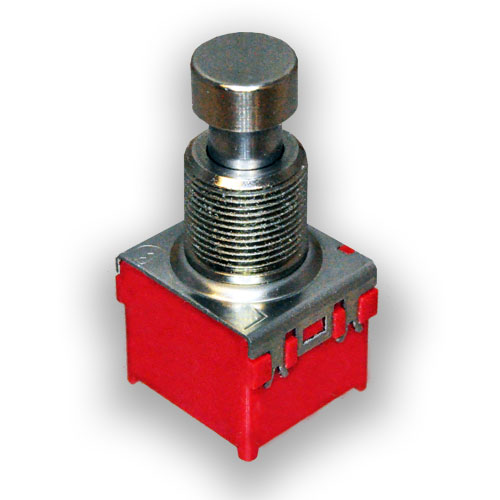

FS5700 Series Pushbutton Foot Switch

FS5700 Series Pushbutton Foot Switch

The FS5700 Series foot-actuated pushbutton switch comes with your choice of SPDT, DPDT, or 3PDT circuits. You can also choose PC board pin termination or a solder lug panel mount option. This pushbutton foot switch can be customized to perform either momentary or alternate functions. The FS5700 Series pushbutton foot switch has a high actuation force which depends on the circuit and ranges from 1,700gf up to 3,000gf, The travel on the foot switch actuator ranges from 2.7mm to 5mm. The FS5700 Series pushbutton switches operate in temperatures ranging from -10 to 70°C and have a life expectancy of 30,000 cycles. They have electrical ratings of 1A, 9VDC. Common applications for the FS5700 series pushbutton foot switch include:

  • Home appliances
  • Floor care appliances
  • Flight simulation gaming controls
  • Industrial controls operated via foot switch
  • Medical and dental applications
  • Audio/visual equipment


  • SPDT, DPDT, or 3PDT circuits
  • Momentary or alternate action functions
  • High actuation force
  • PC board mount or panel mounting options



Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

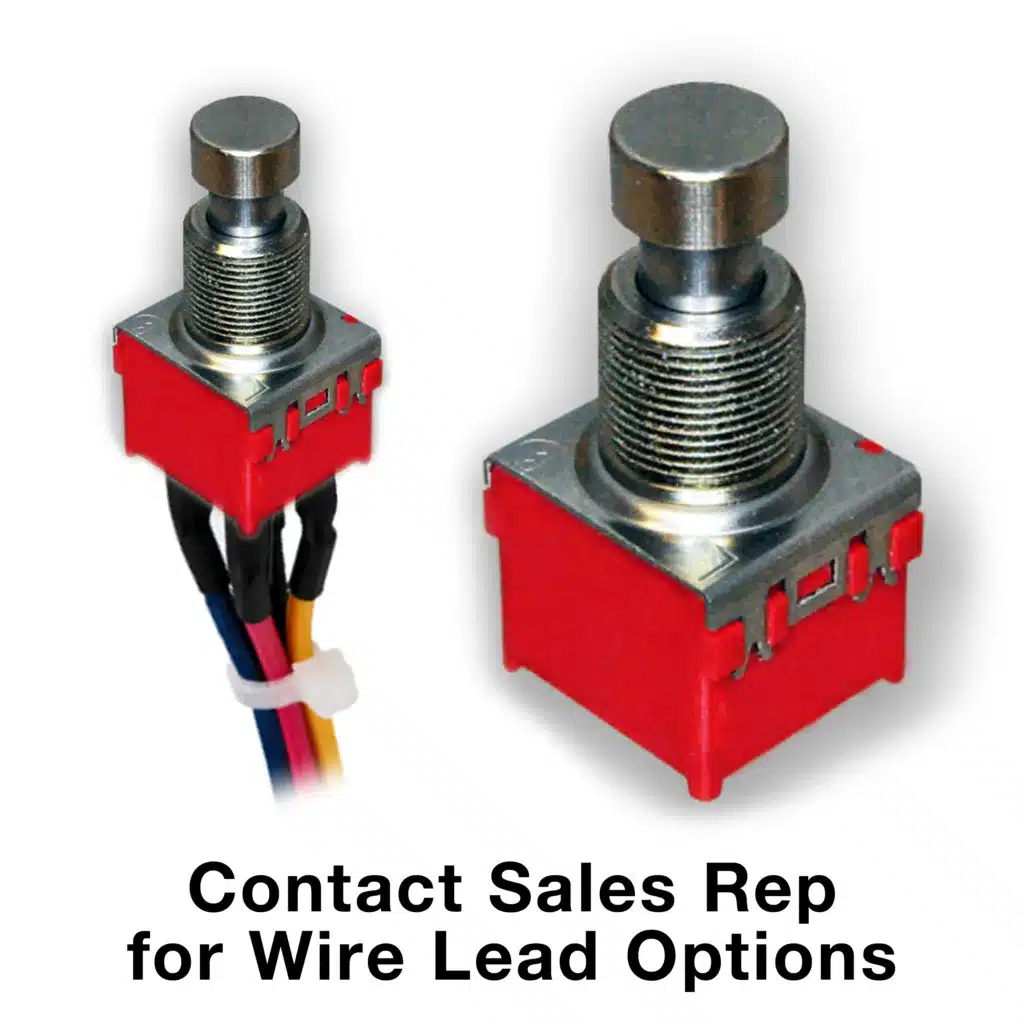

Fs5700 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

Detail Specifications

ELECTRICAL RATING: 1A @ 9VDC ELECTRICAL LIFE: 30,000 Cycles CONTACT RESISTANCE: 50mΩ Initial INSULATION RESISTANCE: 100MΩ @ 500VDC DIELECTRIC STRENGTH: 1000V RMS OPERATING TEMPERATURE: -10°C to 70°C STORAGE TEMPERATURE: -10°C to 70°C FULL TRAVEL: SP & DP: 2.7mm; 3P: 5.0mm CONTACT ARRANGEMENT: SPDT, DPDT or 3PDT ACTUATION FORCE: Single-pole momentary: 1700gf; Single-pole alternate action: 1000gf; Double-pole momentary: 2500gf; Double-pole alternate action: 1600gf; 3-pole alternate action: 3000gf PANEL THICKNESS: 8mm Max.
