EGJ1210 Series Slide Switch
EGJ1210 Series Slide Switch
- Surface mount and through hole PC board design; right angle options
- 1.60mm travel
- Compact design
- 250 gram force
- SPDT function
- Tape and reel packaging (gull wing only)
- Operating/Storage Temperature: -40°C to +85°C
- Electrical Rating: 300mA @ 24VDC
- Electrical Life: 2,000 cycles
EGJ1210 Series Slide Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:

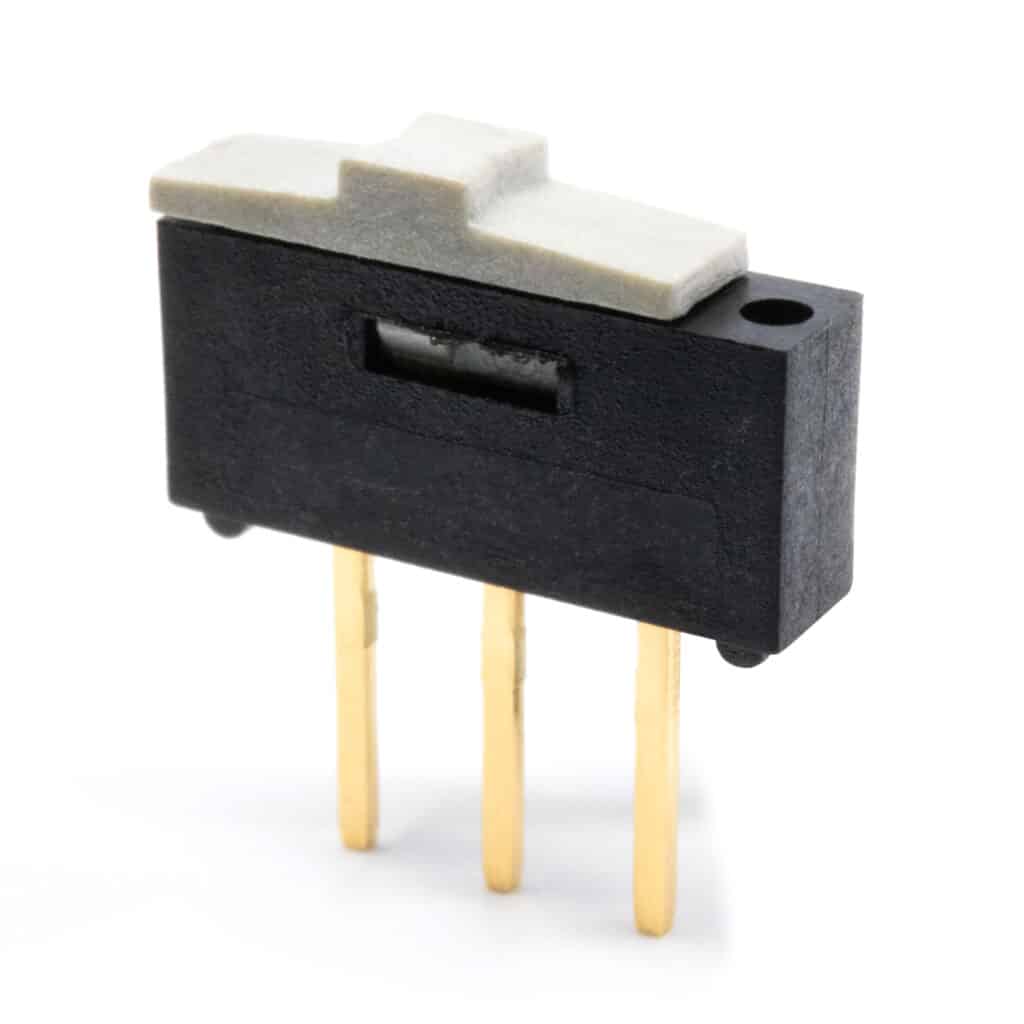

* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- CONTACT RATING: 300mA @ 24VDC
- ELECTRICAL LIFE: 2,000 Cycles
- MECHANICAL LIFE: 10,000 Cycles
- CONTACT RESISTANCE: 30mΩ Max
- INSULATION RESISTANCE: 10,000MΩ Min @ 500VDC
- DIELECTRIC STRENGTH: 500VAC for 1 Minute
- OPERATING TEMPERATURE: -40°C to +85°C
- STORAGE TEMPERATURE: -40°C to +85°C
- TRAVEL: 1.60mm
- CONTACT ARRANGEMENT: SPDT
