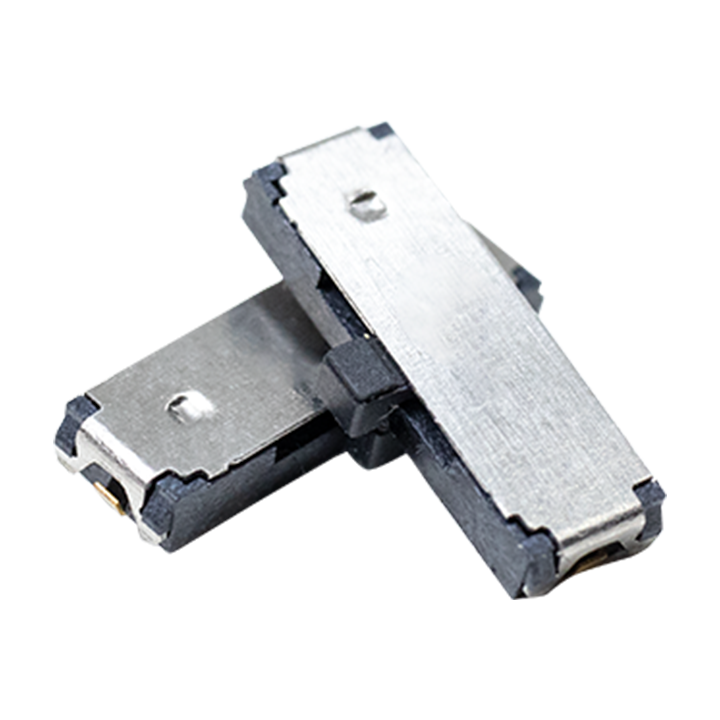

EG1312 Series Right Angle Slide Switch

EG1312 Series Right Angle Slide Switch

The EG1312 Series is a right-angle surface mount slide switch. It comes in an SP3T circuit function. The switch performs maintained functions in the left and center position, however, the right position performs only momentary functions. This uniqueness is what makes the EG1312 stand out. The package size is 9.9mm long, 3mm wide, and about 1.5 mm high above the PCB surface. This results in an ideal package size that is perfect for small handheld devices in applications such as remote controls and consumer electronics.

FEATURES

  • Surface mount PC board design
  • 1.50mm travel
  • Compact design
  • SP3T function

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Best slide switches 2024: Eg1312

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

ELECTRICAL RATING: 30mA @ 15VDC ELECTRICAL LIFE: 5,000 cycles Min. CONTACT RESISTANCE: 1Ω Max. INSULATION RESISTANCE: 1MΩ Min @ 250VDC DIELECTRIC STRENGTH: 100VAC OPERATING TEMPERATURE: -10°C to 60°C STORAGE TEMPERATURE: -25°C to 85°C TRAVEL: 1.50mm from each position to the next position CONTACT ARRANGEMENT: SP3T, 1-Pole ON-ON- (ON) ACTUATION FORCE: 150gf
