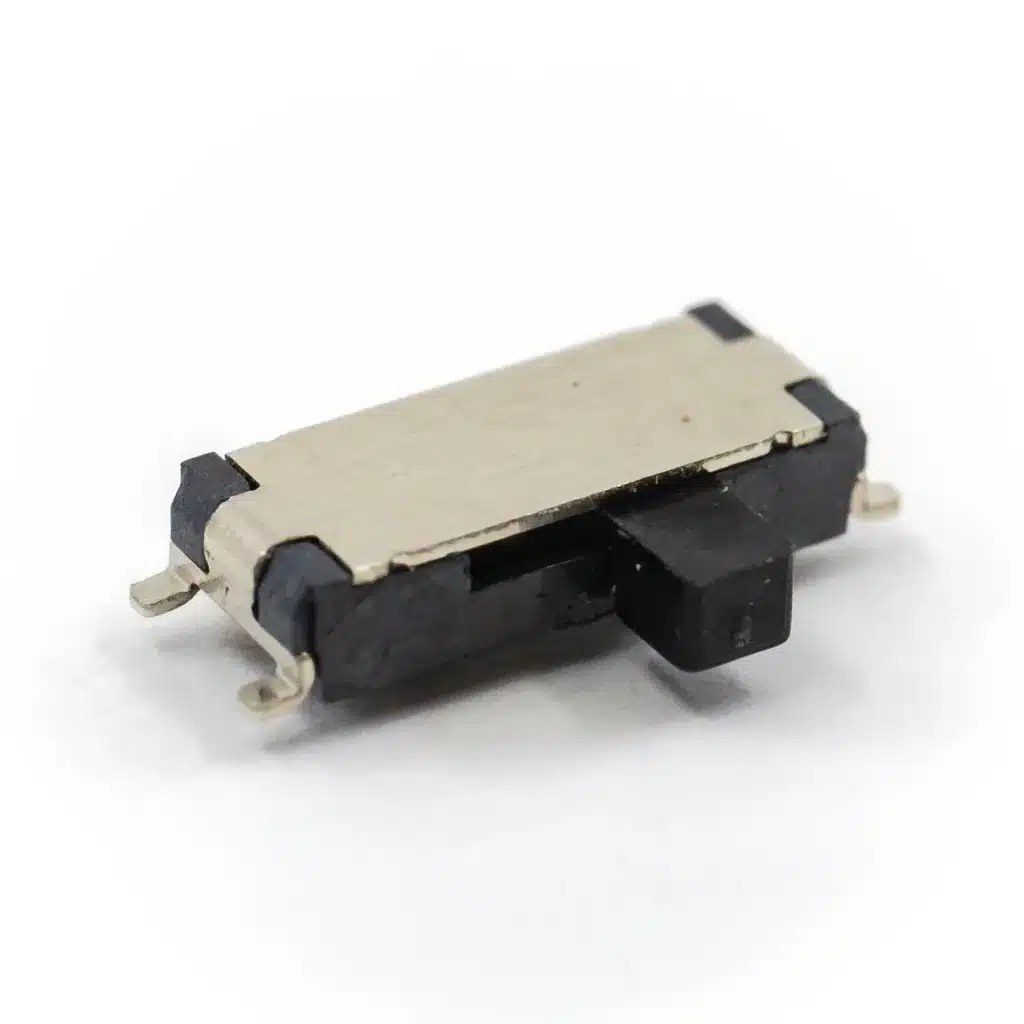

EG1215 Series SMT Right Angle Slide Switch
EG1215 Series SMT Right Angle Slide Switch
- 25mA @ 24VDC
- Surface mount right angle (SMT) design
- SPDT circuit; latching function
- Compact 2.60mm x 6.70mm size; 1.4mm height off pcb
- 1.50mm travel
- 150gf operating force
- 10,000 cycle life
- -20°C to 70°C operating temperature

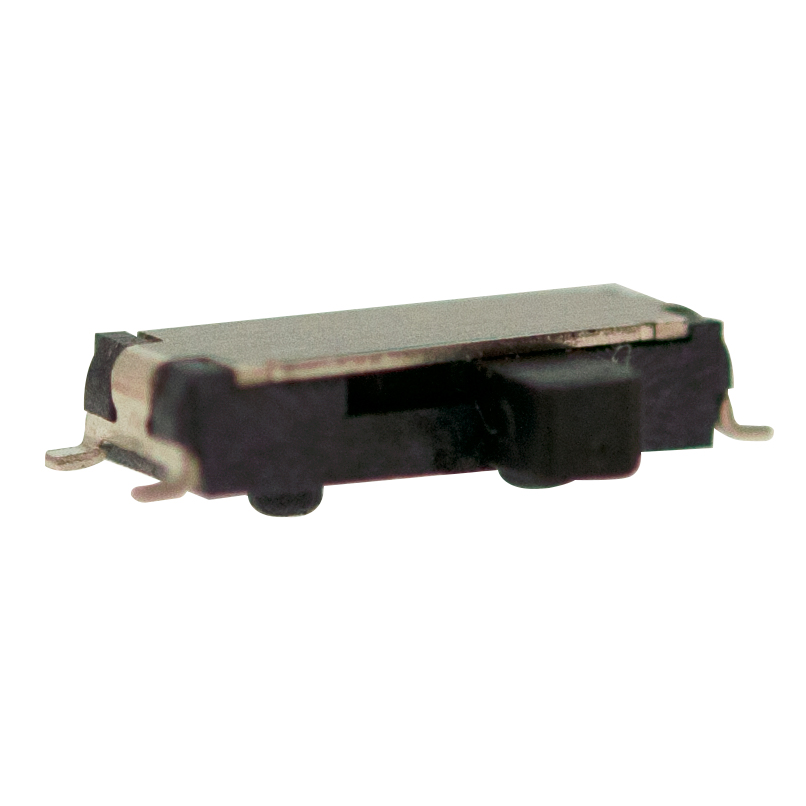

EG1215 Series SMT Right Angle Slide Switch
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 25mA @ 24VDC
- ELECTRICAL LIFE: 10,000 cycles
- CONTACT RESISTANCE: 70mΩ Max.
- INSULATION RESISTANCE: 1MΩ Min @ 100VDC
- DIELECTRIC STRENGTH: 100VAC for 1 Minute
- OPERATING TEMPERATURE: -20°C to 70°C
- STORAGE TEMPERATURE: -40°C to 85°C
- TRAVEL: 1.50mm
- CONTACT ARRANGEMENT: SPDT
- ACTUATION FORCE: 150±100gf
