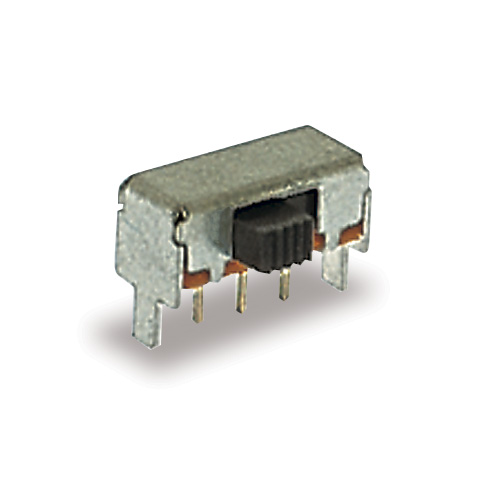

EG Series Subminiature Slide Switch
EG Series Subminiature Slide Switch
- 200mA @ 30VDC
- Panel mount and PC board mounting designs
- Up to 6 poles; up to 6 actuator positions
- Vertical and horizontal actuation options
- 10,000 cycle life min.
- -20°C to 70°C operating temperature
- Please look at the data sheet to see the full range of slide switches available.
EG Series Subminiature Slide Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: See Individual Specifications
- MECHANICAL LIFE: 10,000 Cycles Minimum
- CONTACTS: Silver Plate
- TIMING: See Individual Specifications
- INITIAL CONTACT RESISTANCE: 20mΩ Max.
- INSULATION RESISTANCE: 100MΩ Min.
- DIELECTRIC STRENGTH: 500VAC for 1 Minute Between Any Terminal and Frame
- OPERATING/STORAGE TEMPERATURE: -20°C to 70°C
