E100 Series Pushbutton Switch

E100 Series Pushbutton Switch

The E100 Series pushbutton switch is easy to operate with an eye-catching red actuator and multiple illumination options (LED, incandescent, neon), along with the required agency approvals. This emergency stop switch (E-Stop) has an IP65 rating, requires a high actuation force (2.0 kgf) and a pushlock turn to reset, making it perfect for harsh and rugged industrial-use environments.

The E100 Series has a 16mm cutout size with 5.0mm MAX panel thickness. The switch has an impressive mechanical life of 100,000 cycles minimum, an electrical life of 50,000 cycles minimum and operates from -25 to 55°C (with lamp) or -25 to 70°C (without lamp). There are three different function options: 1NC, 1NC+1NO, 1NC+1NC. With its electrical rating, life expectancy and overall dependability, this series is ideal for the following markets:

  • Kiosks
  • Electrical Housewares
  • Security Devices
  • Commercial Appliances
  • Industrial Controls
  • Medical Equipment

FEATURES

  • Easy operation
  • High actuation force
  • Multiple illumination options
  • Pushlock turn design to reset
  • 16mm cutout size
  • IP65 rated

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

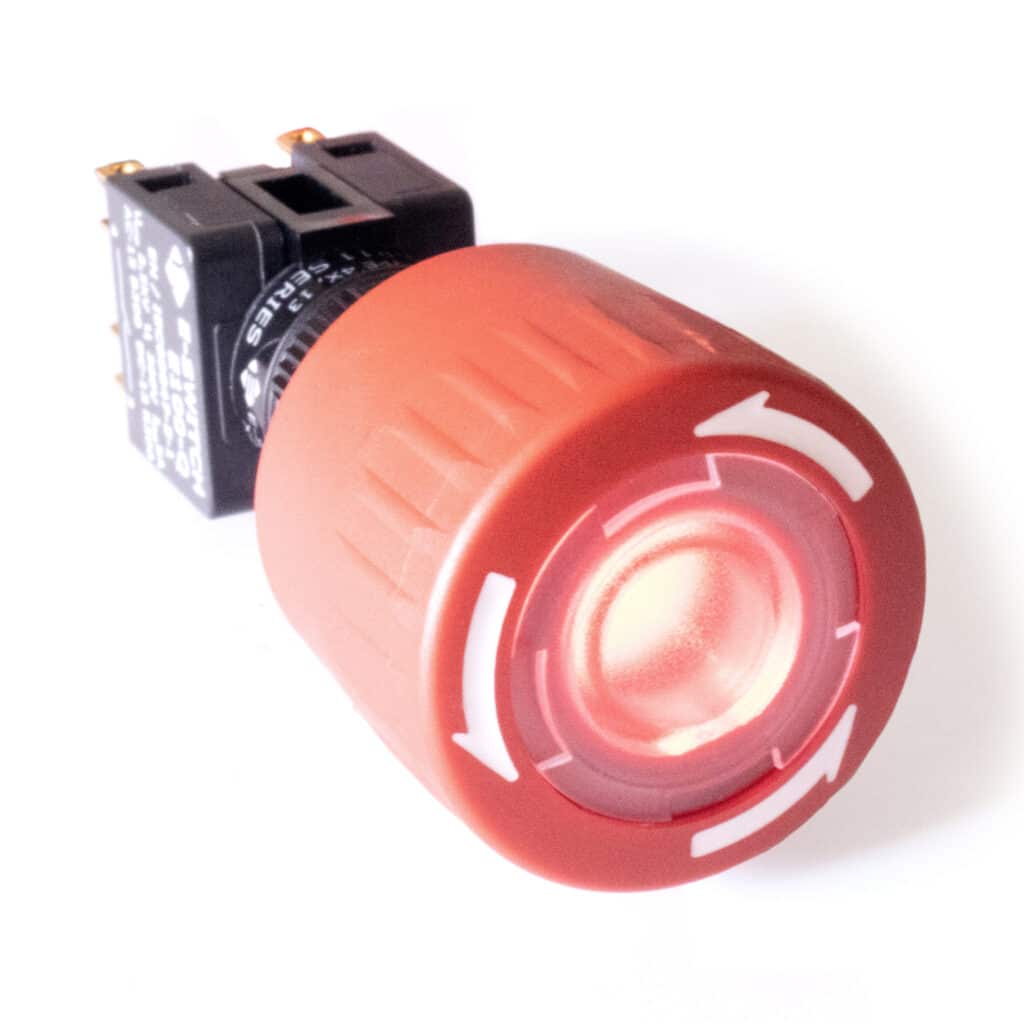

E100 R11 H1kr

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

Contact Arrangement: 1NC, 1NC+1NO, 1NC/1NC Contact Rating: 3A @ 125VAC, 1.5A @ 250VAC, 0.22A @ 125VDC, 0.11A @ 250VDC Agency Approvals: ANSI/UL508, TUV-SUD, EN 60947-5-1 : EN 60947-5-5 Contact Resistance: 50mΩ Max. (Initial) Insulation Resistance: 100 MΩ Min. @ 500VDC Dielectric Strength: 1,500VAC Electrical Life: 50,000 Cycles MIN Mechanical Life: 100,000 Cycles MIN Operating Temperature: -25°C to 55°C (with lamp) -25°C to 70°C (without lamp) Storage Temperature: -40°C to 85°C Actuation Force: 2.0 kgf Panel Thickness: 5.0mm MAX. Moisture Protection: IP65
