Cap Options

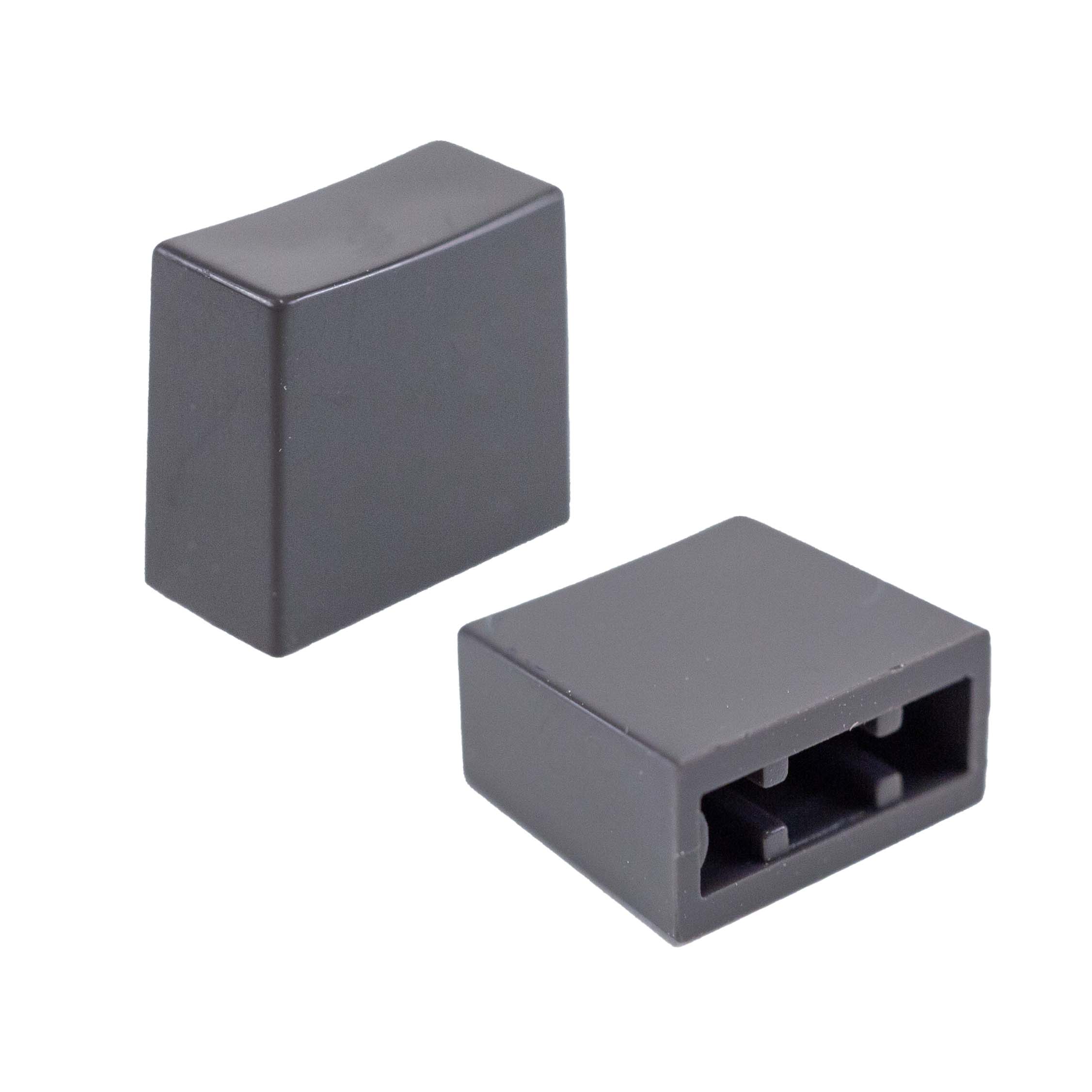

1C

Color:Black (BLK), Light Grey (LGR), Dark Grey (DGR), White (WHT), Blue (BLU), Red (RED)
Dimension:Length: 9.90mm Width: 5.00mm Height: 9.00mm
Supported Switches:LC, LL3301, PBH, TL1105, TL2201 and TL4201, TL3301, TL58
Notes:These caps are for certain switches within these designated series: TL4201Z, TL2201Z, TL3301SP, LL3301SP, TL1105JA, TL1105SP plus the switches in the other listed series...

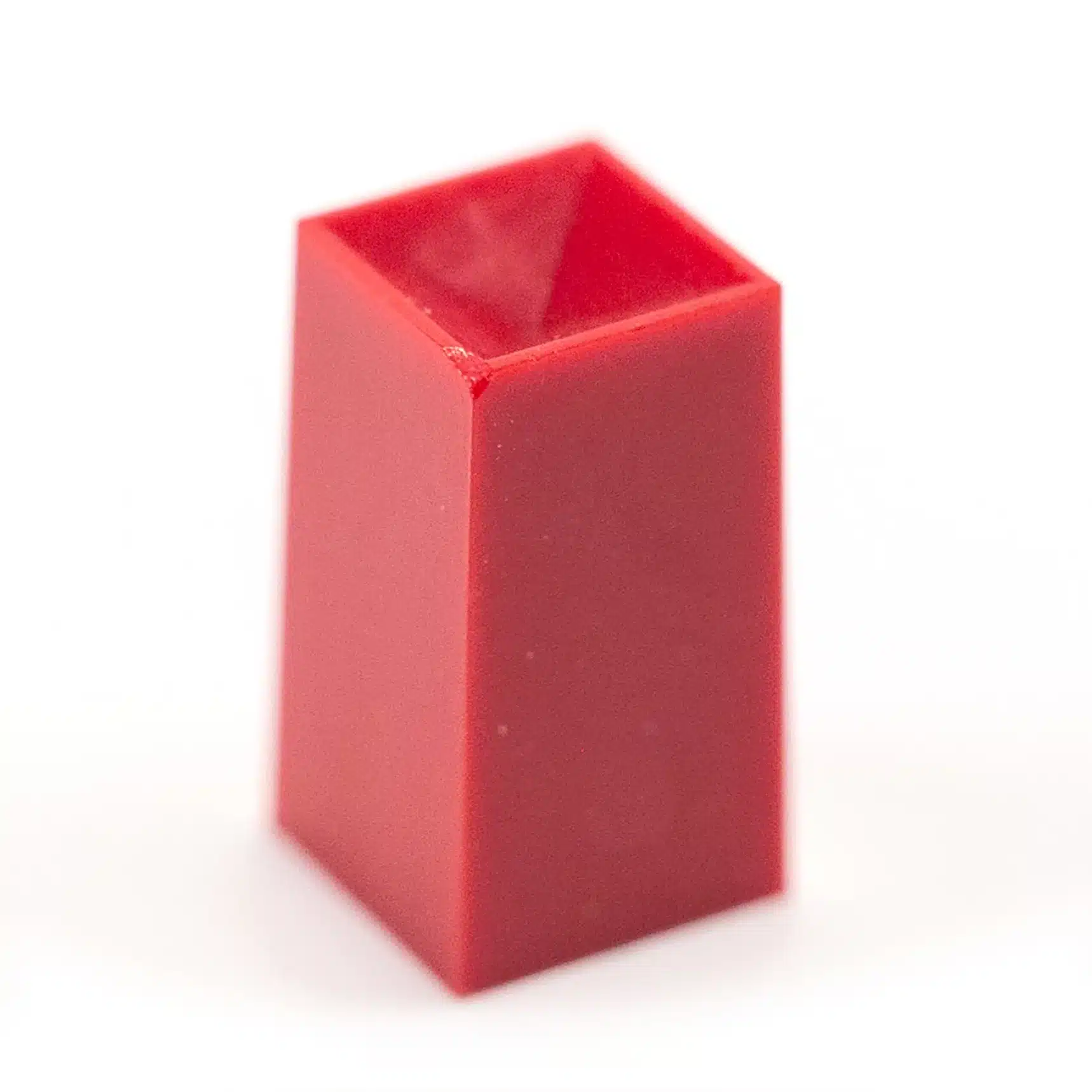

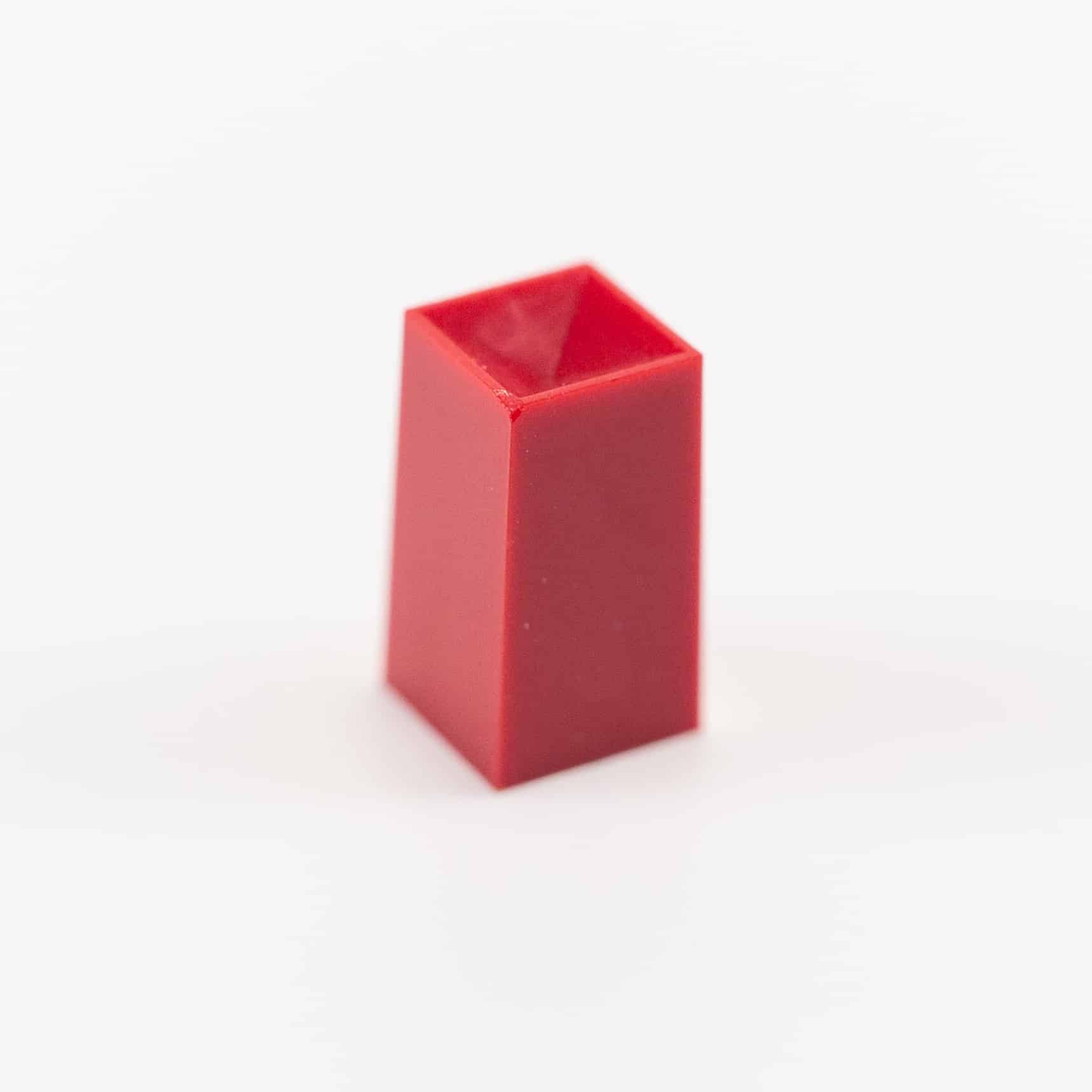

1D

Color: Black (BLK), Light Grey (LGR), Dark Grey (DGR), White (WHT), Blue (BLU), Red (RED)
Dimension: SQ: 5.00mm Height: 9.00
Supported Switches:LC, LL3301, PBH, TL1105, TL2201 and TL4201, TL3301, TL58
Notes:These caps are for certain switches within these designated series: TL4201Z, TL2201Z, TL3301SP, LL3301SP, TL1105JA, TL1105SP plus the switches in the other listed series.

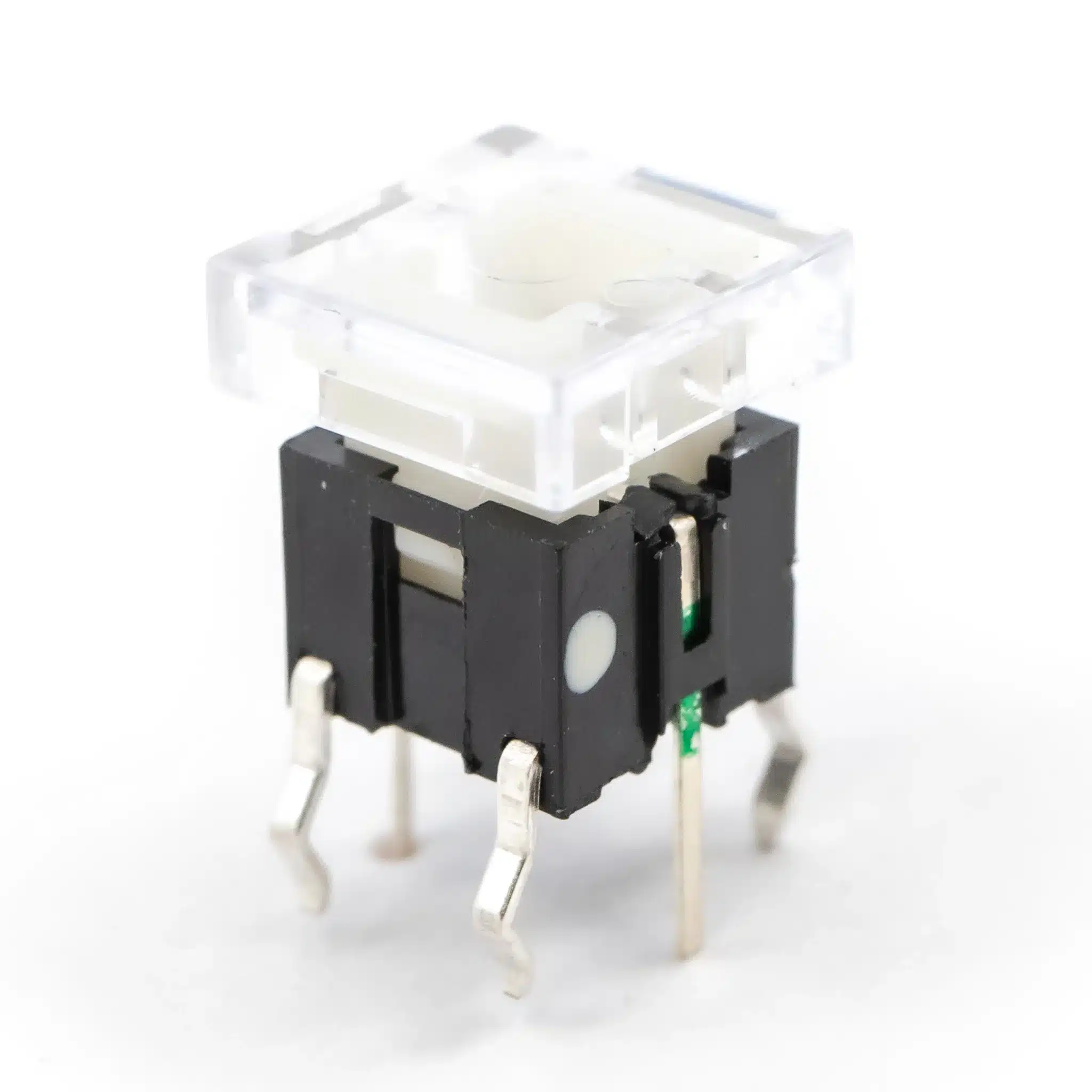

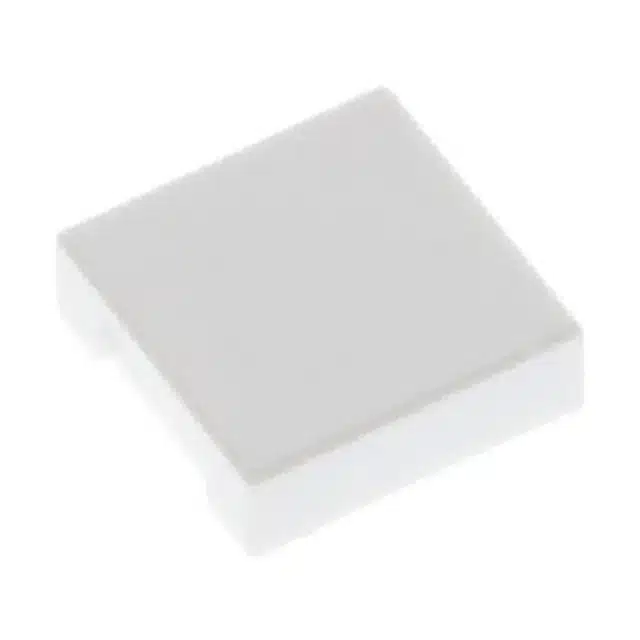

1J

Color:Black (BLK), White (WHT), Clear(CLR)
Dimension:SQ: 7.50mm Height: 2.30mm
Supported Switches:TL1240

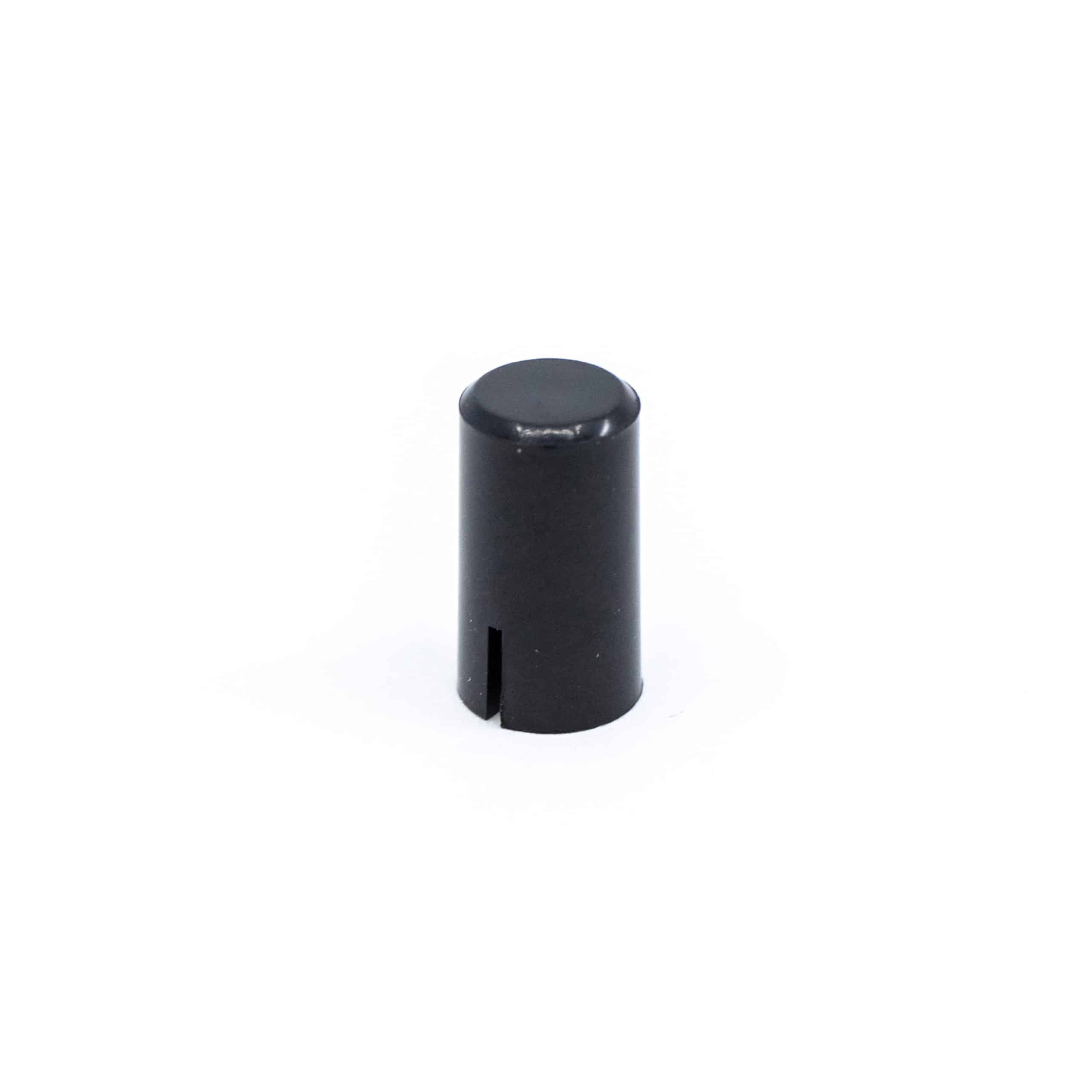

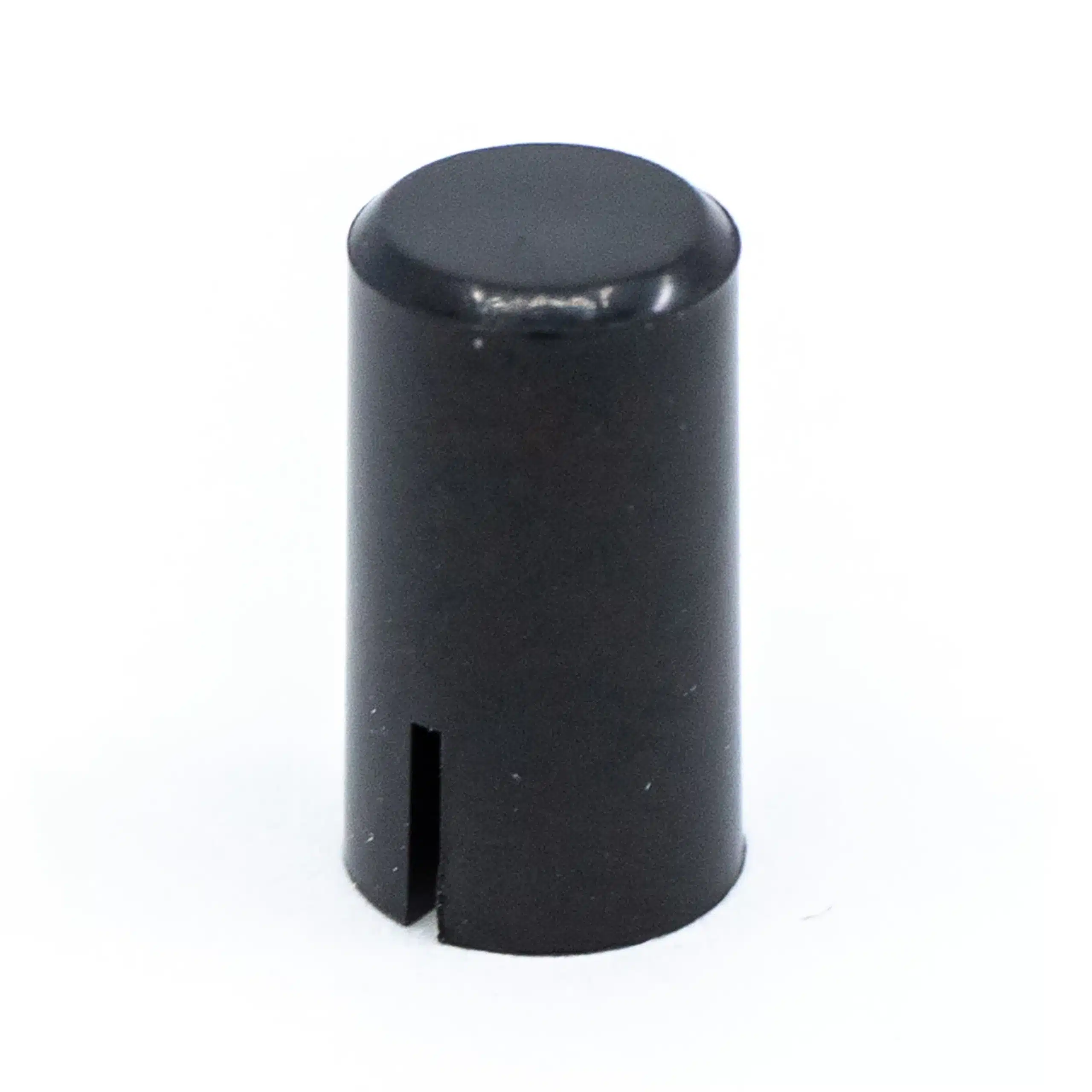

1R

Color:Black (BLK), White (WHT), Red (RED)
Dimension:Diameter: 5.0mm Height: 9.00mm
Supported Switches:LC, LL3301, PBH, TL1105, TL2201 and TL4201, TL3301, TL58
Notes:These caps are for certain switches within these designated series: TL4201Z, TL2201Z, TL3301SP, LL3301SP, TL1105JA, TL1105SP plus the switches in the other listed series.

1S

Color:Black (BLK), White (WHT), Red (RED)
Dimension:SQ: 5.00mm Height: 9.0mm
Supported Switches:LC, LL3301, PBH, TL1105, TL3301, TL58
Notes:These caps are for certain switches within these designated series: TL3301SP, LL3301SP, TL1105JA, TL1105SP plus the switches in the other listed series.

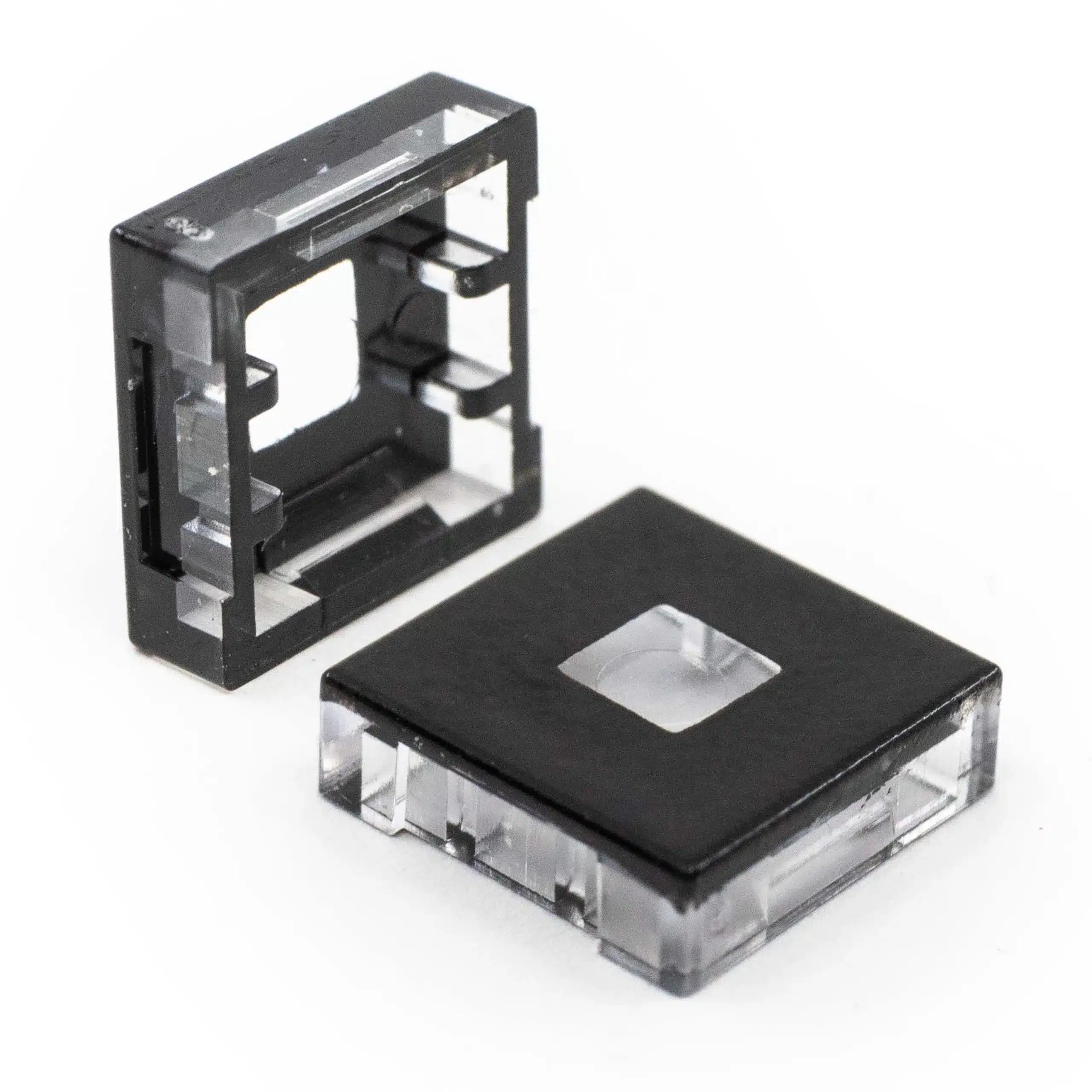

2J

Color:Black (BLK), Red (RED)
Dimension:SQ: 7.50mm Height: 2.30mm
Supported Switches:TL1240

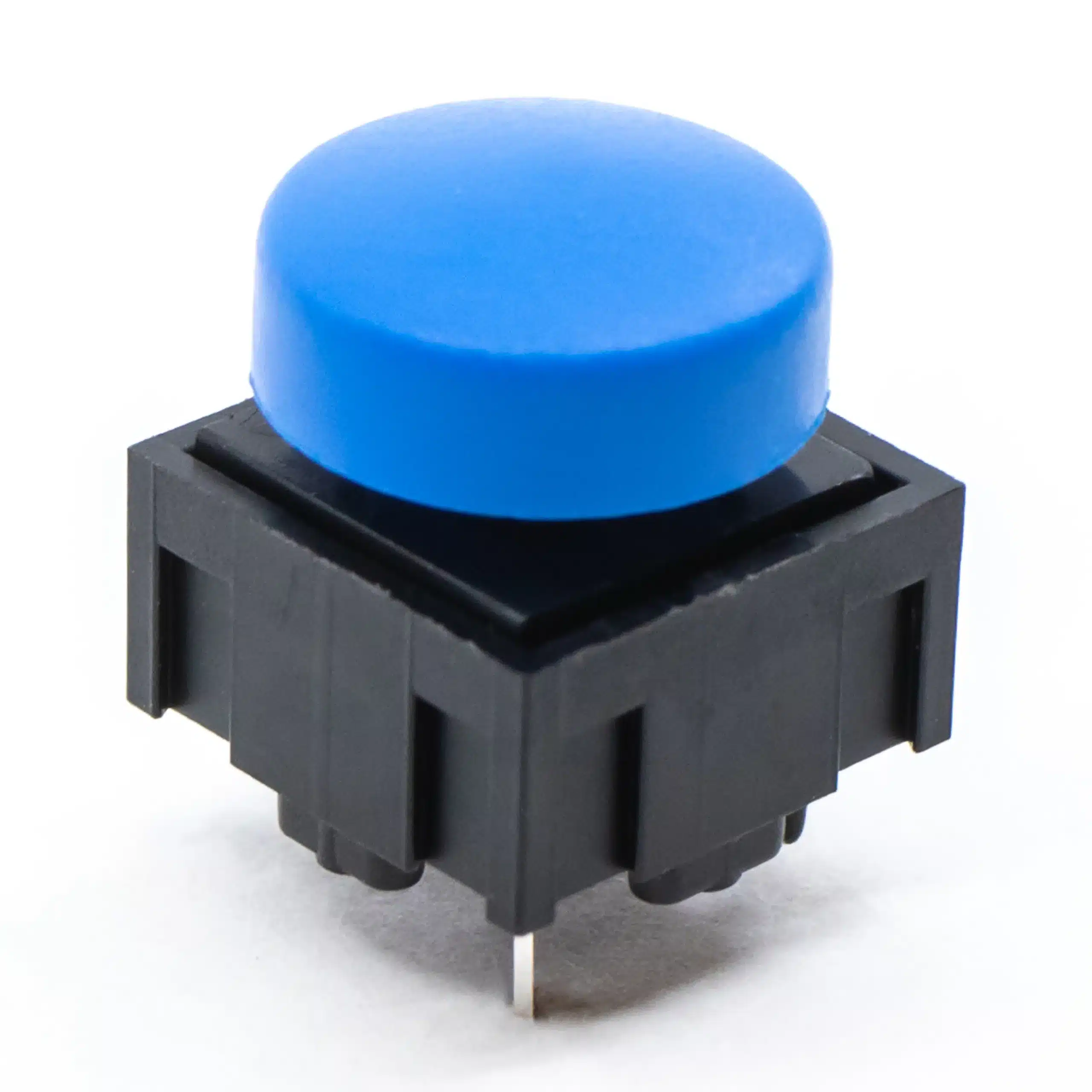

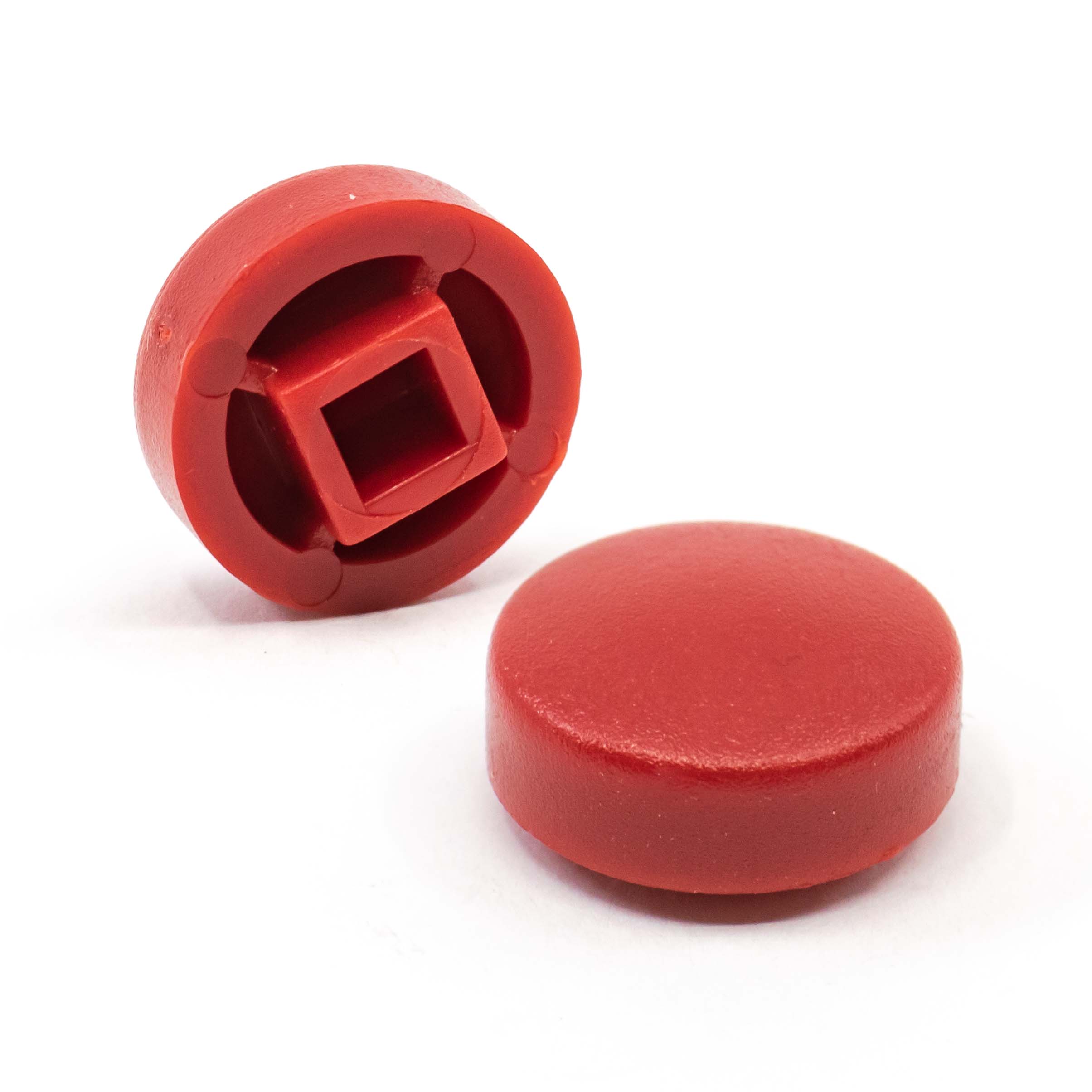

320.08

Color: Black (BLK), Grey (GRY), White (WHT), Blue (BLU), Red (RED), Yellow (YEL), Green (GRN)
Dimension:Diameter: 11.94mm Height: 5.97mm
Supported Switches:320, LC, TL1100, TL2201 and TL4201
Notes:These caps are for certain switches within these designated series: 320.02, 320.03, TL4201Y, TL2201Y, TL1100C, plus the switches in the other listed series.

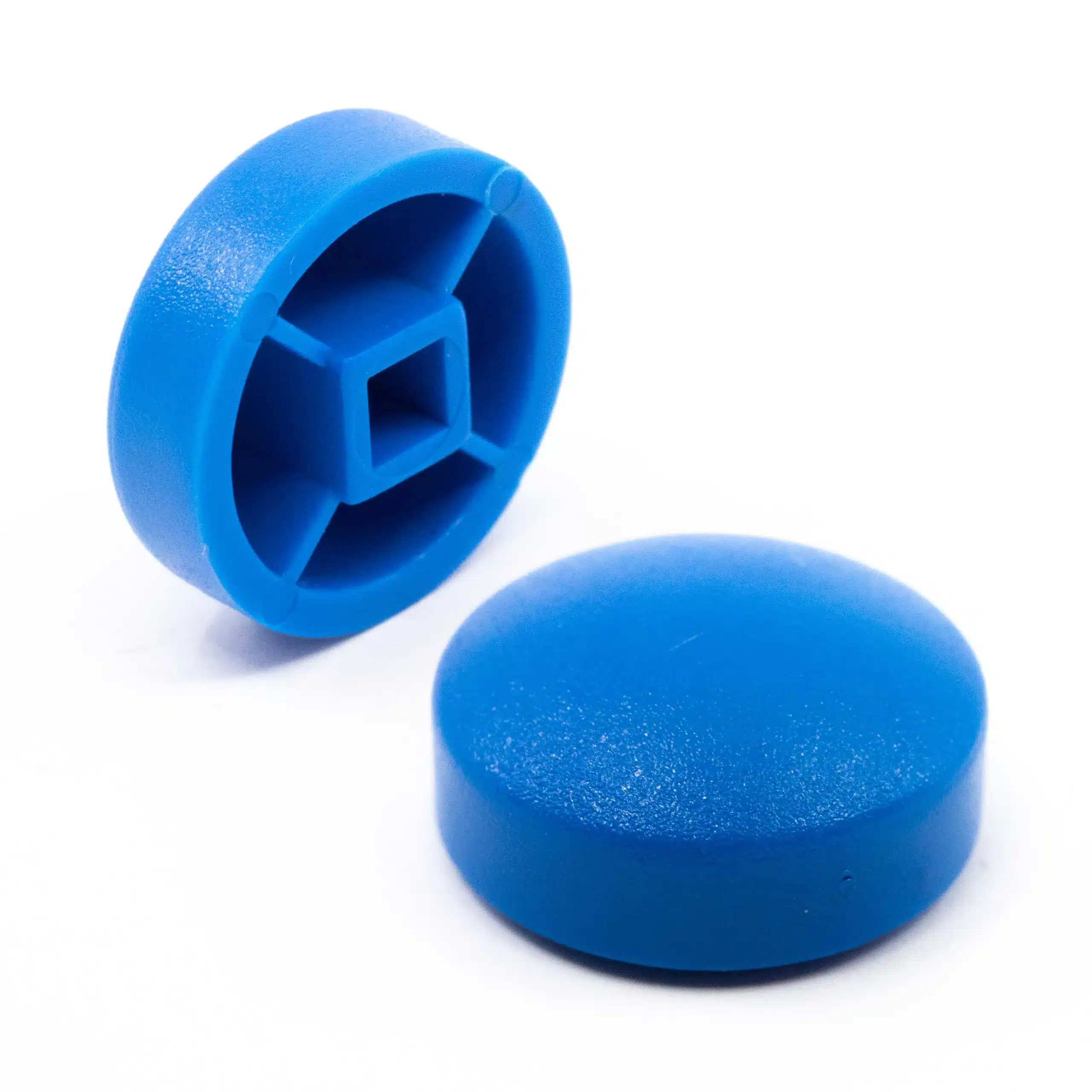

320.09

Color:Black (BLK), Grey (GRY), White (WHT), Blue (BLU), Red (RED), Yellow (YEL), Green (GRN)
Dimension:Diameter: 15.87mm Height: 7.78mm
Supported Switches:320, LC, TL1100, TL2201 and TL4201
Notes:These caps are for certain switches within these designated series: 320.02, 320.03, TL4201Y, TL1100C, plus the switches in the other listed series.

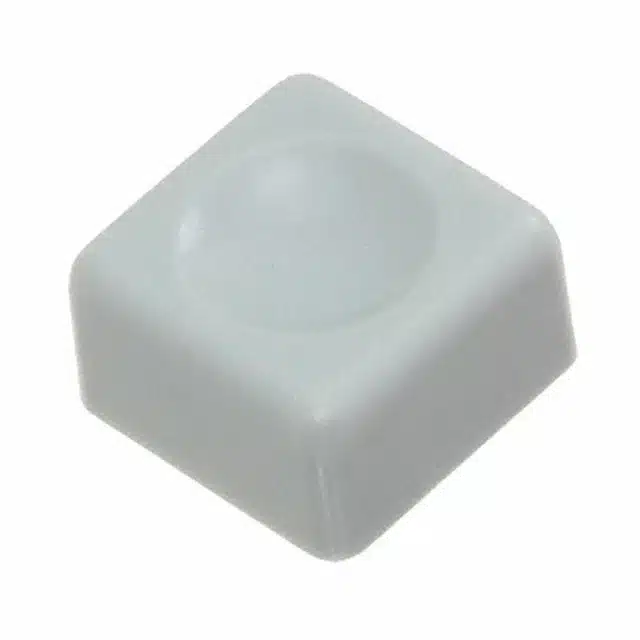

320.094

Color:Black (BLK), Grey (GRY)
Dimension:SQ: 11.85mm Height: 7.55mm
Supported Switches:320, LC, TL1100
Notes:These caps are for certain switches within these designated series: 320.02, 320.03, TL4201Y, TL1100C, plus the switches in the other listed series.

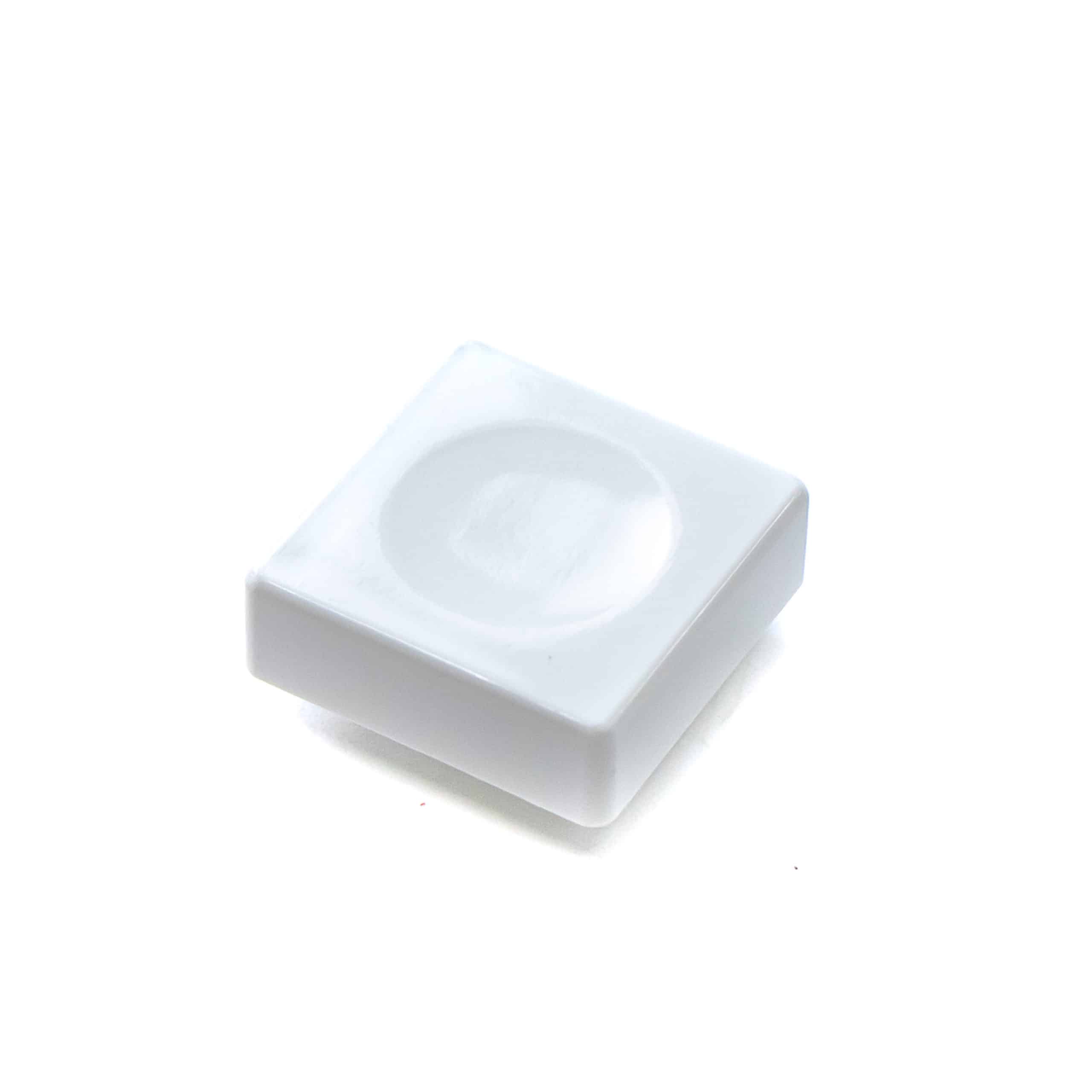

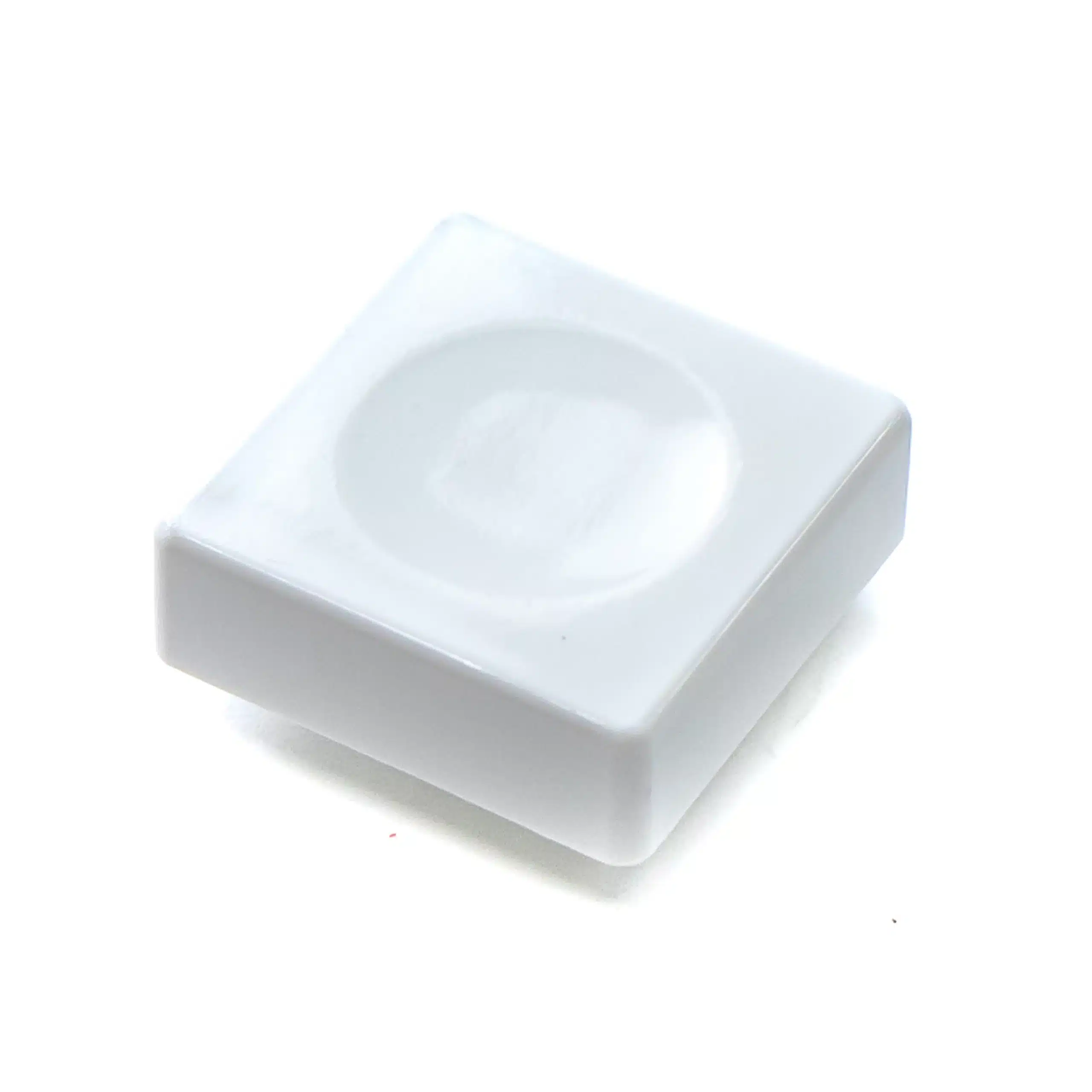

4J

Color:Black (BLK), Grey (GRY), White (WHT), Red (RED)
Dimension:SQ: 12.00mm Height: 5.60mm
Supported Switches:320, LC, TL1100
Notes:These caps are for certain switches within these designated series: 320.02, 320.03, TL2201Y, TL4201Y, TL1100C, plus the switches in the other listed series.

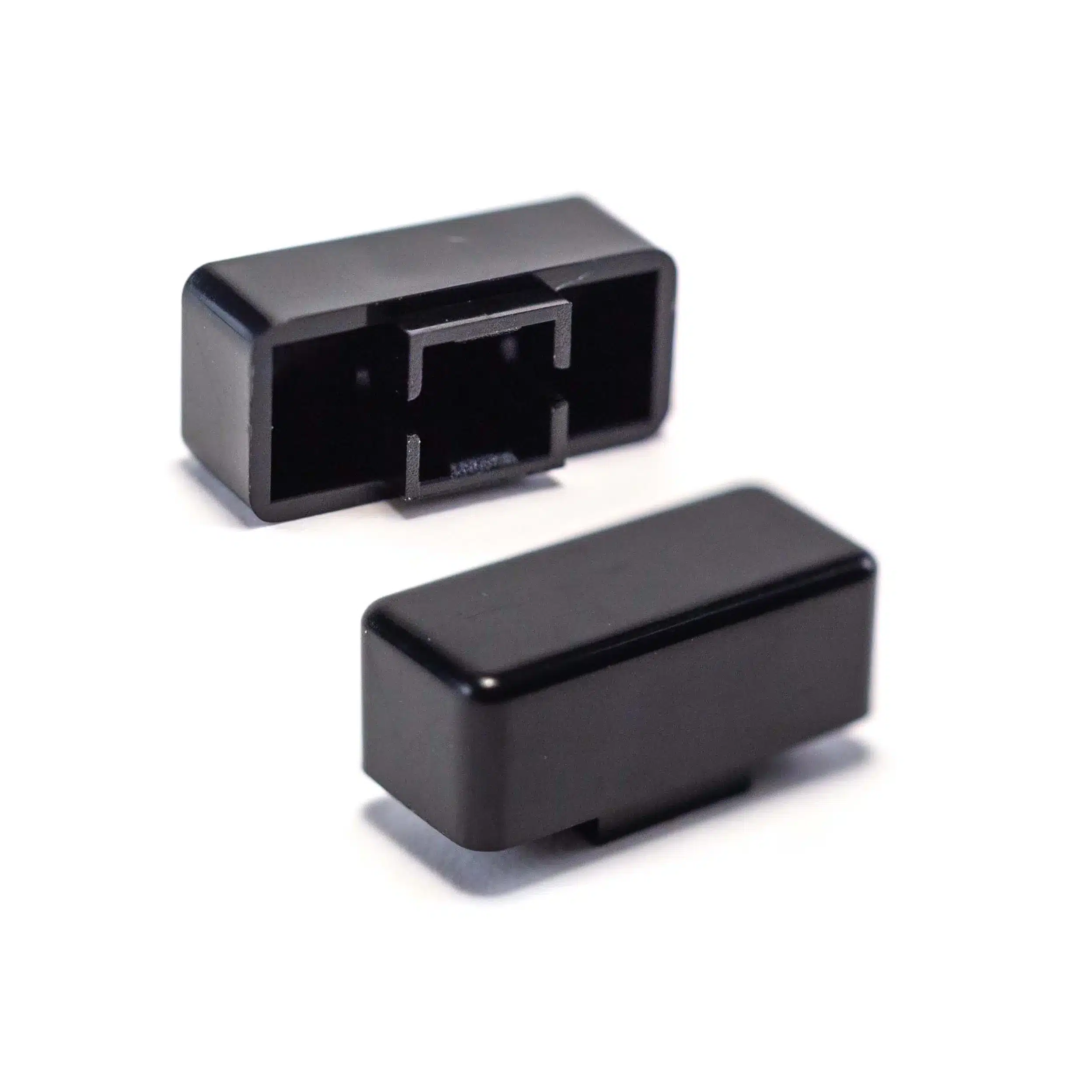

5J

Color:Black (BLK), Grey (GRY), White (WHT), Red (RED), Blue (BLU)
Dimension:Length: 11.00mm Width: 5.00mm Height: 4.95mm
Supported Switches:320, LC, TL1100

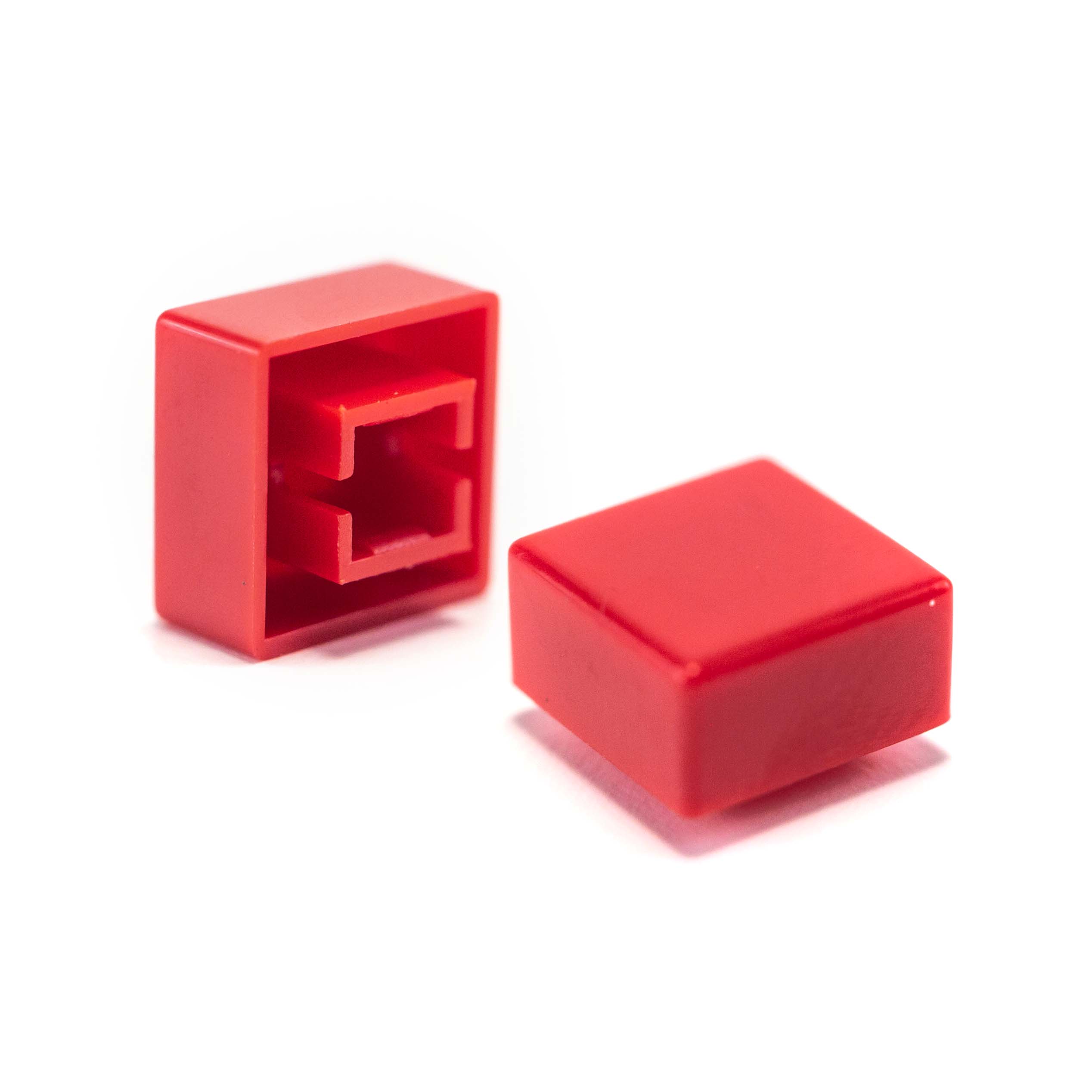

6J

Color:Black (BLK), Grey (GRY), White (WHT), Red (RED)
Dimension:SQ: 8.00mm Height: 5.00mm
Supported Switches:320, LC, TL1100
Notes:These caps are for certain switches within these designated series: 320.02, 320.03, TL2201Y, TL4201Y, TL1100C, plus the switches in the other listed series.

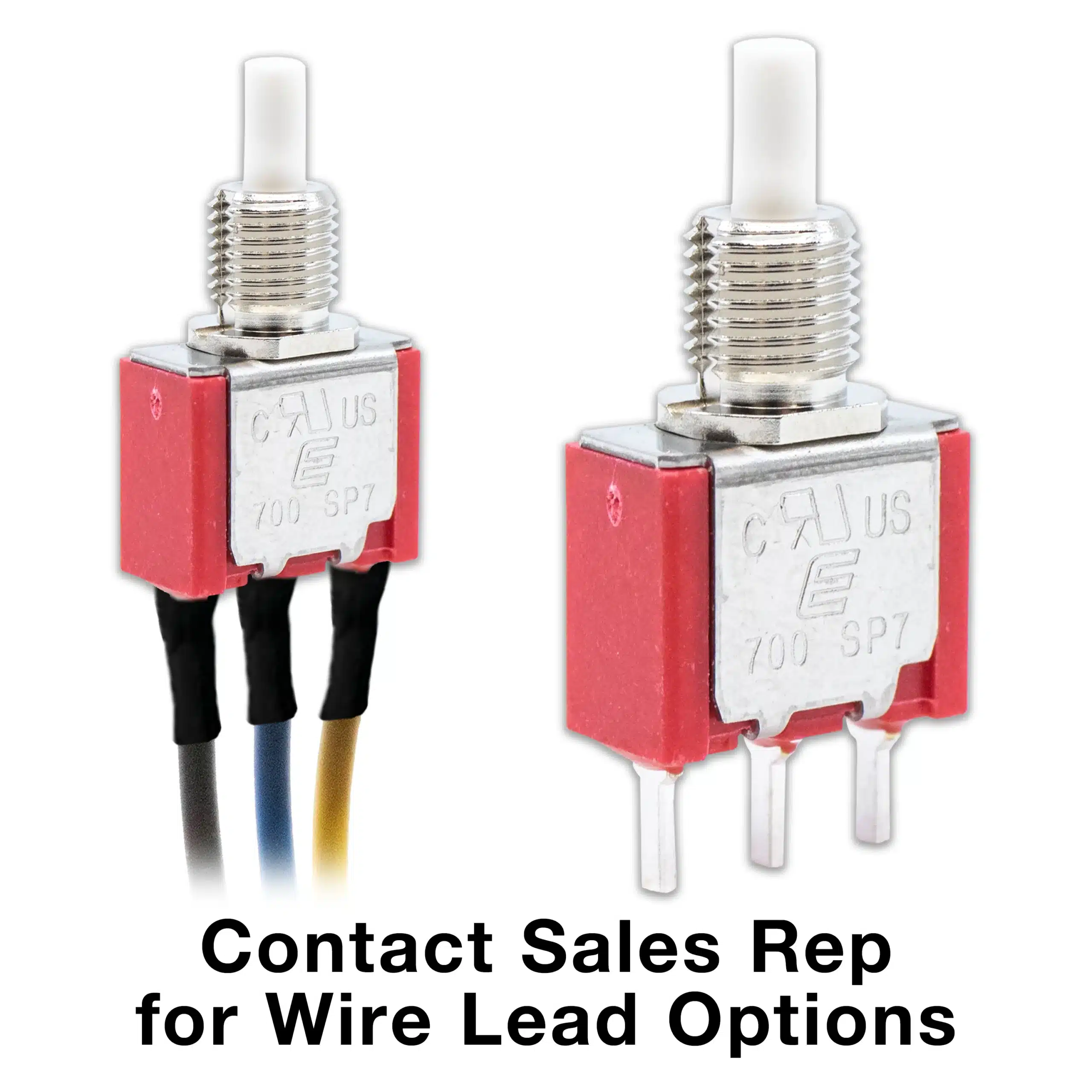

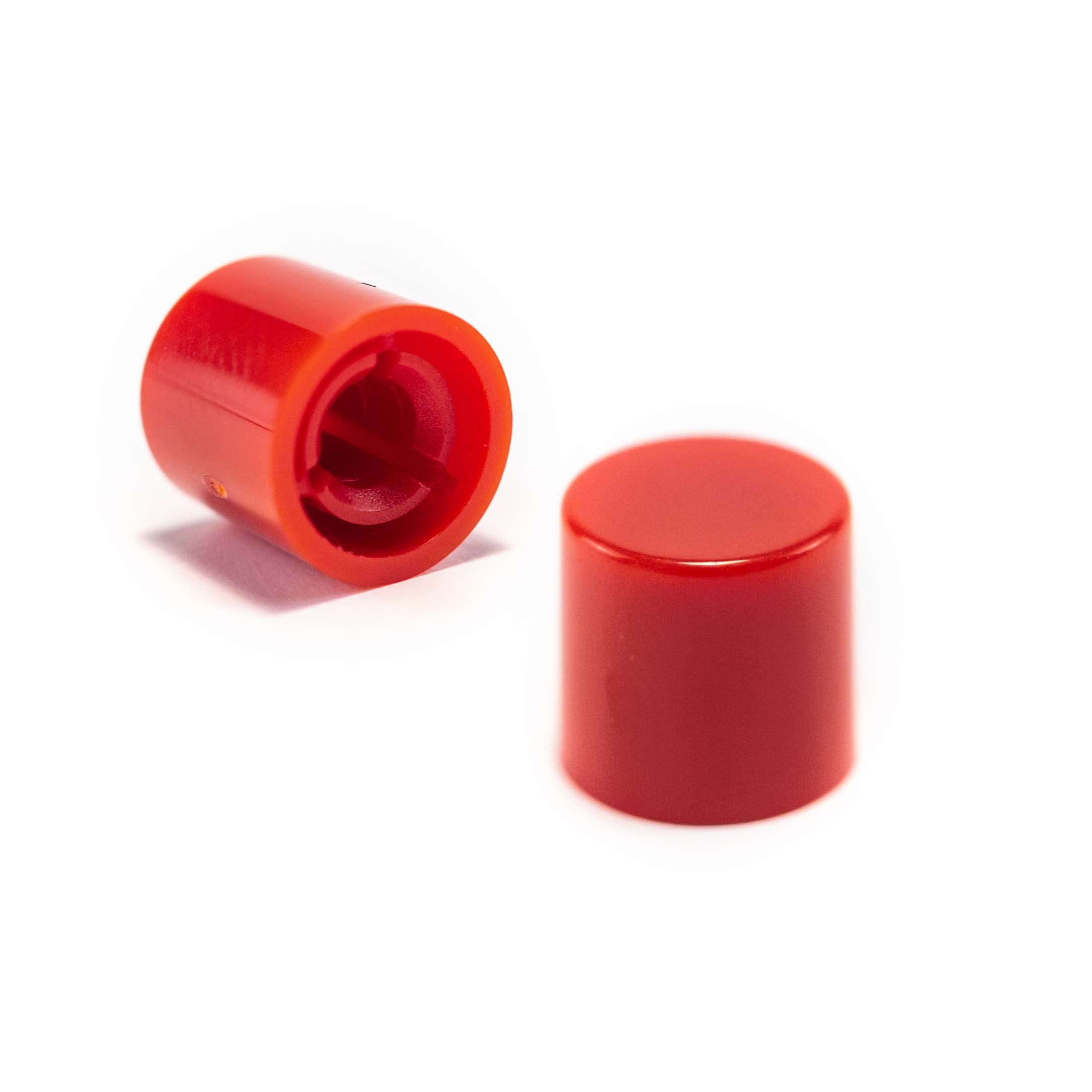

700C1

Color:Black (BLK), Grey (GRY), White (WHT), Red (RED), Green (GRN)
Dimension:Diameter: 7.70mm Height: 7.60mm
Supported Switches:700

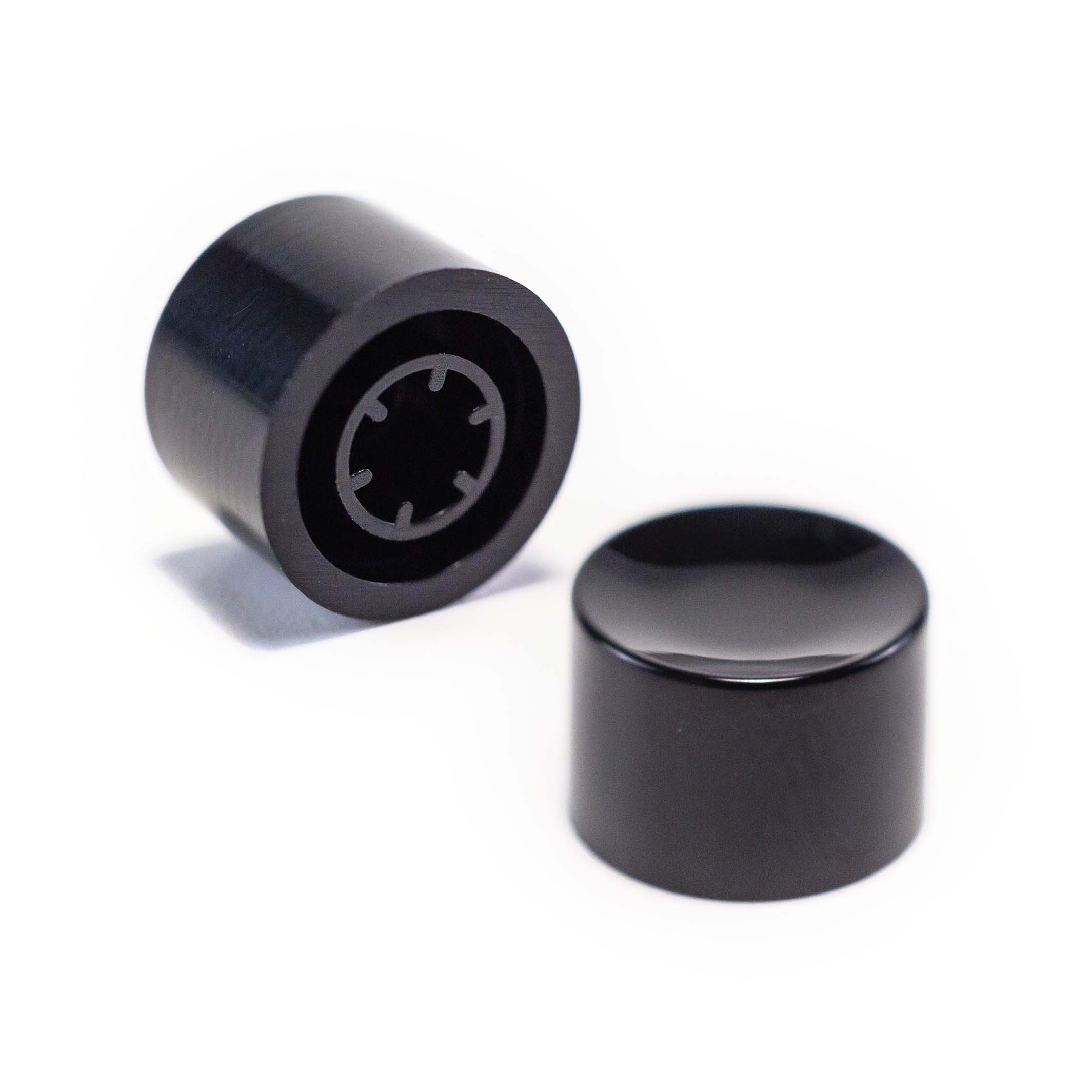

700C2

Color:Black (BLK), Grey (GRY), White (WHT), Red (RED), Green (GRN)
Dimension:Diameter: 9.50mm Height: 6.54mm
Supported Switches:700

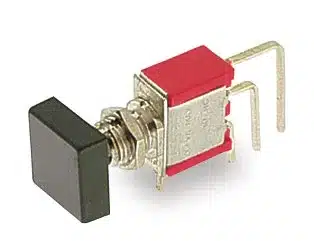

700C3

Color:Black (BLK), Grey (GRY), White (WHT), Red (RED), Green (GRN)
Dimension:Square: 11.7mm
Supported Switches:700

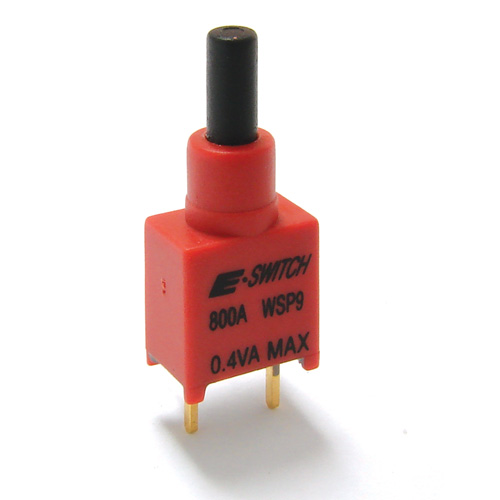

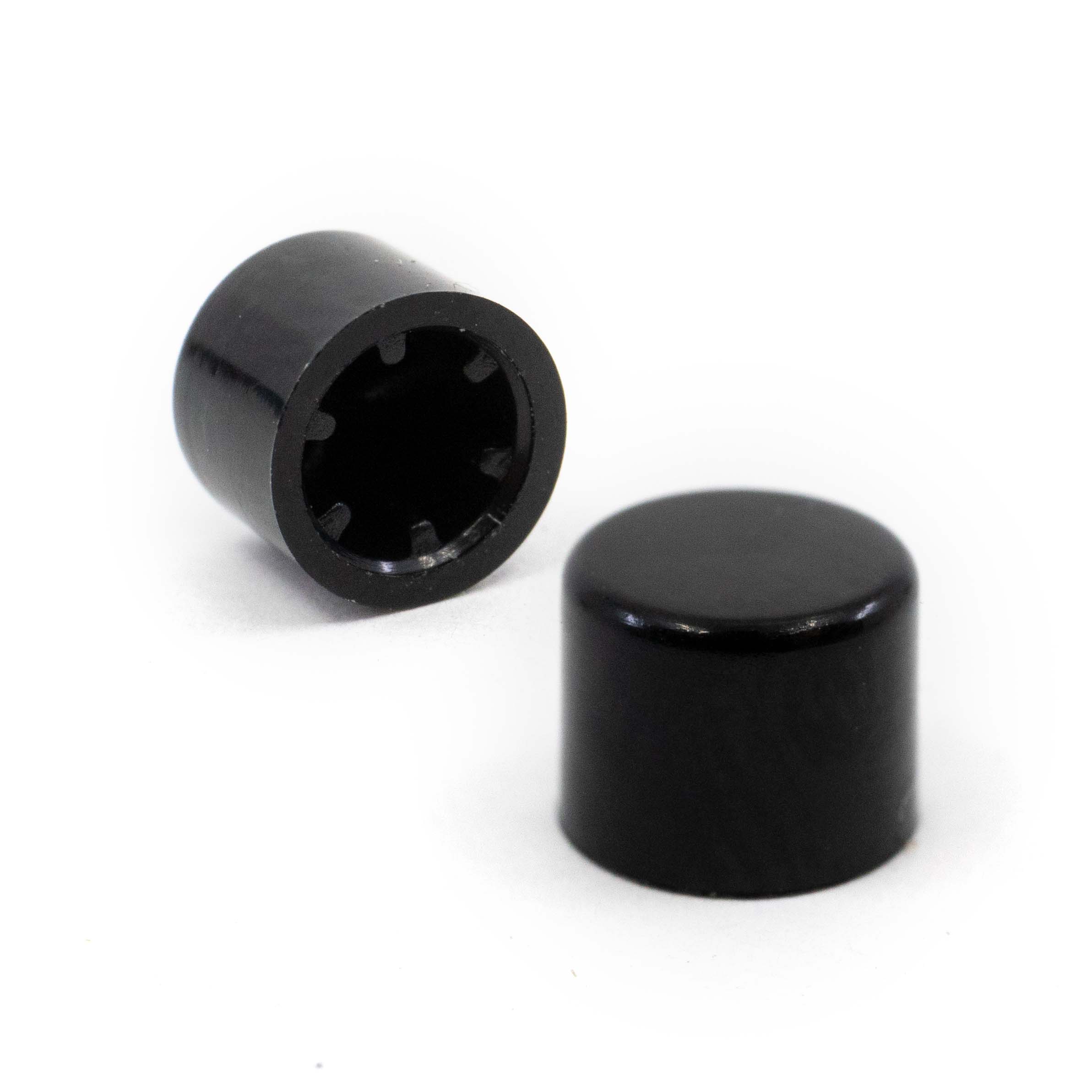

800A C1

Color:BLACK (BLK), RED (RED), WHITE (WHT), GREEN (GRN)
Dimension:Diameter: 5.00 Height: 4.03
Supported Switches:800A, 800B

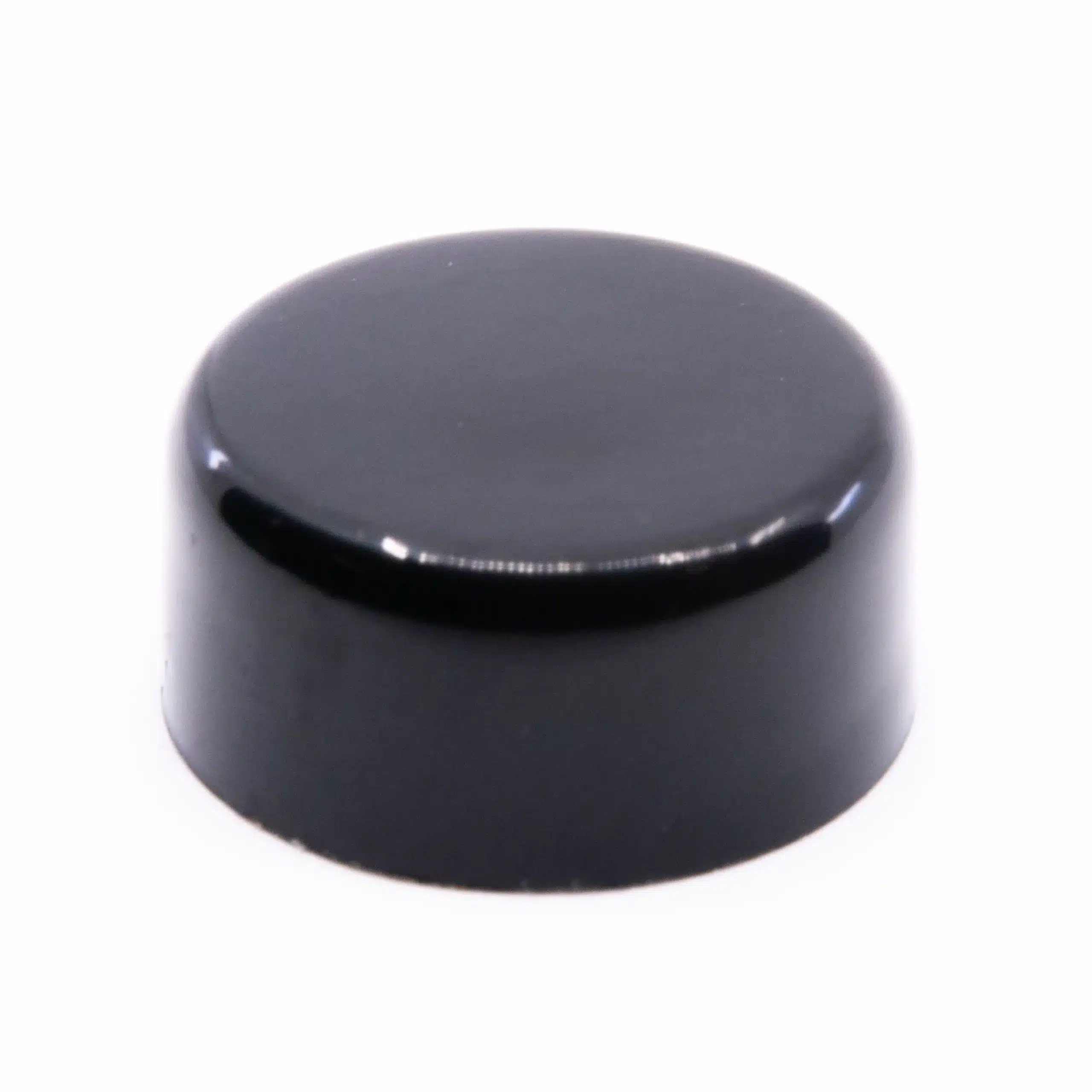

800A C2

Color:BLACK (BLK), RED (RED), WHITE (WHT), GREEN (GRN)
Dimension:Diameter: 7.35 Height: 3.5
Supported Switches:800A, 800B

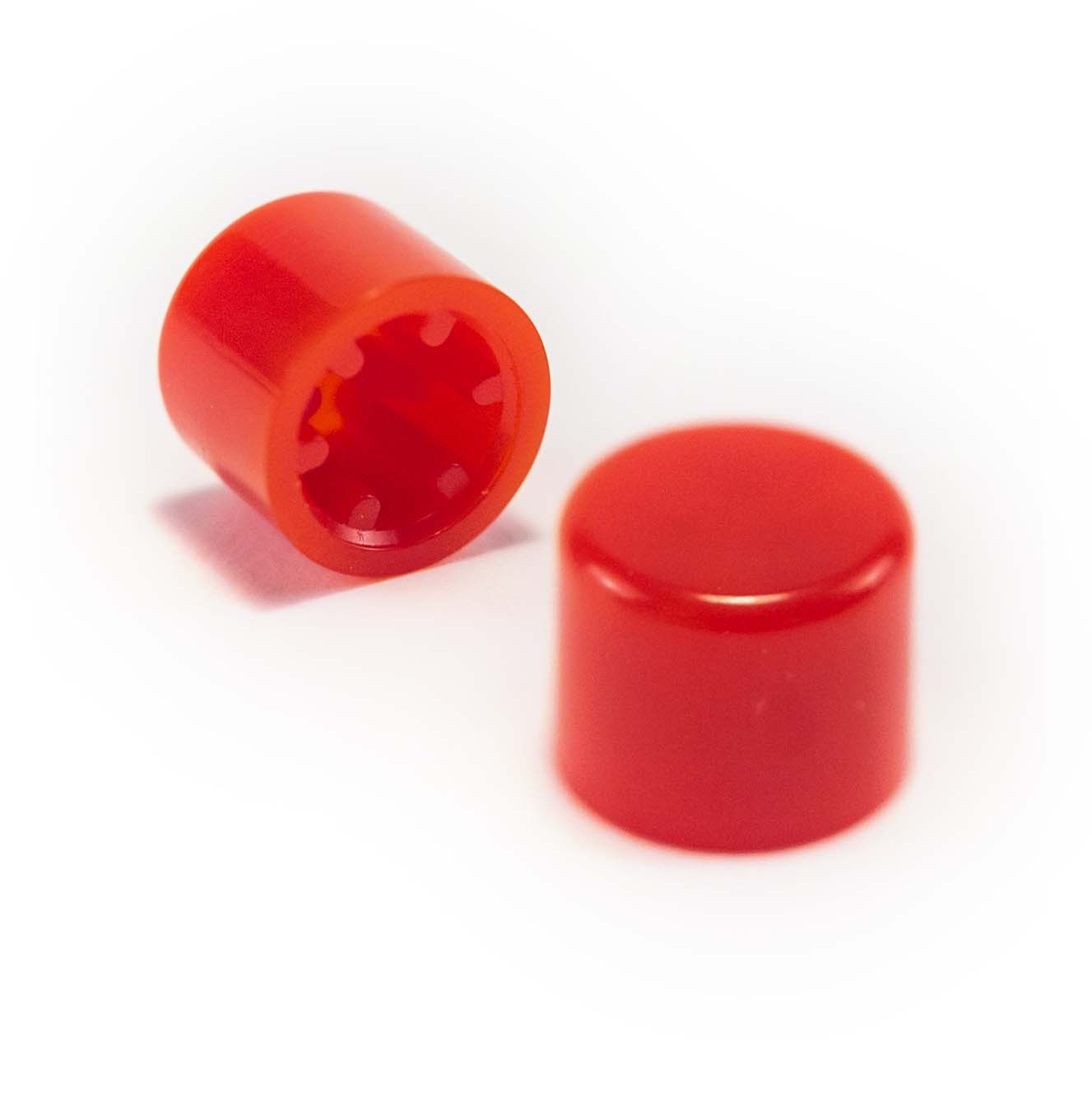

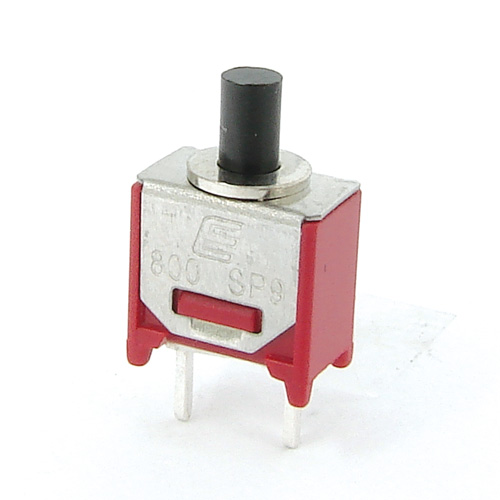

800C1

Color:Black (BLK), White (WHT), Red (RED), Green (GRN)
Dimension:Diameter: 5.0mm Height: 4.03mm
Supported Switches:800, 800B

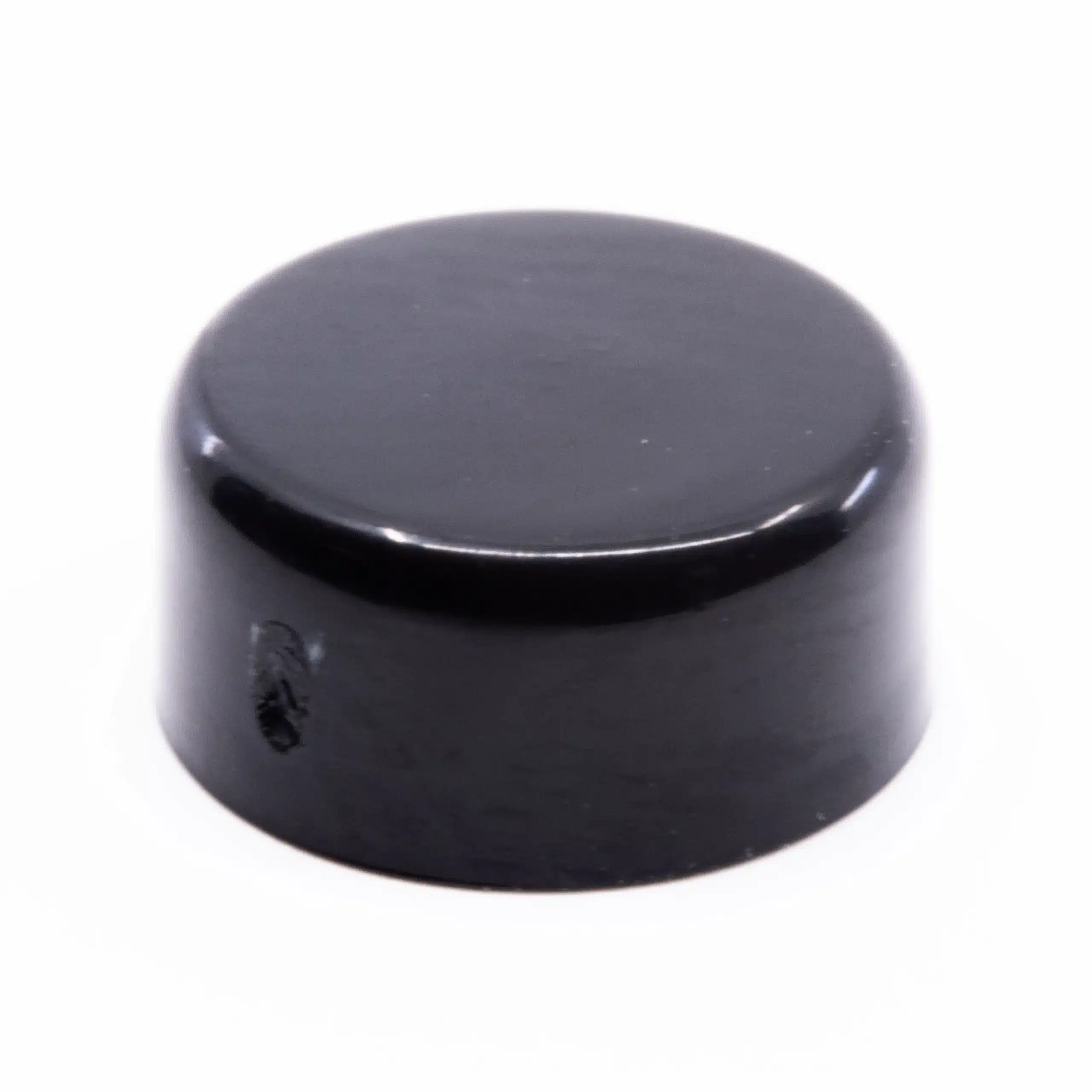

800C2

Color:Black (BLK), White (WHT), Red (RED), Green (GRN)
Dimension:Diameter: 7.45mm Height: 3.50mm
Supported Switches:800

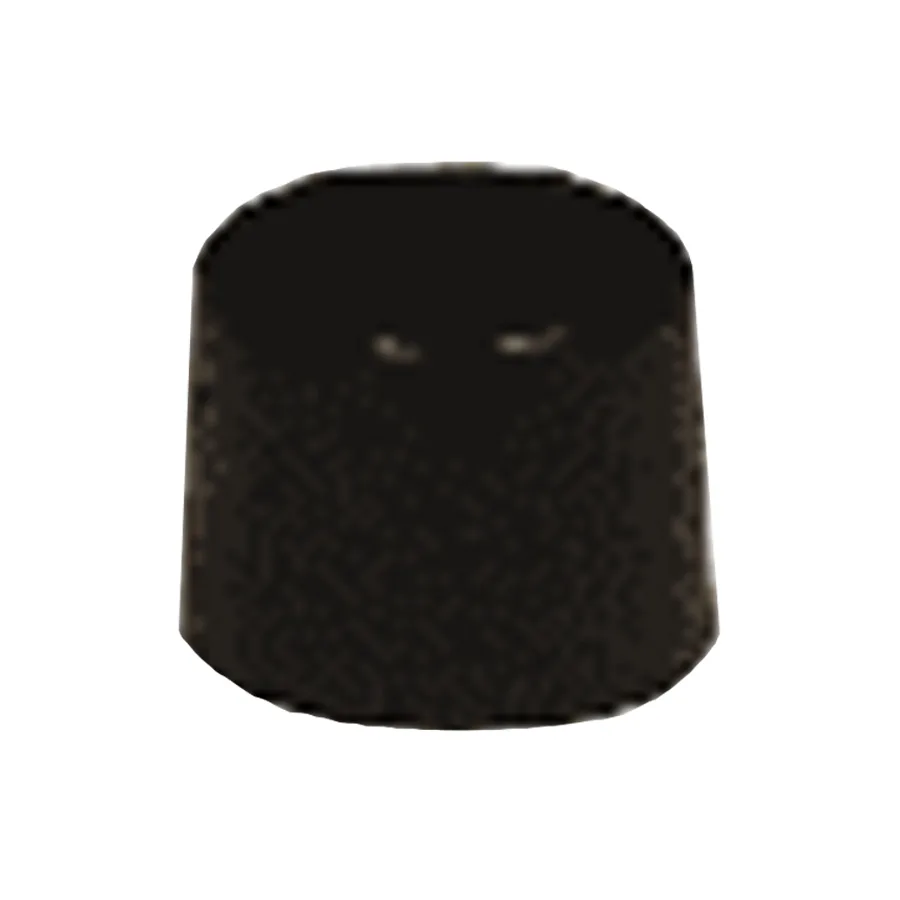

800C3

Color:BLACK (BLK)
Dimension:None
Supported Switches:800

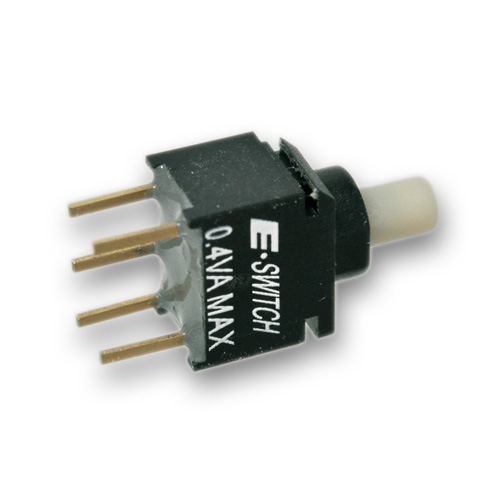

800UR1BLK

Color:Black
Dimension:Round 4mm dia.
Supported Switches:800U
Notes:800U series caps can be ordered separately or with the switch.

800UR1RED

Color:Red
Dimension:Round 4mm dia.
Supported Switches:800U
Notes:800U series caps can be ordered separately or with the switch.

800UR1WHT

Color:White
Dimension:Round 4mm dia.
Supported Switches:800U
Notes:800U series caps can be ordered separately or with the switch.

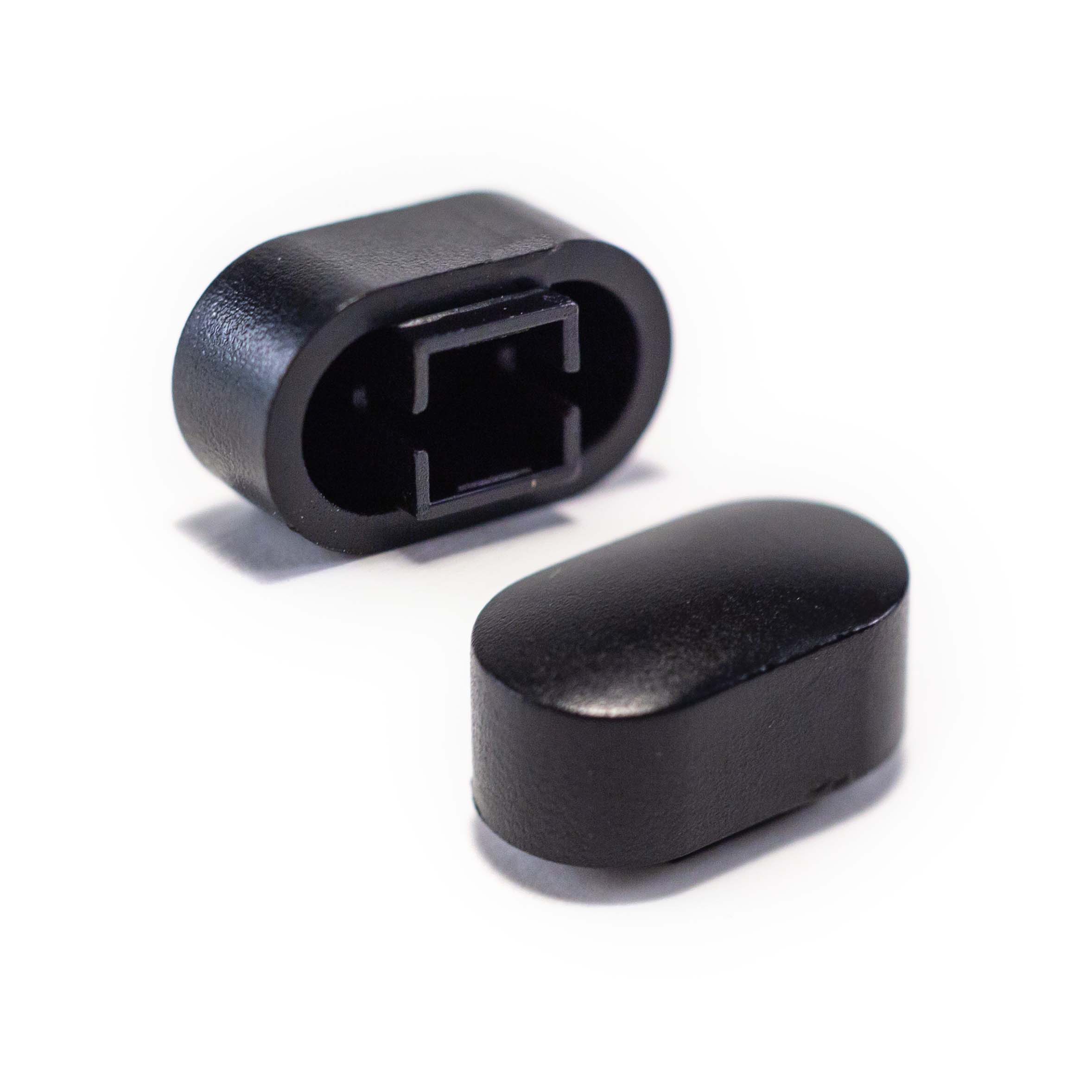

8J

Color:Black (BLK)
Dimension:Length: 10.40mm Width: 6.05mm Height: 5.66mm
Supported Switches:320, LC, TL1100
Notes:These caps are for certain switches within these designated series: 320.02, 320.03, TL2201Y, TL4201Y, TL1100C, plus the switches in the other listed series.

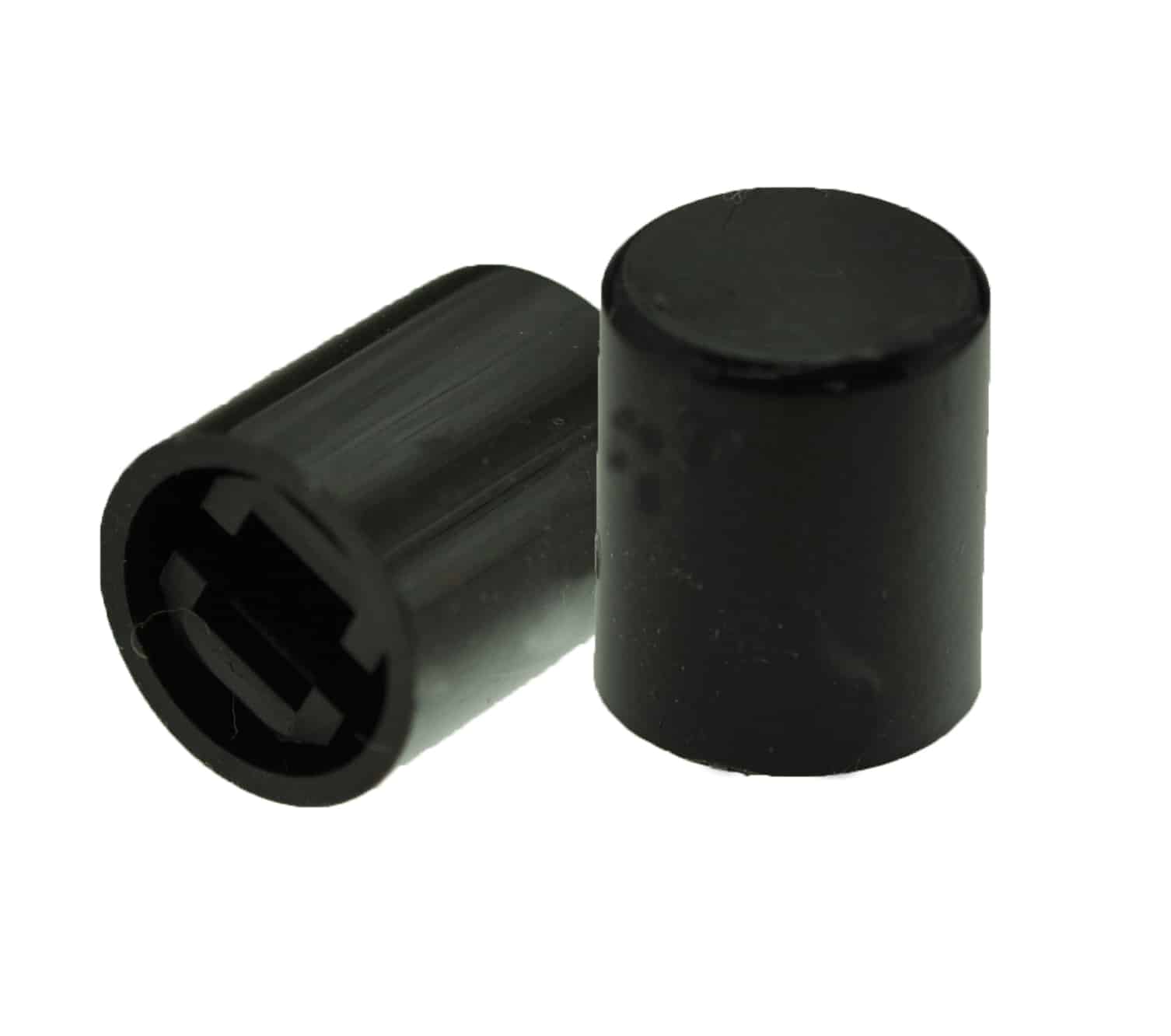

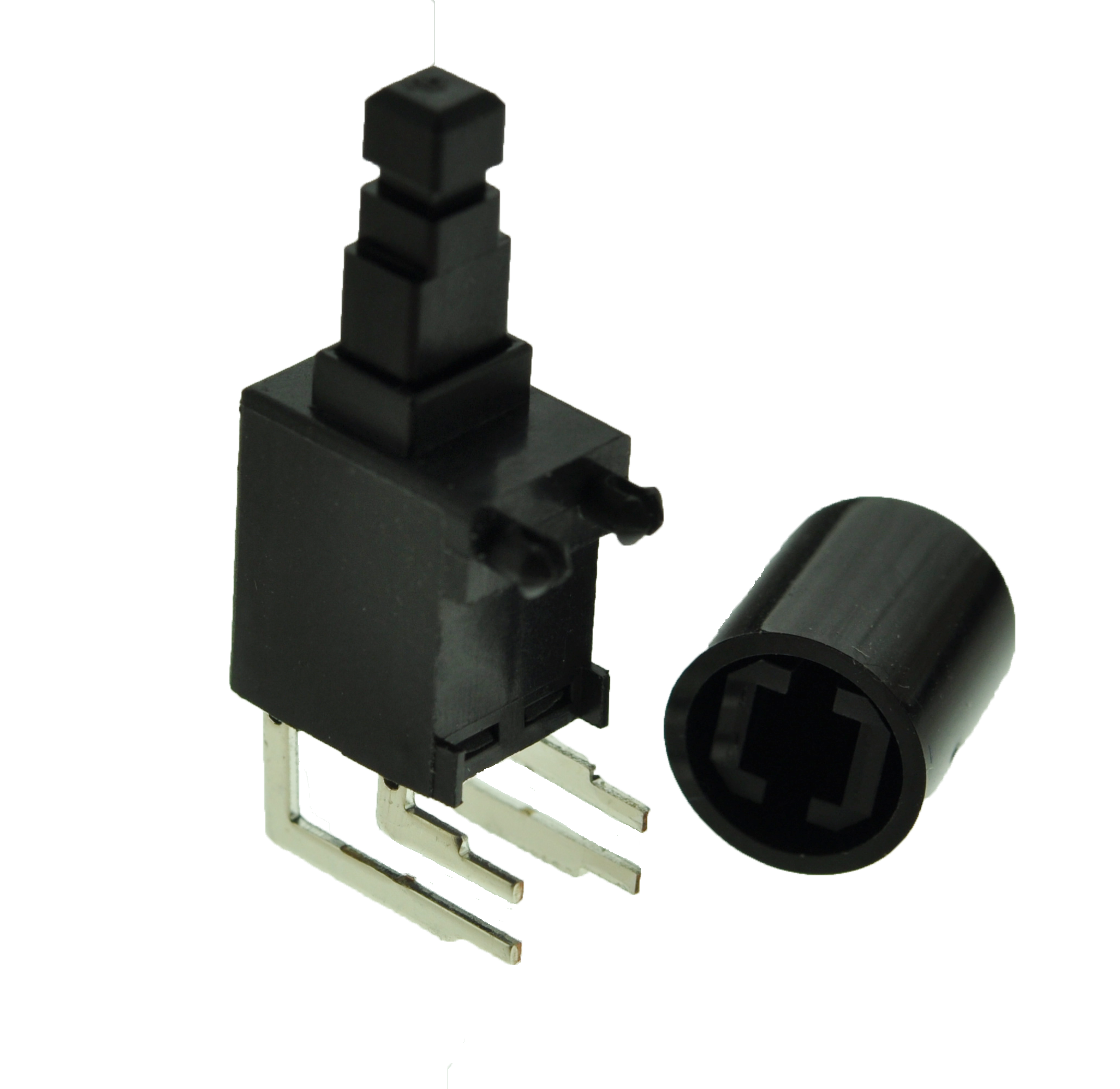

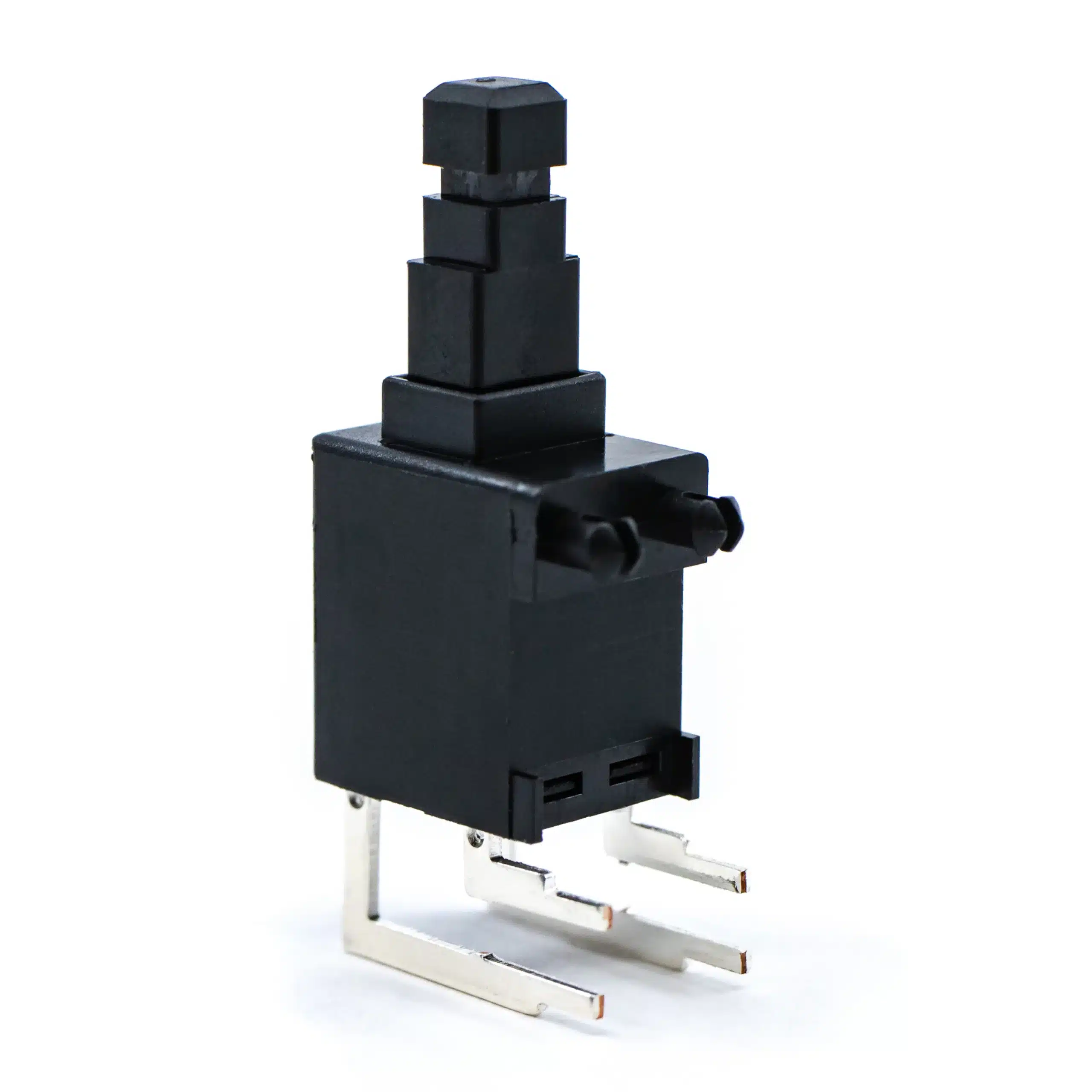

R1

Color:Black
Dimension:10.50mm H x 8.80mm Diameter
Supported Switches:PB400
Notes:Fits PB400 Series

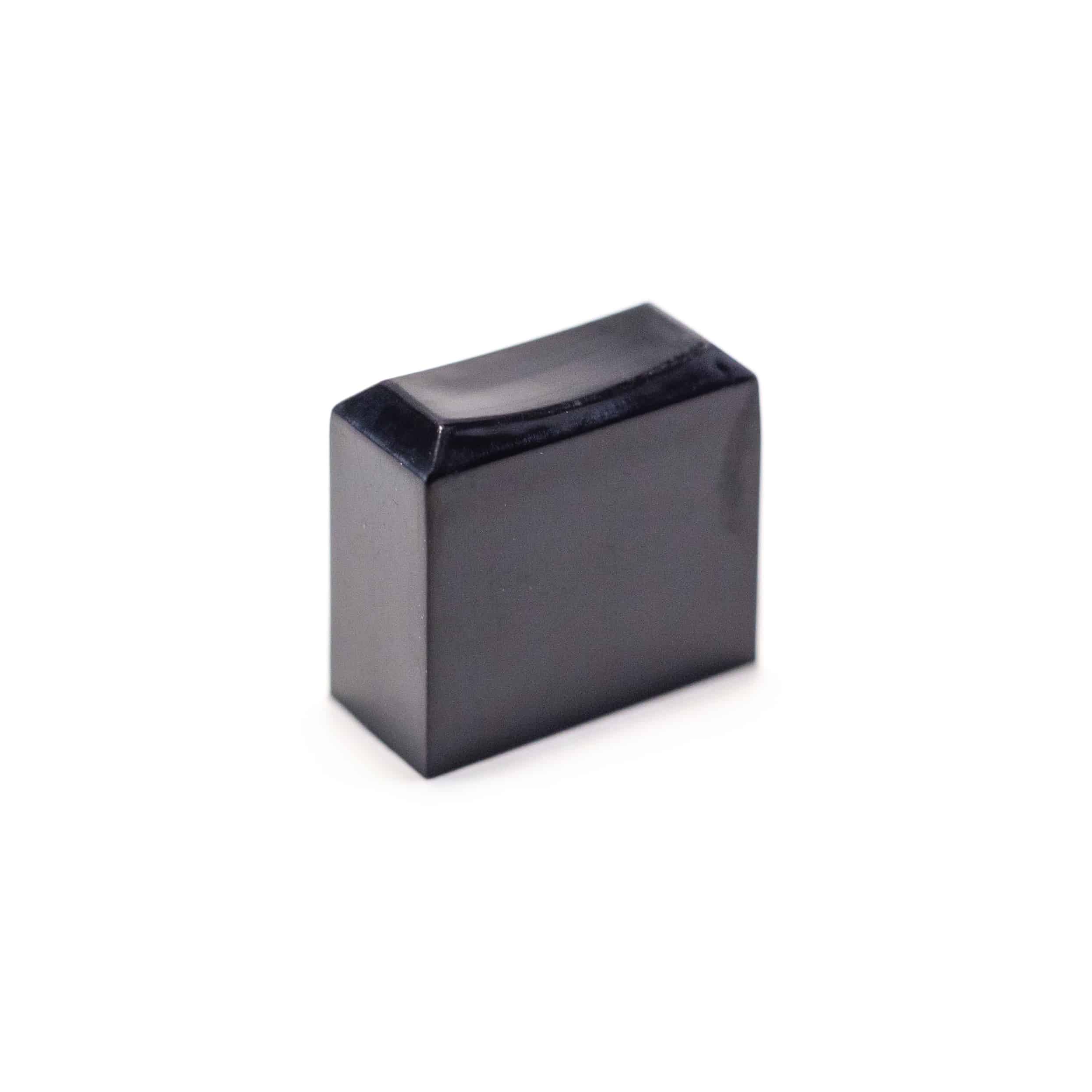

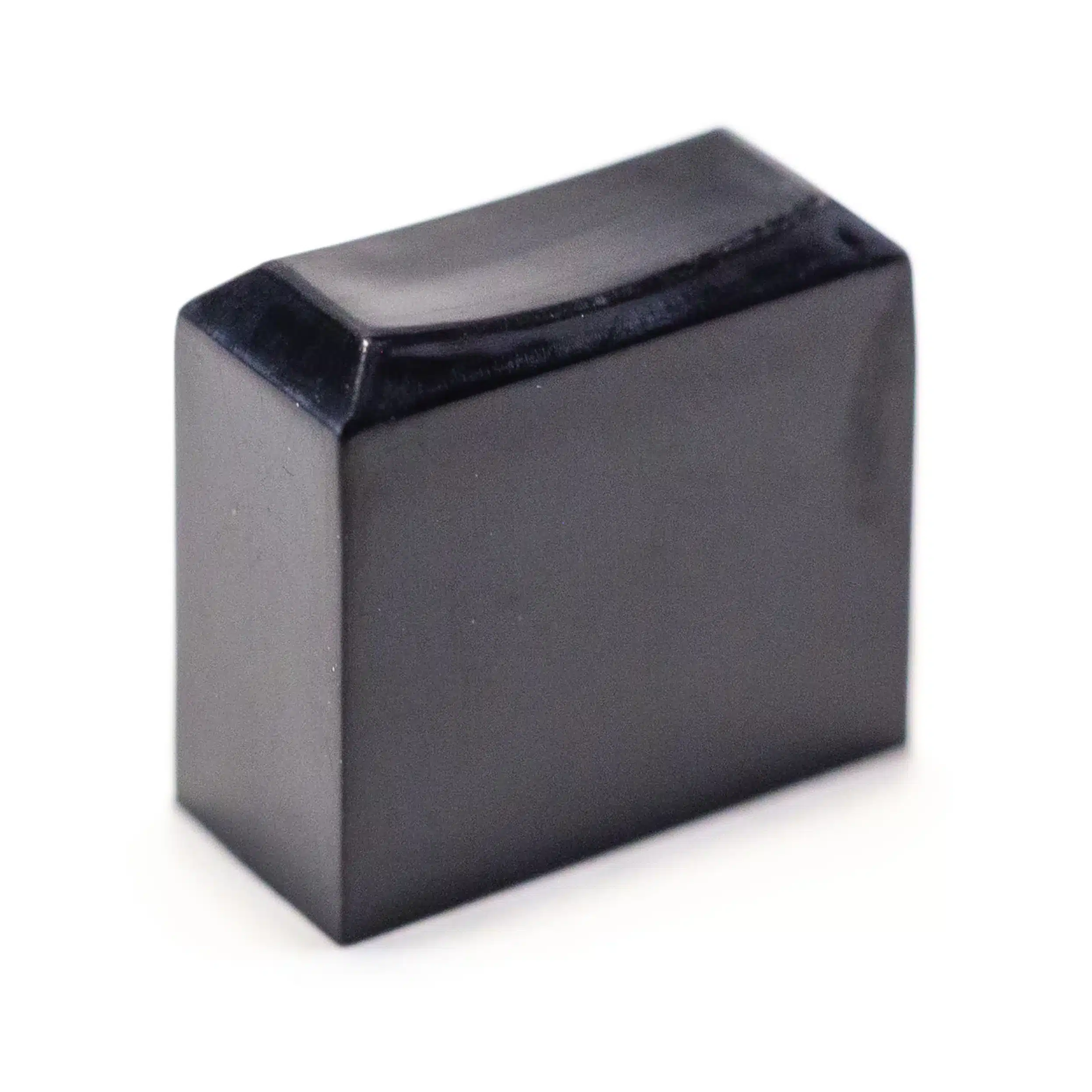

TA12

Color:Black (BLK), Grey(GRY), White (WHT), Red (RED)
Dimension:Width: 5.70mm Height: 11.10mm
Supported Switches:320, LC

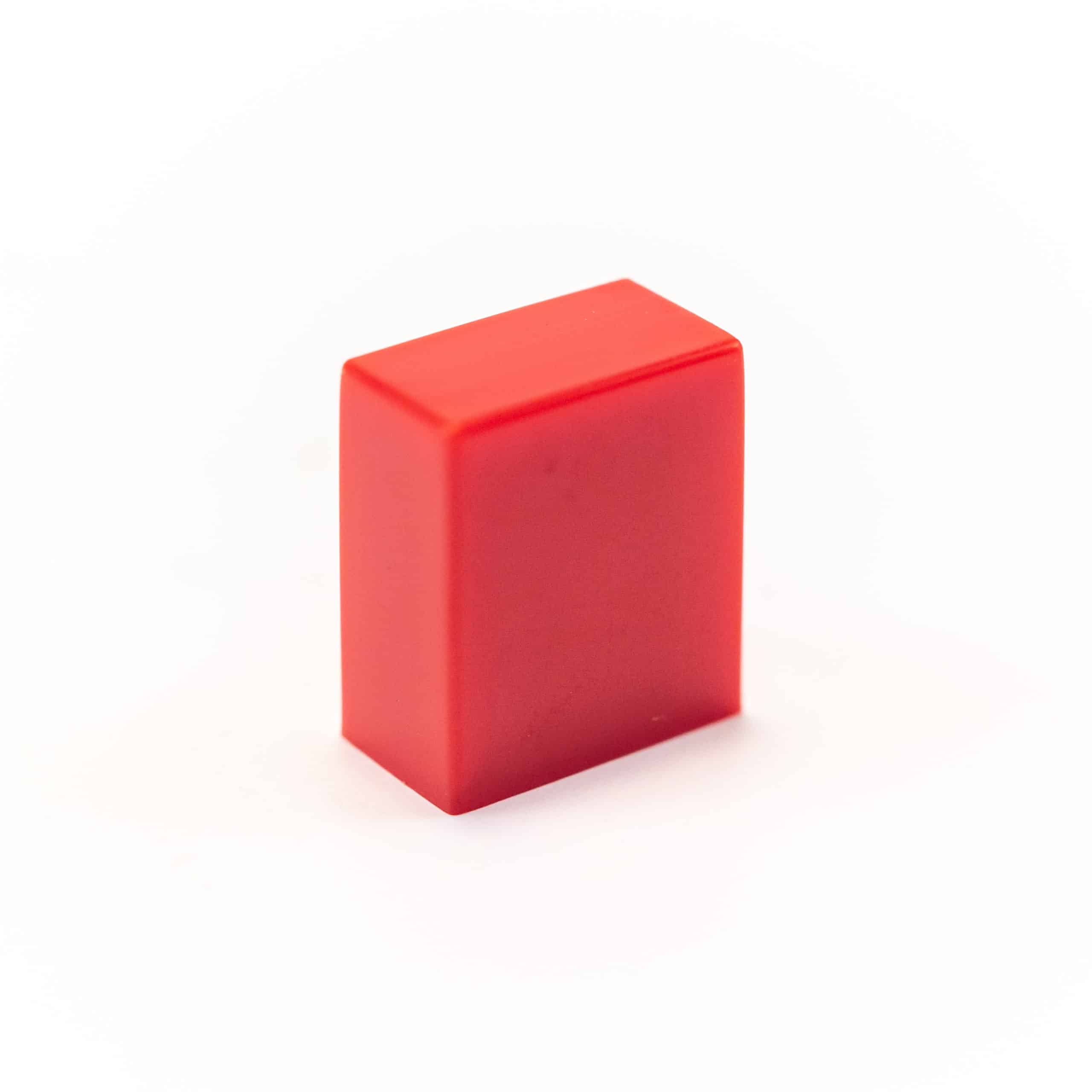

TAC

Color:Black (BLK), Grey(GRY), White WHT), Red (RED)
Dimension:Length: 9.80mm Width: 5.50mm Height: 11.20mm
Supported Switches:320, LC

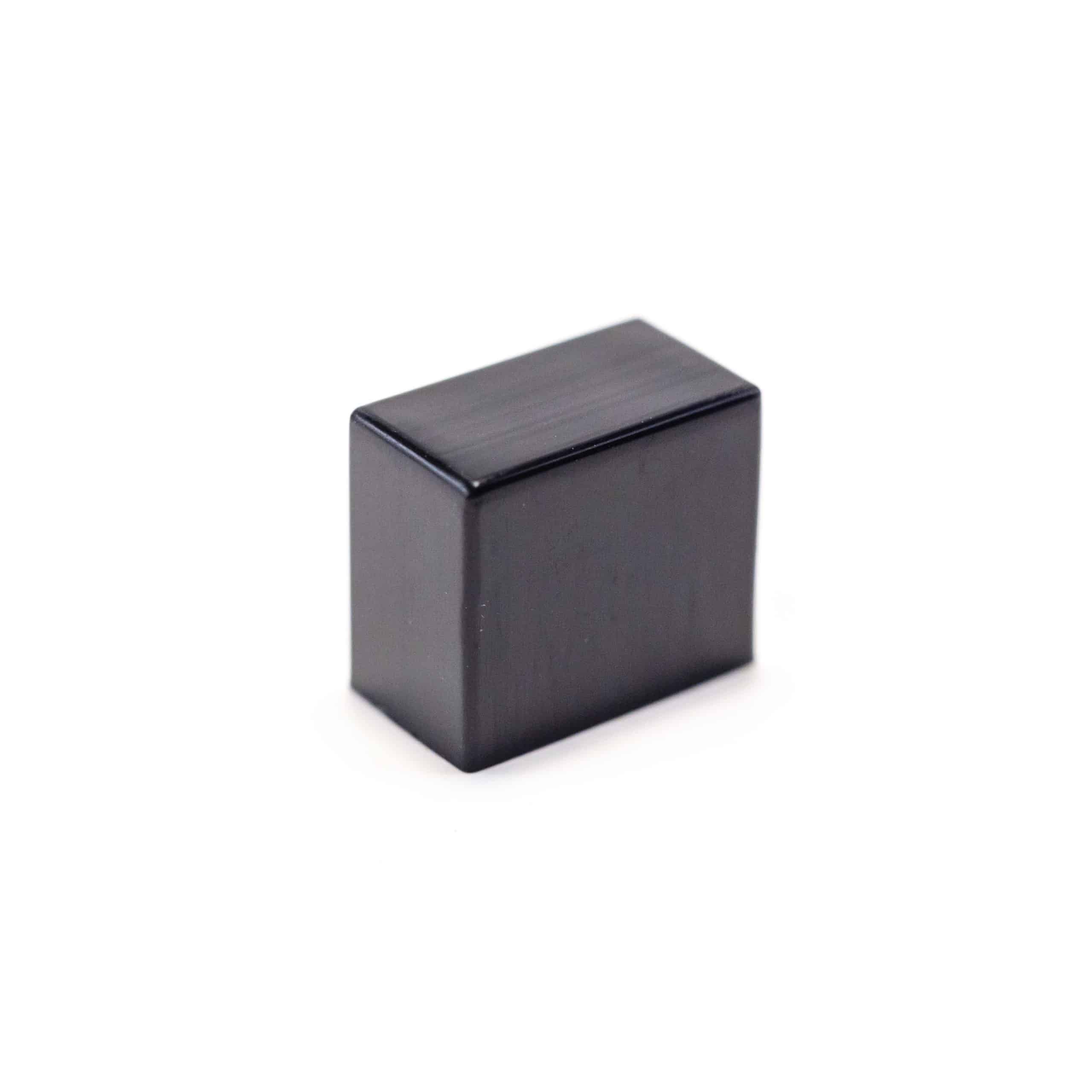

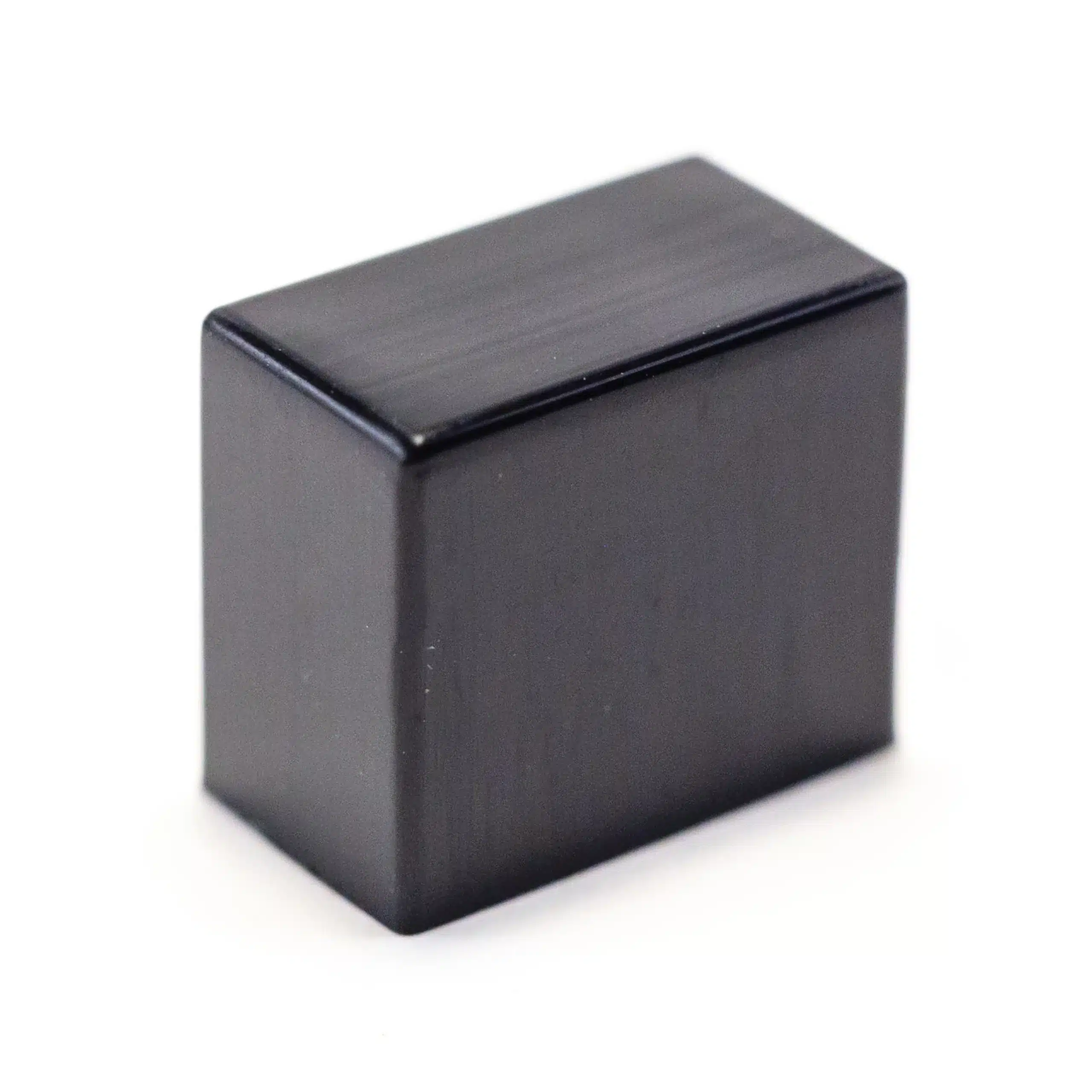

TAD

Color:Black (BLK), Grey(GRY), White (WHT), Red (RED)
Dimension:Length: 12.29mm Width: 7.18mm Height: 10.41mm
Supported Switches:LC

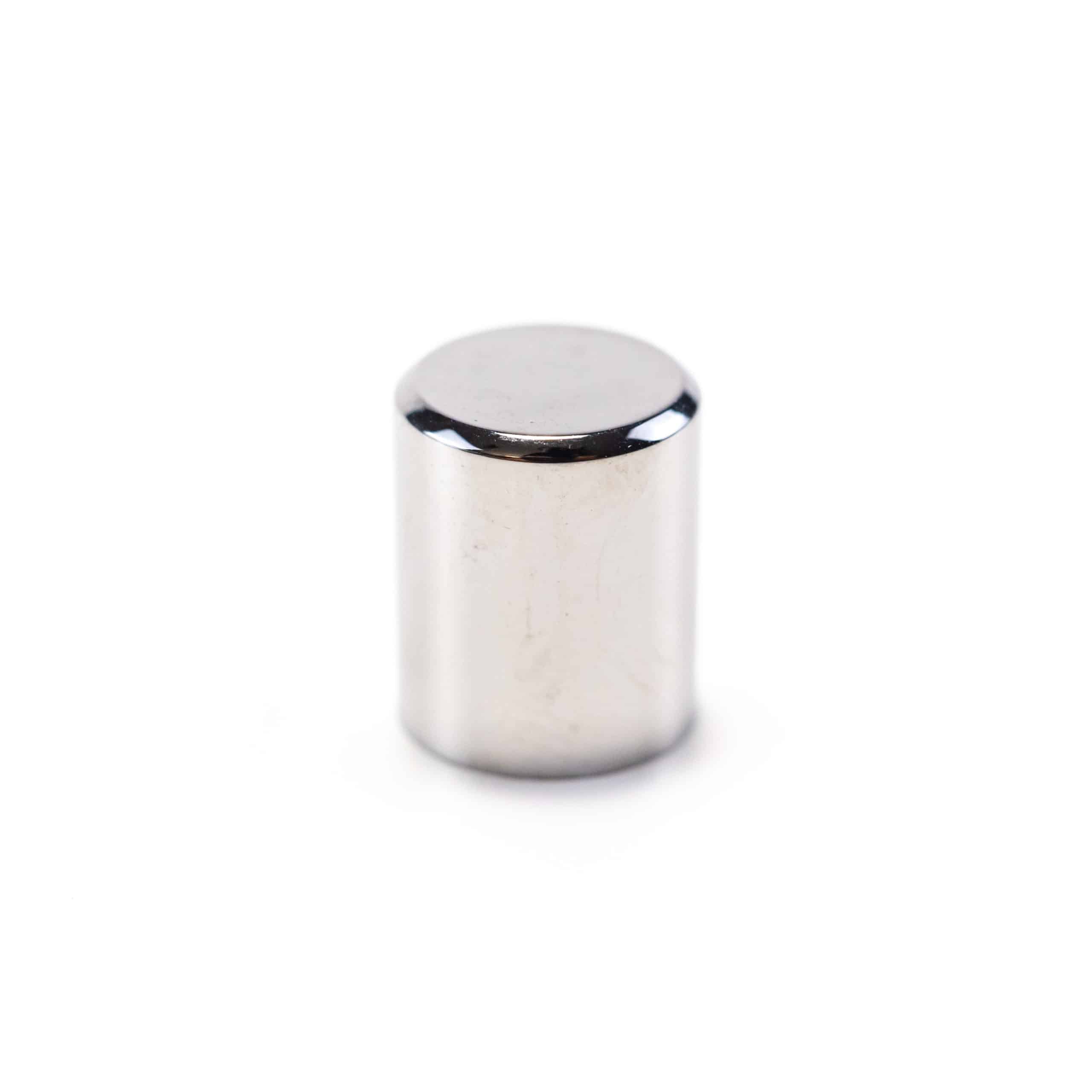

TAG

Color:Black (BLK), Grey(GRY), White (WHT), Red (RED)
Dimension:Diameter: 8.80mm Height: 10.50mm
Supported Switches:LC

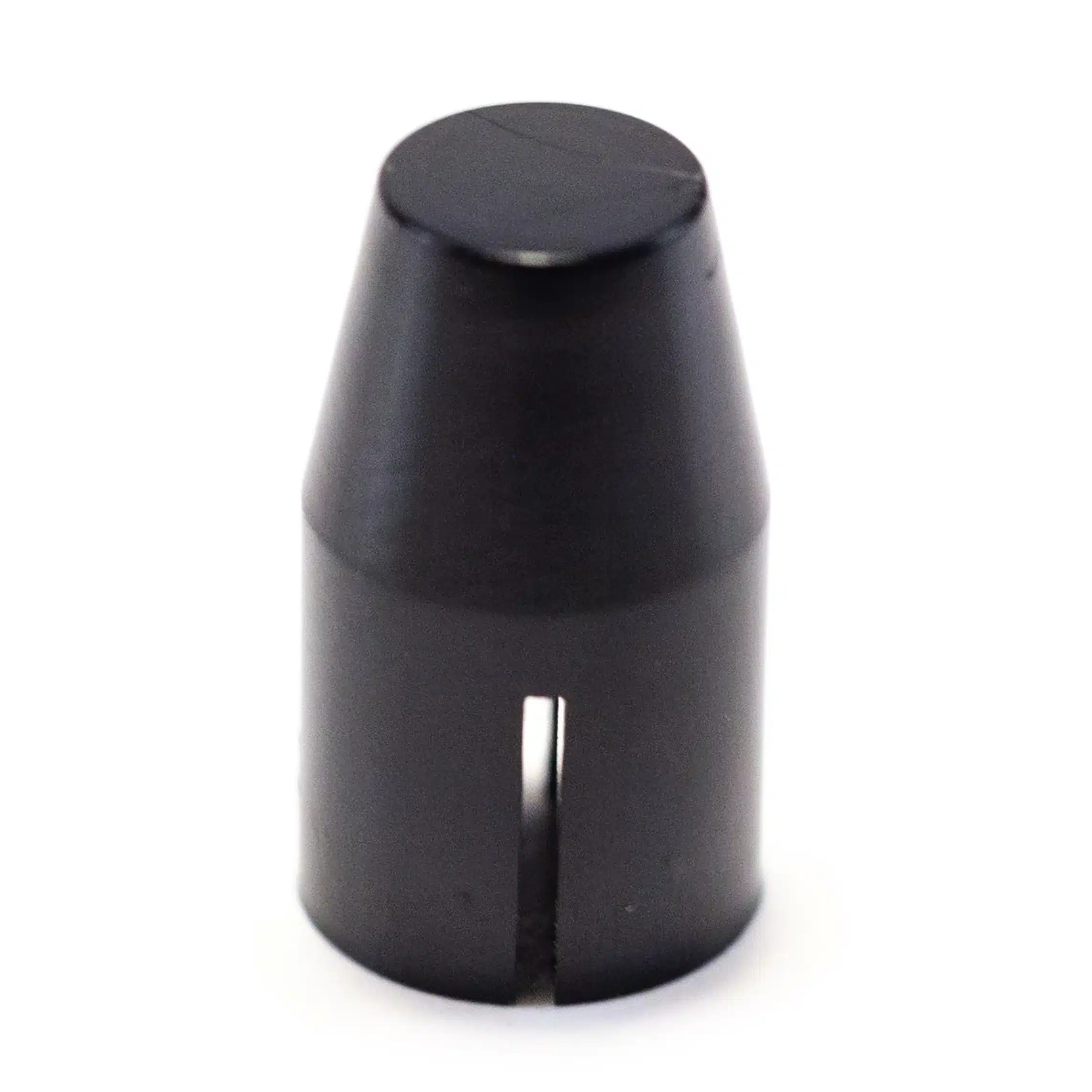

TAM

Color:Black (BLK), Grey(GRY), White (WHT)
Dimension:Diameter: 7.20mm Height: 12.50mm
Notes:These caps are for certain switches within the TL1100C series, plus the switches in the other listed series.
