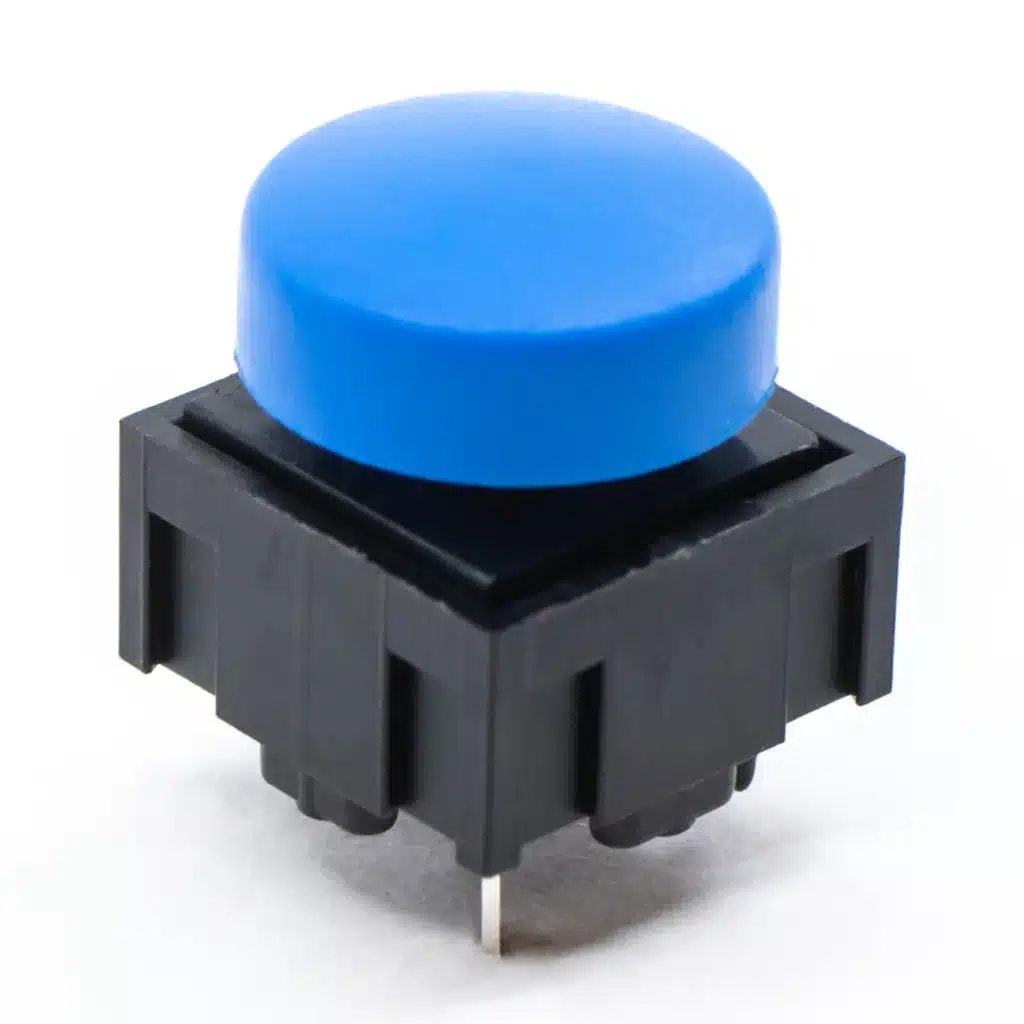

320 Series Tactile Pushbutton Switch
320 Series Tactile Pushbutton Switch
- 12.4mm x 12.4mm
- Through hole mounting design
- Many cap styles and colors available
- Many additional cap options
- 1,000,000 cycle life
- 135gf operating force
- 0.7mm travel
- -20°C to 70°C operating temperature
- Silver plated contacts
- 25mA @ 50VDC
- High reliability dome technology and excellent tactile feedback.
320 Series Tactile Pushbutton Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 25mA 50VDC
- ELECTRICAL LIFE: 1,000,000 Cycles Typical
- CONTACT RESISTANCE: 50mΩ Max. Typical at 2-4VDC, 100mA
- INSULATION RESISTANCE: 1,000MΩ Min.
- DIELECTRIC STRENGTH: >500VAC RMS at Sea Level
- OPERATING FORCE: 135gf ± 50gf
- OPERATING TEMP: -20°C to 70°C
- / MATERIALS /
- HOUSING: 6/6 Nylon
- COVER/CAP: ABS or Polycarbonate
- DOME CONTACT: Gold Over Stainless Steel
- TERMINALS/CONTACTS: Silver Plated Copper Alloy
