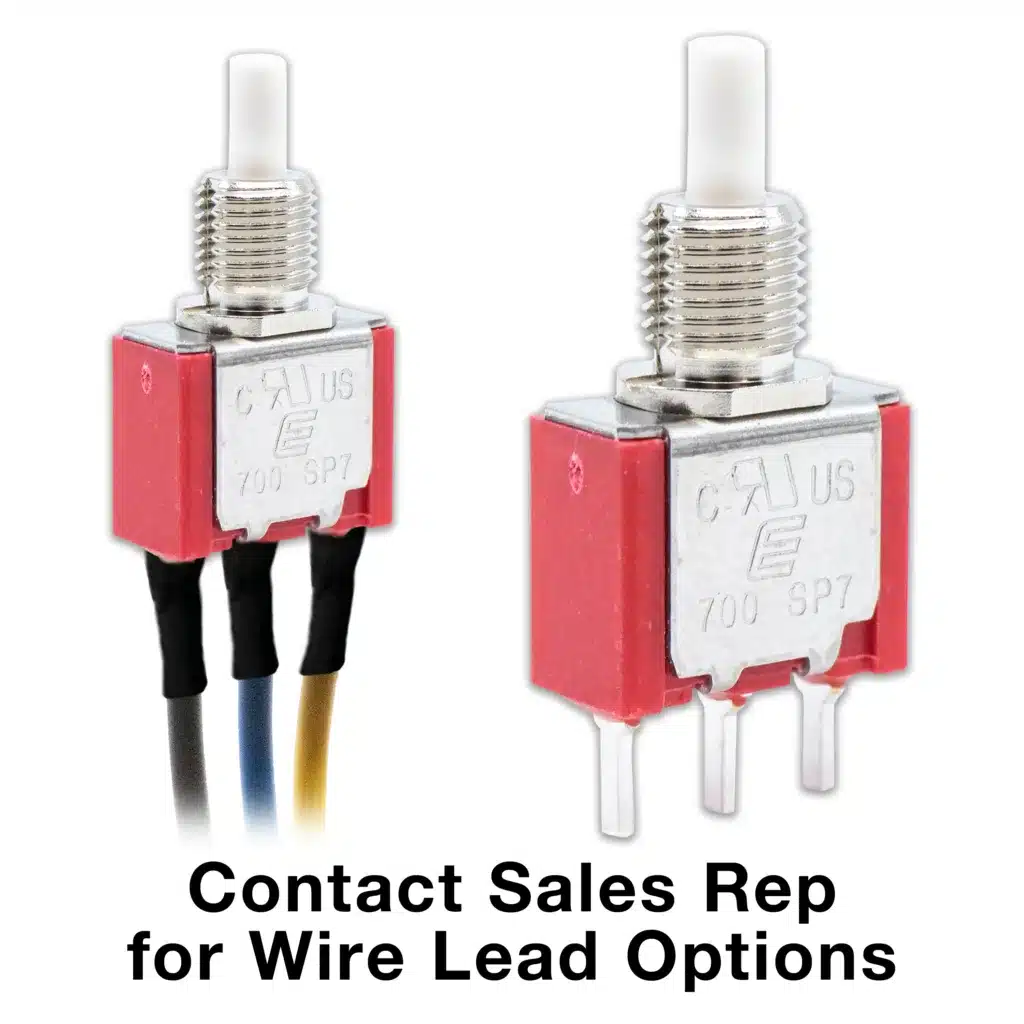

700 Series Snap-Acting Pushbutton Switch
700 Series Snap-Acting Pushbutton Switch
- Contact Ratings: 1A @ 250 VAC; 3A @ 120 VAC or 28 VDC
- Snap acting contact design
- Gold and silver contact options
- Multiple bushing and termination options
- Snap-in panel mount option
- 1 or 2 poles momentary functions
- Operating Temperature: -40°C to 85°C
- Life Expectancy: 50,000 cycles typical
700 Series Snap-Acting Pushbutton Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 1A, 250VAC; 3A, 120VAC or 28VDC
- LIFE EXPECTANCY: 50,000 Cycles Typical
- CONTACT RESISTANCE: 20mΩ Max. Typical at 2-4VDC; 100mA For Both Silver and Gold Plated Contacts
- INSULATION RESISTANCE: 1,000MΩ Min.
- DIELECTRIC STRENGTH: 1,000V RMS at Sea Level
- OPERATING FORCE: SP: 350 ± 150gf DP: 800 ± 200gf
- OPERATING/STORAGE TEMPERATURE: -40°C to 85°C
- TRAVEL: 1.20mm Typical
- / MATERIALS /
- CASE: Diallyl Phthalate (DAP)
- PLUNGER: Glass Filled Nylon or Glass Filled Polyester
- BUSHING: Nickel Plated Brass
- HOUSING: Stainless Steel
- CONTACTS: Silver or Gold Plated Copper Alloy
