TL3265 Series LED Illuminated, SMT Tactile Switch

The TL3265 Series LED illuminated, surface mountable tactile switch offers several LED color options. The TL3265 Series tactile switches are 6.8mm x 7mm with a 12mm profile. Multiple actuator styles are available, with caps coming in two diameters: 4.7mm and 5mm. This tactile switch has an electrical rating of 50mA of 12VDC current and a long life expectancy of 500,000 cycles. The TL3265 Series tact switch operates in temperatures of -20 to 70°C. T Applications for this switch include, but aren't limited to:

  • Audio/visual
  • Computer peripherals
  • Computer electronics
  • Instrumentation
  • Medical equipment
  • Telecommunication devices

FEATURES

  • 500,000 cycle life expectancy
  • Multiple cap options
  • Surface mount design
  • Illumination options

TL3265 Series LED Illuminated, SMT Tactile Switch

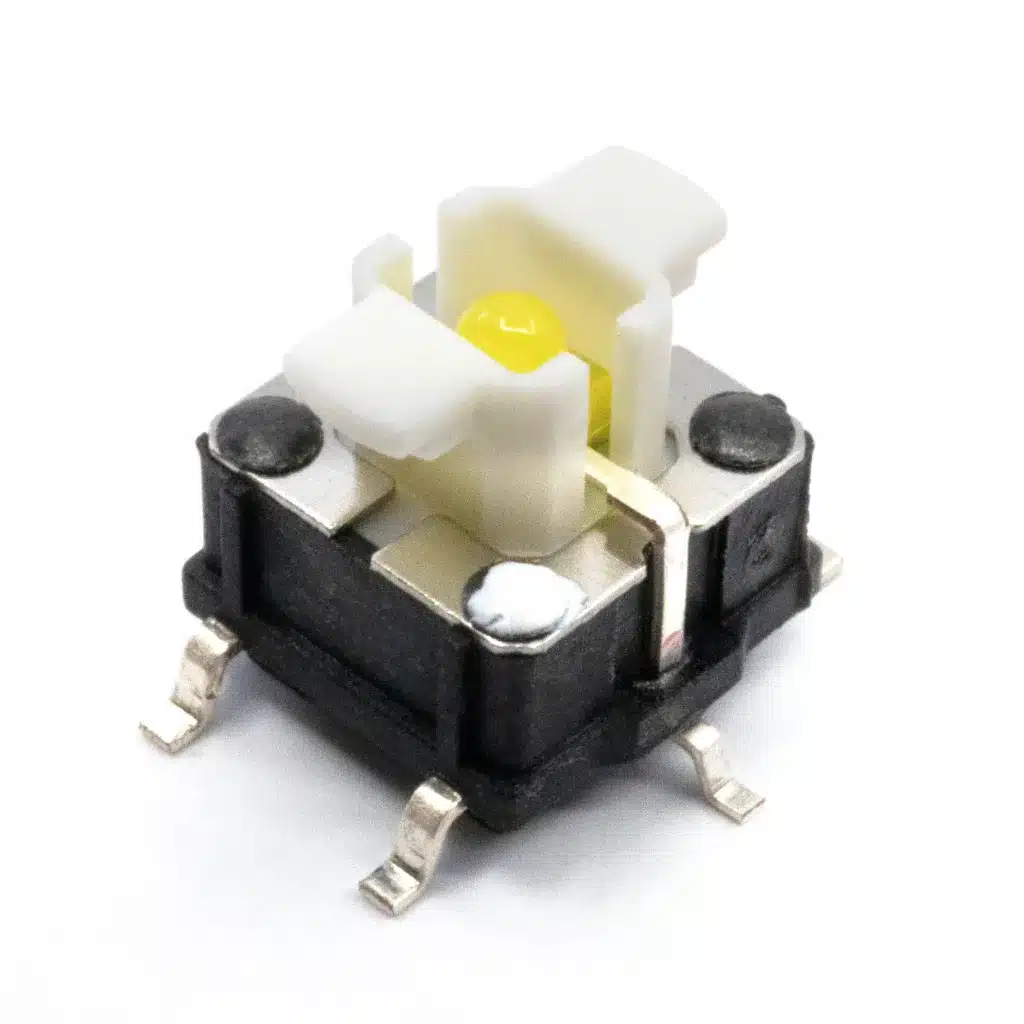

decoration Tl3265 Illuminate Yellow

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Tl3265 Illuminate Yellow

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

ELECTRICAL RATING: 50mA @ 12VDC LIFE EXPECTANCY: 500,000 Cycles CONTACT RESISTANCE: 100mΩ Max. INSULATION RESISTANCE: 100M Ω @ 500VDC DIELECTRIC STRENGTH: 500VAC for 1 min. OPERATING TEMPERATURE: -40°C to 85°C OPERATING FORCE: 160 gf TRAVEL: 0.20mm FUNCTION: SPST; Off-(On), Momentary
