TL3301 Series
Surface Mount (SMT) design
6mm x 6mm
Many actuator height options
Cap options for certain models
70gf operating force
1,000,000 cycle life
Gull wing or J lead termination
Silver or gold contact material
-40°C to 85°C operating temperature
50mA @ 12VDC
" />

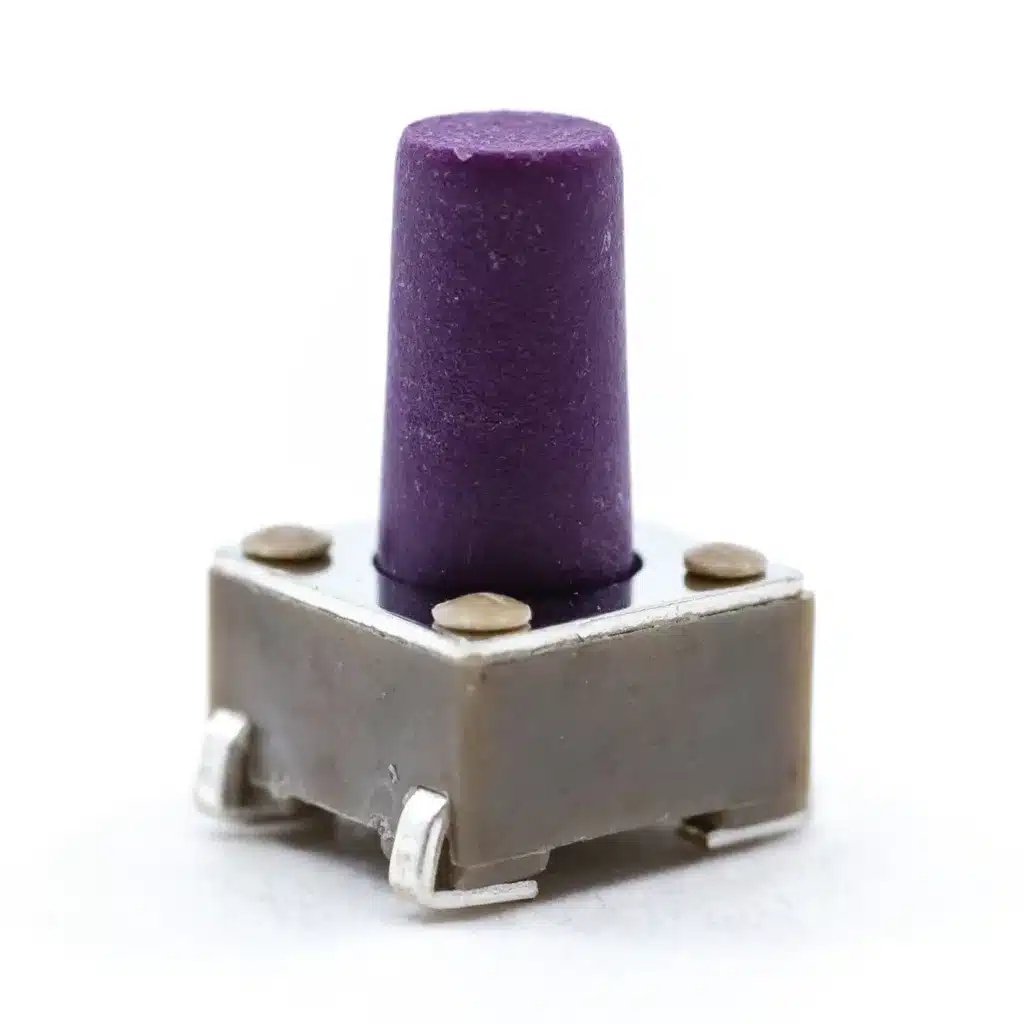

LL3301 Series Long Life SMT Tactile Switch
LL3301 Series Long Life SMT Tactile Switch
- Long life version of TL3301 Series
- Surface Mount (SMT) design
- 6mm x 6mm
- Many actuator height options
- Cap options for certain models
- 70gf operating force
- 1,000,000 cycle life
- Gull wing or J lead termination
- Silver or gold contact material
- -40°C to 85°C operating temperature
- 50mA @ 12VDC
LL3301 Series Long Life SMT Tactile Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 50mA @ 12VDC
- LIFE:EXPECTANCY: 1,000,000 Cycles
- CONTACT RESISTANCE: 100mΩ Max.
- INSULATION RESISTANCE: 100MΩ Min.
- DIELECTRIC STRENGTH: 250VAC
- ACTUATION FORCE: 70 ± 30 gram force
- OPERATING TEMPERATURE: -40°C to 85°C
- TRAVEL: 0.25mm
- SIZE: 6mm x 6mm SMT
