Read More900 Series Subminiature SMT Right Angle Detector Switch

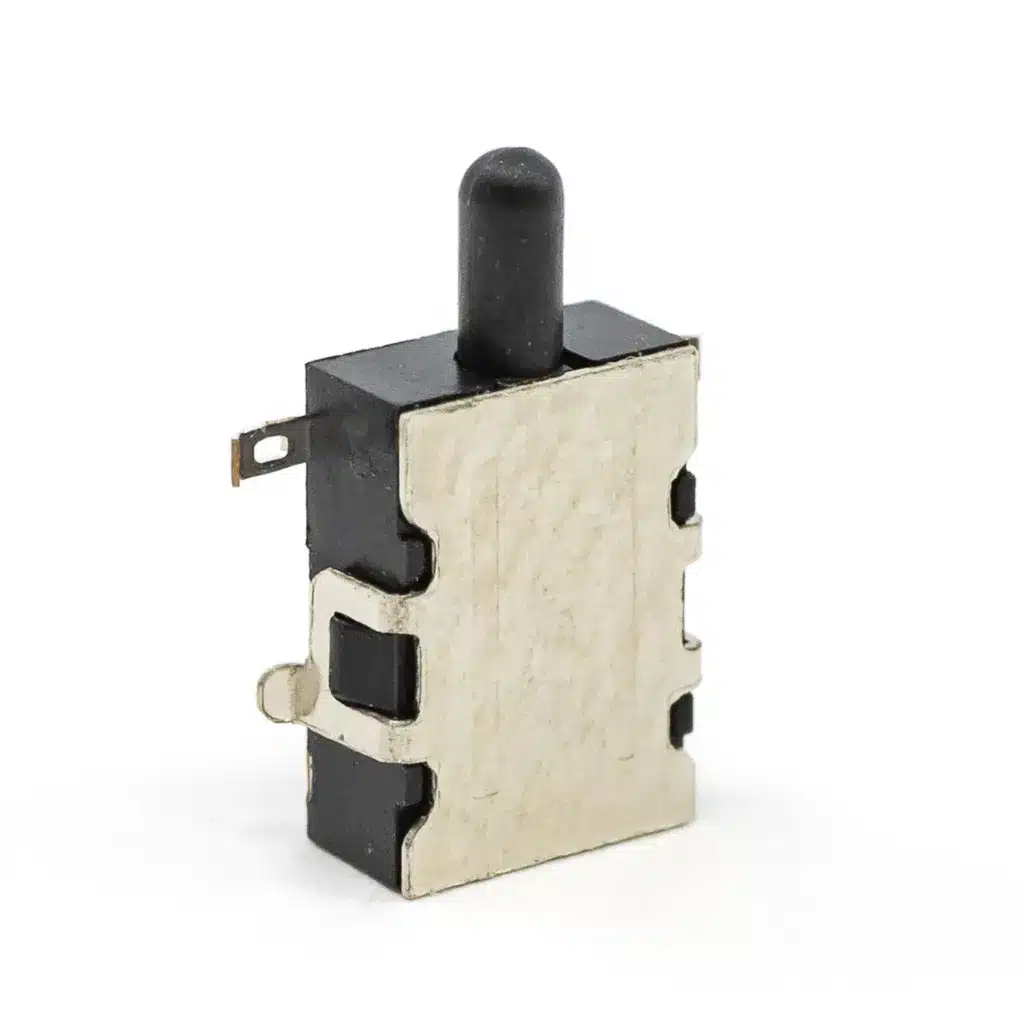

900 Series Subminiature SMT Right Angle Detector Switch
Stock Check for 900AGQ
Not the product you are looking for? Configure your product
DETECTOR, 100mA, 50VDC, SPST, Off-(On), Surface Mount

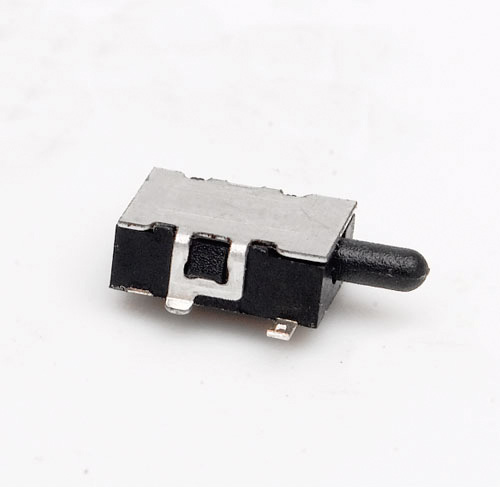

About 900 Series
- 100mA, 50VDC
- Surface mount right angle (SMT) design
- SPST-NC or SPST-NO circuit; momentary function
- 50gf max. operating force
- Mounting tabs option
- 2.0mm travel
- Silver contact material
- 50,000 cycle life typical
- -25°C to 85°C operating temperature
- Tape and reel packaging (1,900 pieces per reel)
900 Series Markets
Product Specifications
900AGQ
DETECTOR, 100mA, 50VDC, SPST, Off-(On), Surface Mount
- Series Name 900
- PackagingTape & Reel
- Current Rating100mA
- Voltage Rating50VDC
- CircuitSPST
- FunctionOff-(On)
- Mounting TypeSurface Mount
- Termination TypeGull Wing
- Contact MaterialSilver
- Actuator TypeOvertravel Plunger
- Actuator Height2.50mm
- Operating Force50gf
- Operating Temperature-25°C to 85°C
Support for 900AGQ
Not the product you are looking for? Configure your product
