700C Series Alternate Action, Miniature Pushbutton Switch
700C Series Alternate Action, Miniature Pushbutton Switch
- Push-on, push-off alternation action design
- Snap acting contact design
- Gold and silver contact options
- Contact Ratings
- Silver: 3A @ 120VAC or 28VDC, 1A @ 250 VAC
- Gold: 0.4 VA Max @ 20V (AC or DC) Max
- Through-hole mounting design
- 1 pole; latching function
- Variety of bushing and terminal options
- Life Expectancy: 50,000 Cycles
- Operating Temperature: -30°C to 85°C
- Long travel of 3.0mm

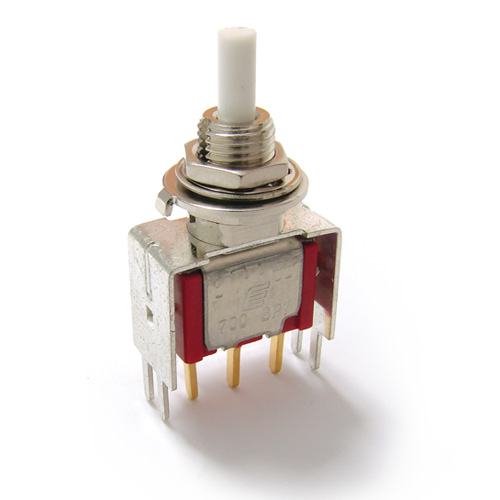

700C Series Alternate Action, Miniature Pushbutton Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: Gold: 0.4VA Max. @ 20V (AC or DC) Max.; Silver: 3A @ 120VAC or 28VDC; 1A @ 250VAC
- LIFE EXPECTANCY: 50,000 Cycles
- CONTACT RESISTANCE: 20mΩ
- INSULATION RESISTANCE: 1,000MΩ
- DIELECTRIC STRENGTH: 1,000V RMS
- OPERATING FORCE: SP7: 400 +/- 150g; DP7: 600 +/- 150g
- OPERATING/STORAGE TEMPERATURE: -30°C to 85°C
- TRAVEL: 3.0mm
- / MATERIALS /
- CASE: DAP, UL94V0
- ACTUATOR: Nylon, UL94V0
- FRAME: Stainless Steel
- CONTACTS: Brass, Silver or Gold Plated
- TERMINALS: Silver or Gold Plated Copper Alloy
