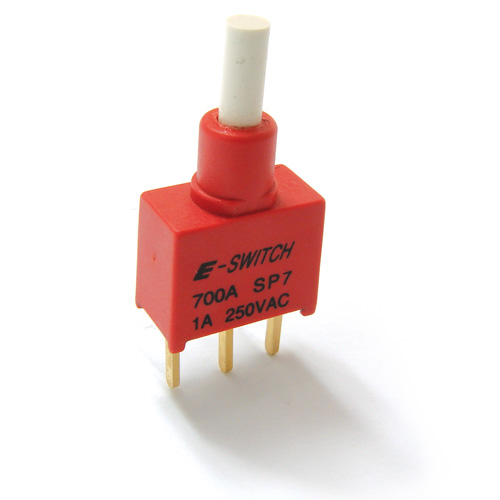

700A Series IP67 Sealed Pushbutton Switch
700A Series IP67 Sealed Pushbutton Switch
- IP67 sealed from dust and moisture
- Contact Ratings
- Silver: 3A @ 120VAC or 28VDC, 1A @ 250VAC
- Gold: 0.4 VA Max @ 20V (AC or DC) Max
- Snap acting contact design
- Gold and silver contact options
- Through-hole mounting design
- Multiple termination options: Right angle PCB pin, solder lug, vertical PCB pin, vertical PCB pin with bracket or wire wrap
- 1 or 2 poles; momentary functions
- Operating Temperature: -30°C to 85°C
- Travel: 1.0mm
- Life Expectancy: 50,000 cycles
700A Series IP67 Sealed Pushbutton Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: Gold: 0.4VA @ 20V (AC or DC) Max.
Silver: 3A @ 120VAC or 28VDC, 1A @ 250VAC
- LIFE EXPECTANCY: 50,000 Cycles
- CONTACT RESISTANCE: 20mΩ
- INSULATION RESISTANCE: 1000MΩ
- DIELECTRIC STRENGTH: 1500V RMS
- OPERATING/STORAGE TEMPERATURE: -30°C to 85°C
- / MATERIALS /
- HOUSING: Nylon, UL94V0
- ACTUATOR: Nylon, UL94V0
- CONTACTS: Brass, Silver or Gold Plated
- TERMINALS: Silver or Gold Plated Copper Alloy
