Electrical Ratings:
- Silver - 5A, 120VAC or 28VDC; 2A, 250VAC; UL, cUL
- Gold - 0.4VA max. @ 20V max. (AC or DC)
SPDT, DPDT, 3PDT, 4PDT, momentary or latching function
Fifteen types of Panel Mount and Through Hole mounting options including right angle, vertical, snap-in bracket
Multiple termination options including PCB pin, quick connect, and solder lug
Sixteen types of rocker and paddle actuator options
Many actuator color options
Silver or Gold contact material
Epoxy sealed terminals
-30°C to 85°C operating temperature
" />

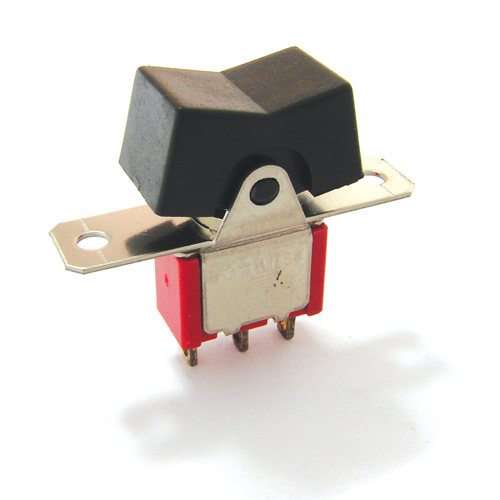

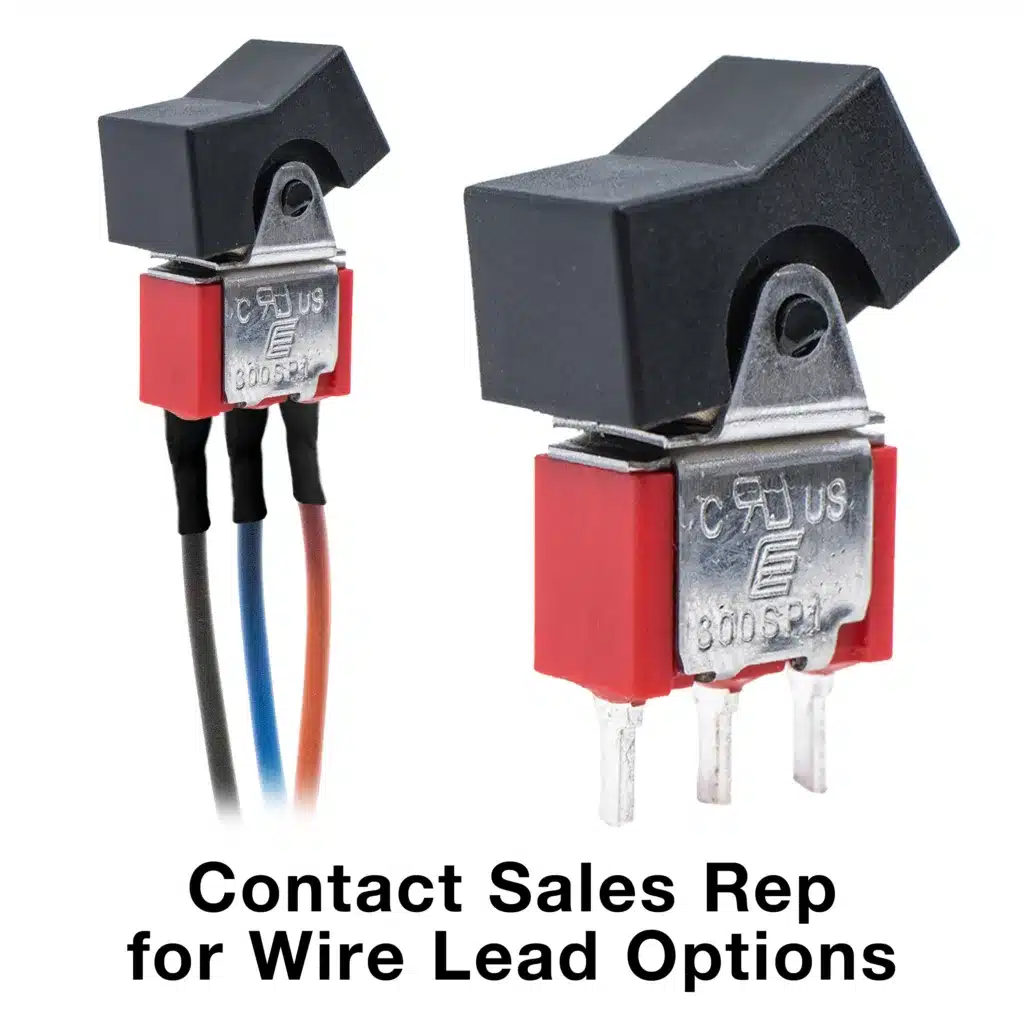

300 Series Miniature Rocker Switch
300 Series Miniature Rocker Switch
- Electrical Ratings:
- Silver - 5A, 120VAC or 28VDC; 2A, 250VAC; UL, cUL
- Gold - 0.4VA max. @ 20V max. (AC or DC)
- SPDT, DPDT, 3PDT, 4PDT, momentary or latching function
- Fifteen types of Panel Mount and Through Hole mounting options including right angle, vertical, snap-in bracket
- Multiple termination options including PCB pin, quick connect, and solder lug
- Sixteen types of rocker and paddle actuator options
- Many actuator color options
- Silver or Gold contact material
- Epoxy sealed terminals
- -30°C to 85°C operating temperature
300 Series Miniature Rocker Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- CONTACT RATING: Dependent Upon Contact Material
- MECHANICAL LIFE: 40,000 Make-or-break cycles
- ELECTRONIC LIFE: 6,000 Make-or-break cycles at full load
- CONTACT RESISTANCE: 10mΩ Max. Initial
- INSULATION RESISTANCE: 1,000MΩ Min.
- DIELECTRIC STRENGTH: 1,000V RMS for 1 Minute
- OPERATING TEMPERATURE: -30°C to 85°C
- / MATERIALS /
- TERMINAL/SWITCH SUPPORT: Brass or Steel Electrotin Plated
- CONTACTS/TERMINALS: Silver or Gold Plated Copper Alloy
