For the most demanding of applications, a UL listed switch is required to ensure that the component has been found to meet the safety and performance standards of the Underwriters Laboratories. UL certified switches have undergone rigorous testing to meet safety standards, including temperature ratings and mechanical performance. For these reasons, you’ll commonly find UL listed switches on products that are installed in harsh environments, such as the medical, marine, industrial and agricultural markets.
Below, you’ll find sections for E-Switch’s UL listed products, including pushbutton, anti-vandal, rocker, toggle, snap action, slide, detector, keylock, pilot light and emergency stop switches. To view all our agency certification lists, visit this page.
UL Listed for Auxiliary Devices – Component
These switches have been tested by UL and certified to meet the safety standards required of an auxiliary device component as part of a larger system, like a control panel.

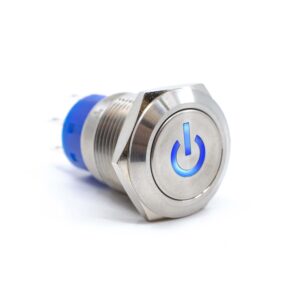

ULV4 Series Illuminated, Anti-Vandal Switch: VIEW DATA SHEET | CONFIGURATOR
- 19mm diameter panel cutout
- Electrical rating: 3A, 125/250VAC (UL Certified)
- Dot, ring, ring/power symbol, standard or custom graphic illumination options
- SPDT or DPDT; Momentary or latching functions
- IP67 rated

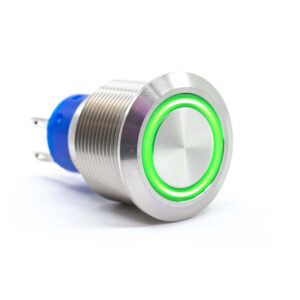

ULV7 Series Illuminated, Anti-Vandal Switch: VIEW DATA SHEET | CONFIGURATOR
- 22mm diameter panel cutout
- Electrical rating: 3A, 125/250VAC (UL Certified)
- Illuminated ring, ring and power symbol or custom graphic option (43 choices)
- SPDT or DPDT circuit; momentary or latching functions
- Solder, wire leads, detachable socket w/ wire leads or molded back w/ wire leads

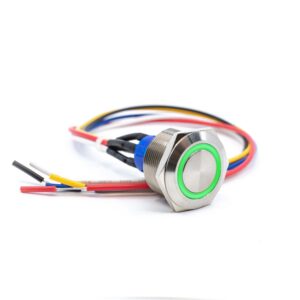

ULV8 Series Illuminated, Anti-Vandal Switch: VIEW DATA SHEET | CONFIGURATOR
- 25mm diameter panel cutout
- Electrical rating: 3A, 125/250VAC (UL Certified)
- Ring, ring/power symbol and standard graphic illumination options
- SPDT or DPDT; momentary or latching
- IP67 rated

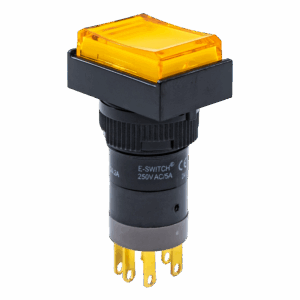

P16 Series Illuminated Pushbutton Switch: VIEW DATA SHEET | CONFIGURATOR
- 16mm diameter panel cutout
- Electrical rating: Up to 8A, 125VAC (UL Certified)
- SPDT circuit; Momentary or latching function
- Circular, rectangular or square head; high bezel option
- Illuminated options (LED, neon, incandescent)

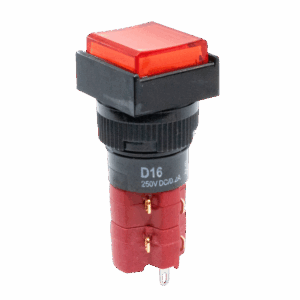

D16 Series Illuminated Pushbutton Switch: VIEW DATA SHEET | CONFIGURATOR
- 16mm diameter panel cutout
- Electrical rating: Up to 8A, 125VAC (UL Certified)
- SPDT, DPDT, 3PDT or 4PDT; momentary or latching
- Circular, rectangular or square head; high bezel option
- Illuminated options (LED, neon, incandescent)

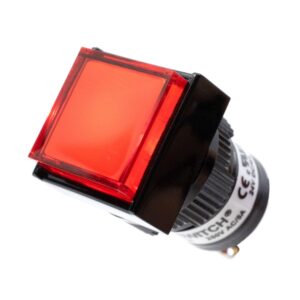

L16 Series Illuminated Pilot Indicator: VIEW DATA SHEET | CONFIGURATOR
- 16mm diameter panel cutout
- Circular, rectangular or square head; high bezel option
- Illuminated options (LED, neon, incandescent)
- Variety of lamp and lens color options
- Solder termination
E100 Series Emergency Stop, Pushbutton Switch: VIEW DATA SHEET | CONFIGURATOR
- 16mm diameter panel cutout size
- IP65 rated
- Easy operation, high actuation force, pushlock turn design to reset
- Multiple illumination options (Neon, LED, Incandescent)
- Contact Arrangement options: 1NC, 1NC+1NO, 1NC/1NC

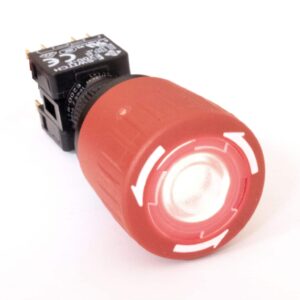

E200 Series Emergency Stop, Pushbutton Switch: VIEW DATA SHEET | CONFIGURATOR
- 16mm diameter panel cutout size
- IP65 rated
- Easy operation, high actuation force, pushlock turn design to reset
- Contact Arrangement options: 1NO/1NC+1NO/1NC, 1NO/1NC, 2NO, 1NO
- Multiple illumination options: LED, neon, incandescent
- Contact Rating: 8A 125VAC, 6A 24VDC, 200mA 250VDC; 5A 250VAC
UL Listed for Motor Controls, Manual – Component
These switches have been tested by UL and certified to meet the safety standards required of a component for starting and stopping motors.

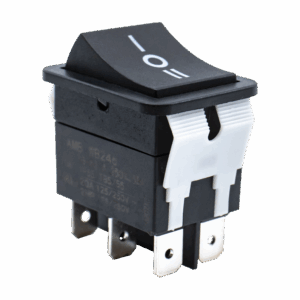

WB2 Series Sealed, Power Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- 30mm x 22mm panel cutout
- Electrical rating: Up to 20A, 125VAC, 2HP
- IP55 rated
- DPST or DPDT; two or three positions; momentary or latching
- Quick connect or wire leads termination
- Multiple housing and actuator color and marking options
UL Listed for Switches, Industrial Control – Component
These switches have been tested by UL and certified to meet the safety standards required of a component for use in industrial control panels.
KJE32 Series Heavy Duty, Industrial Power Pushbutton Switch: VIEW DATA SHEET | CONFIGURATOR
- 46mm x 22mm x 2.5mm panel cutout
- Electromagnet provides automatic safety against power outages and restarts
- Contact Ratings (TUV and UL listed)
- 20(20)A 250VAC 1E5 T85/55 TUV(EN61058)
- 20(20)A 127VAC 1E5 T85/55 TUV(EN61058)
- 20(20)A 127VAC 1E5 T85/55 UL (EN61058)
- 25.1A 60VDC 10E4 T85/55 UL(EN61058)
- PVC cap for dust and water protection – IP55 rating
- Six different function options (2NO, 2NO w/ remote trip, NO + NC w/ remote trip, NO + NC, 2NO + NC, 2NO + NC w/ remote trip)

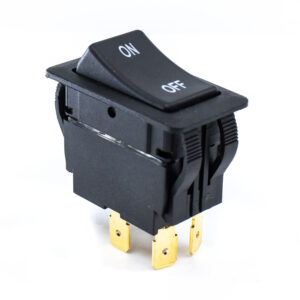

RVW Series Sealed, Power Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- 37.5mm x 21mm panel cutout
- Electrical rating: Up to 20A, 125VAC 2HP
- IP54 rated
- SP or DP; two or three position circuit functions
- Tabs, solder or screw termination

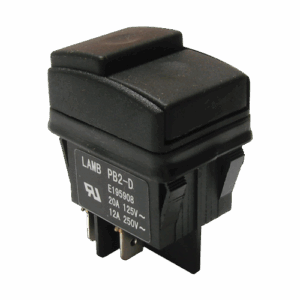

PB2 Series Illuminated, Power Pushbutton Switch: VIEW DATA SHEET | CONFIGURATOR
- 22mm x 30mm panel cutout
- IP54 rating for dust and moisture resistance
- Electrical rating: Up to 20A, 125VAC
- Single-pole and double-pole functions
- Multiple illumination voltage options and lens colors
MORE: UL Listed for Switches, Appliance and Special Use – Component
These switches have been tested by UL and certified to meet the safety standards required of components designed for installation into specific equipment, like a vacuum or heater.
UL Listed Pushbutton Switches
PB1973 Series Illuminated, Power Pushbutton Switch: VIEW DATA SHEET | CONFIGURATOR
- Electrical Rating: 15A @ 250VAC; 10A @ 250VAC
- 13mm x 19.2mm panel cutout
- Full illumination options and multiple actuator colors
PR1 Series Illuminated, Power Pushbutton Switch with PVC Cap: VIEW DATA SHEET | CONFIGURATOR
- 25mm diameter panel cutout
- 16A, 125VAC
- SPST or DPST circuit; latching or momentary function
700 Series Snap-Acting Pushbutton Switch: VIEW DATA SHEET | CONFIGURATOR
- Contact Ratings: 1A @ 250VAC; 3A @ 120VAC or 28VDC
- Snap acting contact design
- Gold and silver contact options
800 Series Subminiature Pushbutton Switch: VIEW DATA SHEET | CONFIGURATOR
- Contact Rating: 3A @ 120VAC or 28VDC, 1A @ 250VAC
- Subminiature design
- Butt contact design
800A Series Sealed, Subminiature Pushbutton Switch: VIEW DATA SHEET | CONFIGURATOR
- IP67 sealed for dust and moisture protection
- Contact Rating: 3A @ 120VAC or 28VDC, 1A @ 250VAC
- Subminiature design
RP3508 Series Illuminated Pushbutton Switch: VIEW DATA SHEET | CONFIGURATOR
- Electrical Rating: 3A @ 125VAC, 1.5A @ 250VAC
- 15mm x 16mm rounded edge panel cutout
- Full LED illumination options
PA4 Series Illuminated, Power Pushbutton Switch: VIEW DATA SHEET | CONFIGURATOR
- High power rating: 16A 125/250VAC
- 13mm x 19mm panel cutout
- Standard and water-resistant (IP54) versions
PA5 Series Illuminated, Power Pushbutton Switch: VIEW DATA SHEET | CONFIGURATOR
- High power rating: 16A 125/250VAC
- Operates in temperatures ranging from -20°C to +125°C
- SPST or DPST circuits; maintained (latching) or momentary pushbuttons
PB66 Series Illuminated, Power Pushbutton Switch: VIEW DATA SHEET | CONFIGURATOR
- 25mm cutout size; IP66 rated
- 16(16)A 127VAC
- Power symbol illuminated or laser etched
ULP Series Illuminated Pushbutton Switch: VIEW DATA SHEET | CONFIGURATOR
- Through hole or panel mount snap-in
- 500mA, 25VDC (Silver); 100mA, 28VDC (Gold)
- SPDT or DPDT circuit; latching or momentary function
UL Listed Keylock Switches
KO Series Keylock Switch: VIEW DATA SHEET | CONFIGURATOR
- Variety of size and product package options
- Variety of key types and key pull options
- Barrel and flat key options
UL Listed Anti-Vandal Switches
SV4 Series Illuminated, Short Body Anti-Vandal Switch: VIEW DATA SHEET | CONFIGURATOR
- 19mm panel cutout
- 2A, 36VDC; IP67 rated
- SPST circuit; momentary function
SV7 Series Illuminated, Short Body Anti-Vandal Switch: VIEW DATA SHEET | CONFIGURATOR
- 22mm panel cutout
- 2A, 36VDC; IP67 rated
- SPST circuit; momentary function
SV8 Series Illuminated, Short Body Anti-Vandal Switch: VIEW DATA SHEET | CONFIGURATOR
- 25mm panel cutout
- 2A, 36VDC; IP67 rated
- SPST circuit; momentary function
UL Listed Snap Action Switches
LS Series Snap Action Switch: VIEW DATA SHEET | CONFIGURATOR
- Electrical Ratings:
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 15A, 125/250VAC
- SPDT, SPST-NC or SPST-NO circuit; momentary function
- Pin plunger, lever, roller or simulated roller actuator options
MS Series Miniature Snap Action Switch: VIEW DATA SHEET | CONFIGURATOR
- Electrical Ratings:
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 5A, 125/250VAC
- SPDT or SPST-NO circuit; momentary function
- Chassis mount, through hole or through hole right angle mounting options
LS25 Series Miniature Snap Action Switch: VIEW DATA SHEET | CONFIGURATOR
- Electrical Ratings:
- Silver – 25A, 125/250VAC
- SPDT circuit; On-(Off) momentary function
- Pin plunger, lever, roller or simulated roller actuator options
SS Series Subminiature Snap Action Switch: VIEW DATA SHEET | CONFIGURATOR
- Electrical Ratings:
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 3A, 125VAC; 1.5A, 250VAC
- Silver – 0.1A, 125VAC / 5VDC
- SPDT circuit; momentary function
- Solder lug, PCB pin, PCB retention, or right/left angled PCB pin termination options
WS Series Sealed Snap Action Switch: VIEW DATA SHEET | CONFIGURATOR
- IP67
- Electrical ratings:
- 0.5A 42VDC, 1A 24VDC, 2A 12VDC, 3A 125/250VAC
- SPDT circuit; momentary function
WS1 Series Sealed Snap Action Switch: VIEW DATA SHEET | CONFIGURATOR
- IP67
- Electrical ratings:
- 0.1A 48VDC or 125/250VAC
- 3A 12VDC or 125/250VAC
- SPDT circuit; latching function
WS2 Series Sealed Snap Action Switch: VIEW DATA SHEET | CONFIGURATOR
- IP67
- Electrical ratings:
- 2A 30VDC or 250VAC
- SPDT circuit; latching function
UL Listed Rocker Switches
R1966 Series Illuminated, Power Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- 19.2mm x 13mm panel cutout
- Electrical Rating: 15A, 125VAC; 10A, 250VAC T105/55; 6A, 250VAC T85/55
- SPST or SPDT, momentary or latching function
R1973 Series Illuminated, Power Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- 19.2mm x 13mm panel cutout
- 9A, 125VAC; UL, cUL; 6A, 250VAC
- SPST or DPST, momentary or latching function
R4 Series Illuminated, Power Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- 30mm x 11mm panel cutout
- Electrical Ratings:
- 20A, 125VAC; 16A, 250VAC (circuits A, B, C, E, F, H, J)
- 15A, 125VAC; 10A, 250VAC (circuits D, G, I)
- SPST or SPDT, momentary or latching function
R5 Series Illuminated, Power Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- 30mm x 22mm panel cutout
- Electrical Rating:
- 20A, 125VAC, 3/4HP
- 16A, 250VAC, 1HP (circuits A, B, C, E, F, H)
- 15A, 125VAC; 10A, 250VAC (circuits D, G, I)
- DPST or DPDT, momentary or latching function
R6 Series Slim, Power Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- 19.2mm x 6.65mm panel cutout
- 10A, 125VAC; 6A, 250VAC; 4A, 250VAC
- SPST, momentary or latching function
R7 Series Sealed, Illuminated, Power Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- 37mm x 21.2mm panel cutout
- Electrical Ratings / Temp:
- B – 20(8)A @ 125/250VAC, µT55
- D – 16A @ 6-30VDC, µT55
- 2 – 20(8)A @ 125/250VAC, µT85/T55
- 4 – 16A @ 6-30VDC, µT85/T55
- 8 – 20(8)A @ 125/250VAC, µ40T85/T55
- 9 – 16A @ 6-30VDC, µ40T85/T55
- IP67 (Ratings B, D); IP40 (Ratings 2, 4, 8, 9)
RA1 Series Illuminated, Power Rocker Switch with PVC Cap: VIEW DATA SHEET | CONFIGURATOR
- 19.2mm x 13mm panel cutout
- Electrical Ratings:
- 10A, 125VAC (Rating 3)
- 16A, 125VAC, 1/3HP; 10A, 250VAC, 1/3HP (Rating C)
- SPST or SPDT; momentary or latching function
RA2 Series Dual Power Rocker Switch with PVC Cap: VIEW DATA SHEET | CONFIGURATOR
- 22mm x 19.2mm panel cutout
- Electrical Ratings:
- 10A, 125VAC (Rating 3)
- 16A, 125VAC, 1/3HP; 10A, 250VAC, 1/3HP (Rating C)
- SPST or SPDT; momentary or latching function
RA4 Series Illuminated, Power Rocker Switch with PVC Cap: VIEW DATA SHEET | CONFIGURATOR
- 22mm x 19.2mm panel cutout
- Electrical Ratings:
- 10A, 125VAC (Rating 3)
- 16A, 125VAC, 1/3HP; 10A, 250VAC, 1/3HP (Rating C)
- Single or double-pole circuits with up to three actuator positions
RA8 Series Illuminated, Power Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- 19.2mm x 13mm panel cutout
- Electrical Ratings:
- 10A, 125VAC (Rating 3)
- 16A, 125VAC, 1/3HP T105; 10A, 250VAC, 1/3HP T105 (Rating C)
- SPST or DPST; latching function
RB3 Series Sealed, Illuminated, Power Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- 30.2mm x 13.8mm panel cutout
- Up to 25A, 125VAC; IP67 rated
- SPST or SPDT; momentary or latching function
RB5 Series Sealed, Illuminated, Power Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- 30.2mm x 22mm panel cutout
- Up to 25A, 125VAC; IP67 rated
- DPST or DPDT; momentary or latching function
RD1 Series Compact, Power Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- 19.2mm x 6.8mm panel cutout
- Up to 16A, 125VAC, 1/3HP
- SPST; latching function
RE1 Series Oval, Illuminated, Power Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- 23.3mm x 13.5mm – oval panel cutout
- Up to 16A, 125VAC, 1/3HP
- SPST or SPDT; latching function
RRA Series Round, Illuminated, Power Rocker Switch with PVC Cap: VIEW DATA SHEET | CONFIGURATOR
- 22mm panel cutout
- Up to 15A, 125VAC, 1/3HP
- 1 or 2 poles; 2 or 3 positions; latching function
RR1 Series Round, Illuminated, Power Rocker Switch with PVC Cap: VIEW DATA SHEET | CONFIGURATOR
- 20mm panel cutout
- Up to 16A, 125VAC, 1/3HP
- SPST or SPDT; latching function
RR5 Series Round, Power Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- 20mm panel cutout
- Electrical Rating: 20A 125VAC; 12A 250VAC
- SPST; momentary or latching function
RR8 Series Round, Illuminated, Power Rocker Switch with PVC Cap: VIEW DATA SHEET | CONFIGURATOR
- 20mm diameter panel cutout
- Up to 16A, 125VAC, 1/3HP
- DPST; Off-On
RR3112 Series Round, Illuminated, Power Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- 20.2mm panel cutout
- 16A 125VAC, 10A 250VAC
- SPST or SPDT; momentary or latching function
RR3130 Series Round, Power Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- 18.2mm panel cutout
- 10A 125VAC, 6A 250VAC; UL, cUL
- 1 or 2 pole; single or double throw
RR3402 Series Round, Paddle Style, Power Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- 15mm panel cutout
- 6A 125VAC, 3A 250VAC
- SPST or SPDT; latching function
RB1 Series Illuminated, Power Rocker Switch with PVC Cap: VIEW DATA SHEET | CONFIGURATOR
- 30mm x 11mm panel cutout
- Up to 20A, 125VAC, 3/4HP
- SPST or SPDT; momentary or latching function
RB2 Series Illuminated, Power Rocker Switch with PVC Cap: VIEW DATA SHEET | CONFIGURATOR
- 30mm x 22mm panel cutout
- Up to 20A, 125VAC, 3/4HP
- DPST or DPDT; momentary or latching function
RRG3 Series Round, Power Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- 20mm panel cutout
- Up to 16A, 125VAC, 1/3HP
- SPST or SPDT; momentary or latching function
RSC Series Illuminated, Power Rocker Switch with Bi-Color Actuator: VIEW DATA SHEET | CONFIGURATOR
- Four different panel cutout options between 12.1mm and 13.9mm x 27.2mm and 28.6mm
- Up to 20A, 125VAC, 1/4HP
- SPST or SPDT; momentary or latching function
RBW2 Series Sealed, Illuminated, Power Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- 30mm x 22mm panel cutout; IP66 rated
- Electrical Ratings:
- 16A, 125VAC, 1/3HP
- 10A, 250VAC
- DPST or DPDT; latching function
300 Series Miniature Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- Electrical Ratings:
- Silver – 5A, 120VAC or 28VDC; 2A, 250VAC
- Gold – 0.4VA max. @ 20V max. (AC or DC)
- SPDT, DPDT, 3PDT, 4PDT; momentary or latching function
- 13 of panel mount and through hole mounting options, including right angle, vertical and snap-in bracket
300A Series Sealed, Miniature Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- Electrical Ratings:
- Silver – 5A, 120VAC or 28VDC; 2A, 250VAC
- Gold – 0.4VA max. @ 20V max. (AC or DC)
- SPDT, DPDT; momentary or latching function; IP67 rated
- Eight types of panel mount and through hole mounting options, including right angle, vertical and snap-in bracket
400A Series Sealed, Subminiature Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- Electrical Ratings:
- Silver – 3A, 120VAC or 28VDC; 1A, 250VAC
- Gold – 0.4VA max. @ 20V max. (AC or DC)
- SPDT, DPDT; momentary or latching function; IP67 rated
- Eight types of panel mount and through hole mounting options including right angle, vertical, with bracket
400B Series Sealed, Subminiature, SMT Right Angle Rocker Switch: VIEW DATA SHEET | CONFIGURATOR
- IP67
- Electrical Ratings:
- Silver – 3A, 120VAC or 28VDC; 1A, 250VAC
- Gold – 0.4VA max. @ 20V max. (AC or DC)
- SPDT, momentary or latching function
UL Listed Toggle Switches
100 Series Miniature Toggle Switch: VIEW DATA SHEET | CONFIGURATOR
- Electrical Ratings:
- Silver – 5A, 120VAC or 28VDC; 2A, 250VAC
- Gold – 0.4VA max. @ 20V max. (AC or DC)
- SPDT, DPDT, 3PDT, 4PDT; momentary or latching functions
- 17 types of Panel Mount and Thru-Hole mounting options
100A Series Sealed, Miniature Toggle Switch: VIEW DATA SHEET | CONFIGURATOR
- IP67
- Electrical Ratings:
- Silver – 5A, 120VAC or 28VDC; 2A, 250VAC
- Gold – 0.4VA max. @ 20V max. (AC or DC)
- SPDT, DPDT, momentary or latching functions
200A Series Sealed, Subminiature Toggle Switch: VIEW DATA SHEET | CONFIGURATOR
- IP67
- Electrical Ratings:
- Silver – 3A, 120VAC or 28VDC; 1A, 250VAC
- Gold – 0.4VA max. @ 20V max. (AC or DC)
- SPDT, DPDT, momentary or latching functions
200B Series Sealed, Subminiature, SMT Right Angle Toggle Switch: VIEW DATA SHEET | CONFIGURATOR
- IP67
- Electrical Ratings:
- Silver – 3A, 120VAC or 28VDC; 1A, 250VAC
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT, momentary or latching functions
ST1 Series High Current, Power Toggle Switch: VIEW DATA SHEET | CONFIGURATOR
- Electrical Ratings:
- 20A 125VAC
- 15A 277VAC
- 2.0HP 125-277VAC (latching); 1.5HP 125-277VAC (momentary)
- SPST-NO, SPST or SPDT circuit; momentary or latching function
- Tab, solder, screw or wire leads termination options
ST2 Series High Current, Power Toggle Switch: VIEW DATA SHEET | CONFIGURATOR
- Electrical Ratings:
- 20A 125VAC
- 15A 277VAC
- 2.0HP 125-277VAC (latching); 1.5HP 125-277VAC (momentary)
- DPST-NO, DPST or DPDT circuit; momentary or latching function
- Tab, solder, screw or wire leads termination options
ST3 Series High Current, Power Toggle Switch: VIEW DATA SHEET | CONFIGURATOR
- Electrical Ratings:
- 20A 125VAC
- 15A 277VAC
- 2.0HP 125-277VAC
- 3PST or 3PDT circuit; latching function
- Tab, solder, screw or wire leads termination options
ST4 Series High Current, Sealed, Power Toggle Switch: VIEW DATA SHEET | CONFIGURATOR
- IP68
- Electrical Ratings:
- 16(8)A @ 125/250VAC, μT55
- 20(8)A @ 125/250VAC, μT55
- 20A @ 6-30VDC, μT55
- Single Pole or Double Pole, 2 or 3 positions; nine total function options
ST5 Series High Current, High Temperature, Power Toggle Switch: VIEW DATA SHEET | CONFIGURATOR
- IP40
- Electrical Ratings:
- 16(8)A @ 125/250VAC, µT 125/55
- 20(8)A @ 125/250VAC, µT 125/55
- 20A @ 6-30VAC, µT 125/55
- Single Pole or Double Pole, 2 or 3 positions; nine total function options
UL Listed Slide Switches
500 Series Miniature Slide Switch: VIEW DATA SHEET | CONFIGURATOR
- Electrical ratings:
- Gold – 0.4VA max. @ 20V max. (AC or DC)
- Silver – 5A, 120VAC; 2A, 250VAC
- SPDT or DPDT; 2 or 3 positions; momentary or latching
- Panel or PC board mounting designs, including SMT, through hole and right angle options
500A Series Subminiature Slide Switch: VIEW DATA SHEET | CONFIGURATOR
- Electrical ratings:
- Gold – 0.4VA max. @ 20V max. (AC or DC)
- Silver – 3A, 120VAC; 1A, 250VAC
- SPDT, 2 or 3 positions; latching function
- Through hole, through hole right angle, or surface mount right angle (SMT) mounting
UL Listed Detector Switches
PP1 Series Push-Pull Pushbutton Detector Switch: VIEW DATA SHEET | CONFIGURATOR
- 28.4mm x 13.5mm panel cutout
- Electrical ratings:
- 16A 125VAC
- 12A 250VAC
- 1HP 125/250VAC
- Panel mount snap-in; IP40 rated
PP2 Series Push-Pull Pushbutton Detector Switch: VIEW DATA SHEET | CONFIGURATOR
- 36.5mm x 13.5mm panel cutout
- Electrical ratings:
- 16A 125VAC
- 12A 250VAC
- 1HP 125/250VAC
- 10R(4)A 277VAC 5E4
- Panel mount snap-in; IP40 rated
