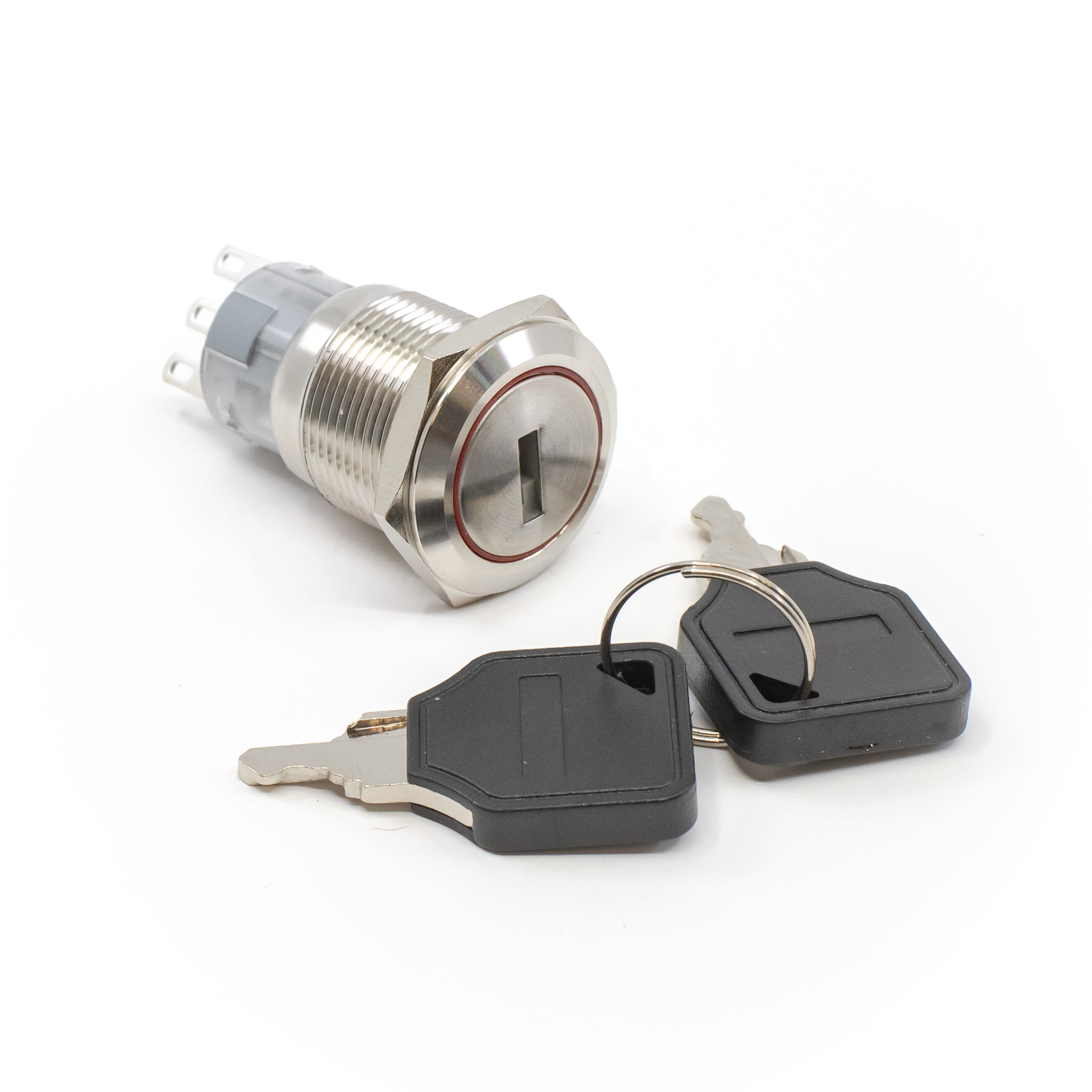

PVK4 Series Illuminated Anti-Vandal Switch

Wire Leads & Connectors Available

PVK4 Series: PVK4S22B0SS-A11

Categories: KEYLOCK

Series Data Sheet

PVK4 Series Illuminated Anti-Vandal Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

Series: Actuator: Terminal: Function: Operating Station: Rating: Body Finish: Actuator Finish: Contact Material: Lens Style: LED Color: Illumination Voltage:

* If you need further customization, we can help!

Current Configuration:

PVK4S22B0SS-A11

Spec Sheet (2D)

... in stock, available to buy now.

Quantity:

Additional Purchase Options:

Check Distributor Stock

Request Sample

Stock Check for PVK4S22B0SS-A11

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the PVK4S22B0SS-A11 from our authorized distributors.

In-Stock Distributors

KEYLOCK, 2A, 24VDC, SPDT, On-(On), Panel Mount, Front, Illuminated

Quantity:

About PVK4 Series

19mm panel cutout
2A, 24VDC; IP65 (maintained) or IP40 (return)
Keylock actuator or selector actuator
SPDT or DPDT; 2 or 3 operating positions; maintained or return
Solder or wire leads termination
Stainless steel finish
Illuminated arrow or non-illuminated (selector option)
Many LED illumination color options (selector option)
Many illumination voltage options (selector option)
Silver or gold contact material
50,000 cycles electrical life
-40°C to 85°C operating temperature

E-Switch E-Bits: PVK4 Keylock Anti-vandal Switch

PVK4 Series Markets

Appliance Audio Visual Industrial Medical Security Transportation

Product Specifications

PVK4S22B0SS-A11

KEYLOCK, 2A, 24VDC, SPDT, On-(On), Panel Mount, Front, Illuminated

Series Name PVK4
PackagingBulk
Current Rating2A
Voltage Rating24VDC
CircuitSPDT
FunctionOn-(On)
Mounting TypePanel Mount, Front
Termination TypeSolder
Contact MaterialSilver
Actuator TypeSelector
Actuator ColorSilver
Illumination StyleArrow
Illumination ColorLED, Red
Illumination Voltage1.8V
Ingress ProtectionIP40
Panel Cutout DimensionsCircular - 19mm Dia.
Operating Temperature-40°C to 85°C
Nbr of Positions2
Key Removal PositionsN/A
Angle of Throw45°
