Read MorePVHC4 Series Illuminated, High Current Anti-Vandal Switch
PVHC4 Series Illuminated, High Current Anti-Vandal Switch
Stock Check for PVHC4F23SS314
Not the product you are looking for? Configure your product
ANTI-VANDAL, 20A, 250VAC, SPST, Off-On, Panel Mount, Front, Illuminated
About PVHC4 Series
- 19mm panel cutout
- 20A, 250VAC, UL;Â IP67 rated
- SPST circuit; latching or momentary function
- Solder or wire leads termination
- Flat actuator
- Stainless steel or black anodized
- Illuminated ring, ring/power symbol, or non-illuminated
- Many LED illumination color options
- Many illumination voltage options
- 50,000 cycles electrical life
- -40°C to 85°C operating temperature
PVHC4 Series Markets
Product Specifications

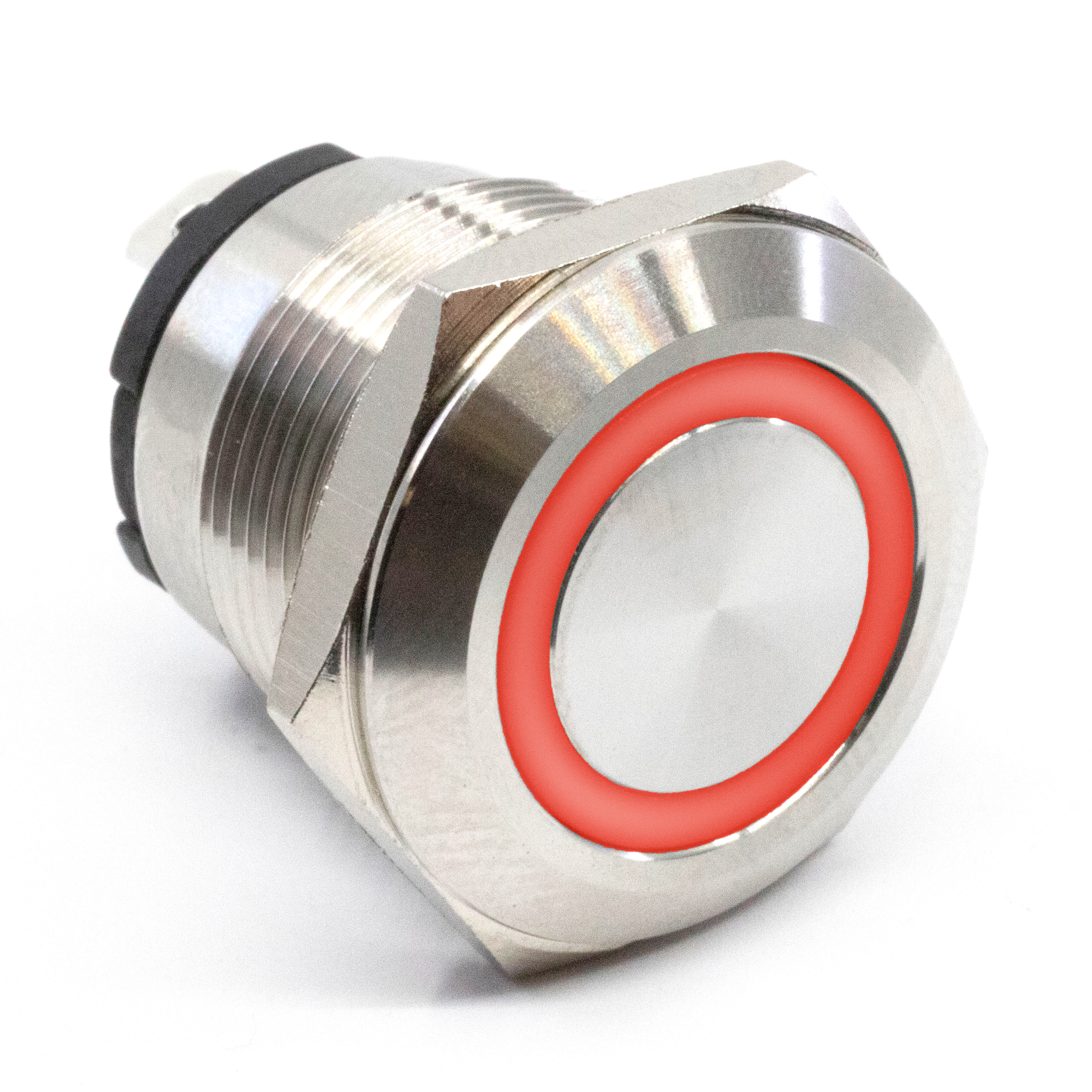

PVHC4F23SS314
ANTI-VANDAL, 20A, 250VAC, SPST, Off-On, Panel Mount, Front, Illuminated
- Series Name PVHC4
- PackagingBulk
- Current Rating20A
- Voltage Rating250VAC
- CircuitSPST
- FunctionOff-On
- Mounting TypePanel Mount, Front
- Termination TypeSolder
- Contact MaterialSilver
- Actuator TypeRound, Button, Flush
- Actuator ColorStainless Steel
- Illumination StyleRing
- Illumination ColorLED, Red
- Illumination Voltage12V
- Ingress ProtectionIP67
- Operating Force6N
- Panel Cutout DimensionsCircular - 19mm Dia.
- Operating Temperature-40°C to 85°C
Support for PVHC4F23SS314
Not the product you are looking for? Configure your product
