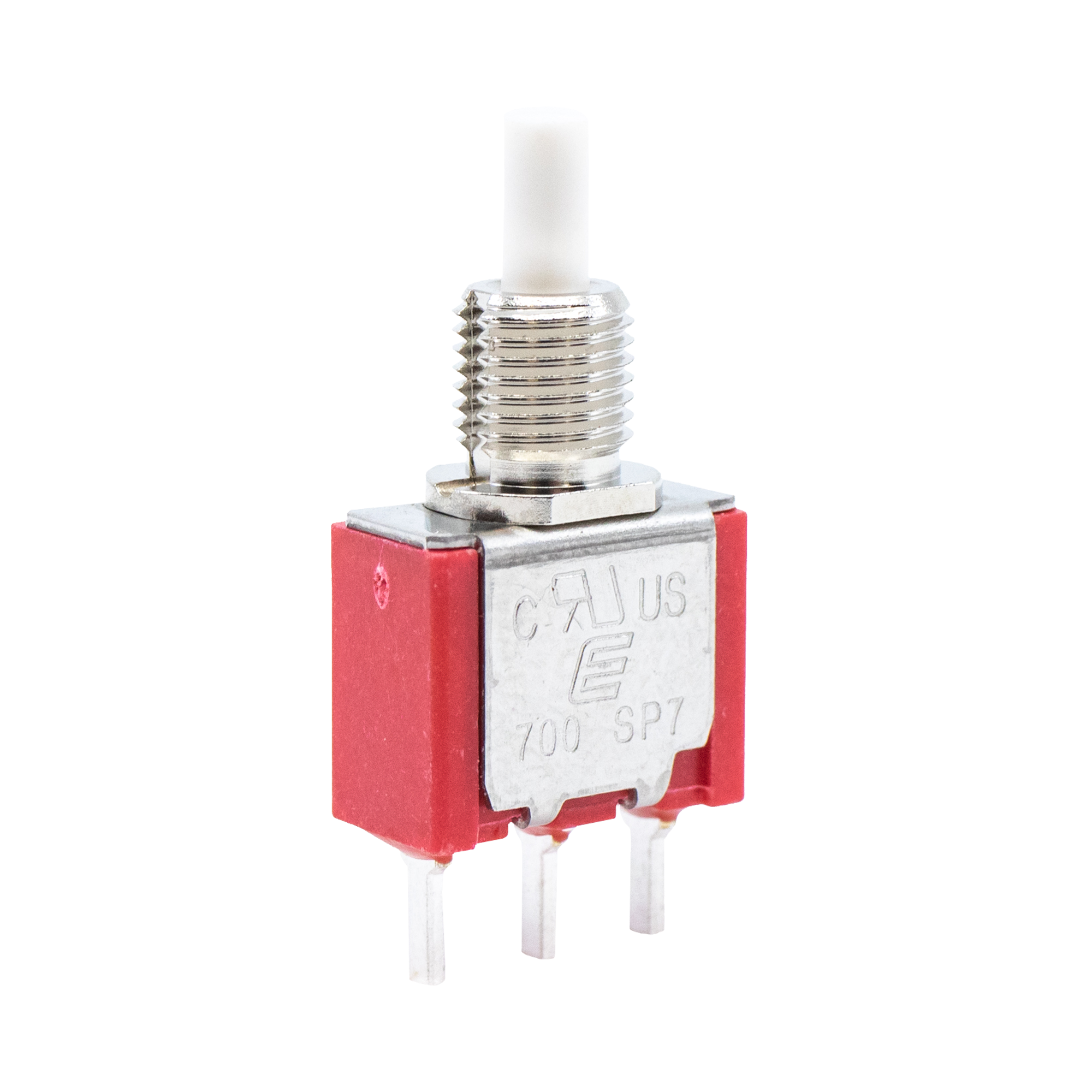

700 Series Snap-Acting Pushbutton Switch
Stock Check for 700SP7B11M51RE
Not the product you are looking for? Configure your product
PUSHBUTTON, 0.4VA, 20VAC/VDC, SPDT, On-(On), Panel Mount, Rear
About 700 Series
- Contact Ratings: 1A @ 250 VAC; 3A @ 120 VAC or 28 VDC
- Snap acting contact design
- Gold and silver contact options
- Multiple bushing and termination options
- Snap-in panel mount option
- 1 or 2 poles momentary functions
- Operating Temperature: -40°C to 85°C
- Life Expectancy: 50,000 cycles typical
700 Series Markets
Product Specifications
700SP7B11M51RE
PUSHBUTTON, 0.4VA, 20VAC/VDC, SPDT, On-(On), Panel Mount, Rear
- Series Name 700
- PackagingBulk
- Current Rating0.4VA
- Voltage Rating20VAC/VDC
- CircuitSPDT
- FunctionOn-(On)
- Mounting TypePanel Mount, Rear
- Termination TypeWire Wrap
- Contact MaterialGold
- Actuator TypeRound, Plunger
- Actuator ColorWhite
- Illumination Style-
- Illumination Color-
- Panel Cutout DimensionsCircular - 6.35mm Dia.
- Operating Temperature-40°C to 85°C
Support for 700SP7B11M51RE
