TL6150 Series Sealed, Long Life Tactile Switch

TL6150 Series Sealed, Long Life Tactile Switch

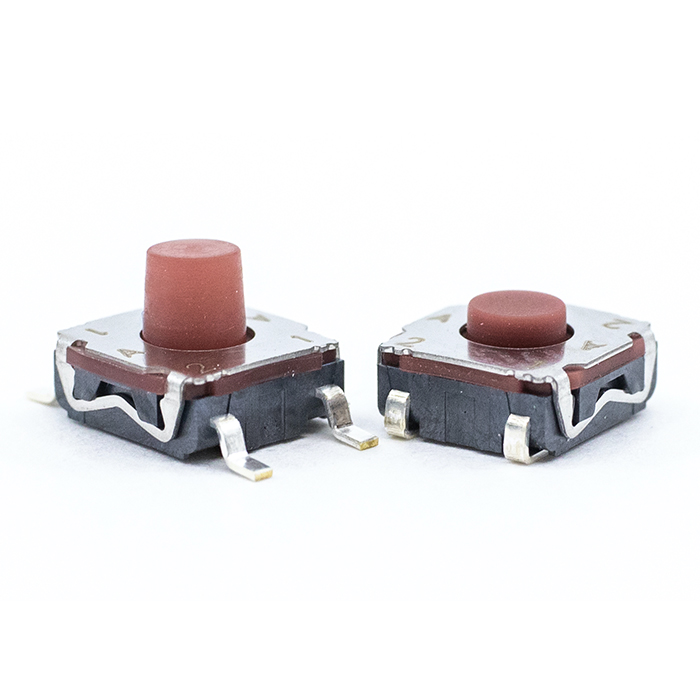

The TL6150 Series is an SMT tactile switch available with either gull wing or J-lead termination. This SPST momentary tact switch is rated IP67 for protection against dust and moisture. This tactile series has three different actuation forces available: 160gf, 200gf, and 350gf. The life expectancy for the TL6150 Series tact switch varies depending on the actuation force option, but all are long life switches. The 350gf has a long life expectancy of 350,000 cycles, the 200gf option lives approximately 500,000 cycles, and the 160gf option has a life expectancy of five million cycles. The travel also varies depending on the actuation force chosen and ranges from 0.3mm to 0.5mm. This product also has an industrial operating and storage temperature range of -40°C to 85°C. These tact switches are delivered in tactile tape and reel packaging. Applications for this switch include:

  • Audio/visual
  • Computer peripherals
  • Consumer electronics
  • Instrumentation
  • Medical equipment
  • Telecommunications

FEATURES

  • Up to 5,000,000 cycle life expectancy
  • Tactile tape and reel packaging
  • IP67 rating for dust and moisture protection
  • Multiple operating force options

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

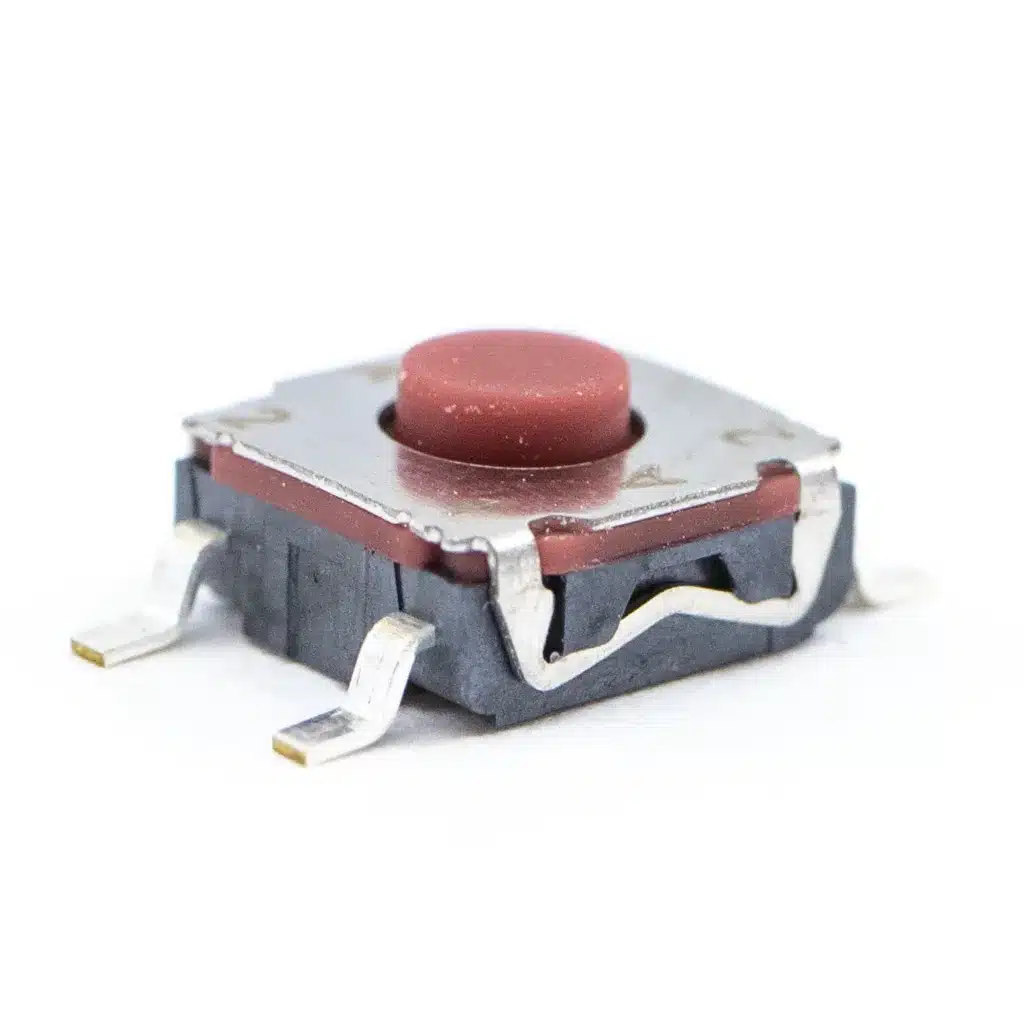

Tl6150af160qg

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

ELECTRICAL RATING: 50mA @ 32VDC ELECTRICAL LIFE: up to 5,000,000 Cycles] CONTACT RESISTANCE: 100mΩ Max. (Initial) INSULATION RESISTANCE: 10MΩ Min. @ 100VDC DIELECTRICS STRENGTH: 250VAC for 1 Minute OPERATING TEMPERATURE: -40 to 85°C OPERATING FORCE: 160gf ± 50gf; 200gf ± 50gf; 350gf ± 100gf TRAVEL: 160gf: 0.3mm; 200gf: 0.35mm; 350gf: 0.5mm DUST/MOISTURE PROTECTION: IP67 FUNCTION: SPST, Off-(On)
