Read MoreTL1275 Series Illuminated Tactile Switch with Wire Leads and Connectors

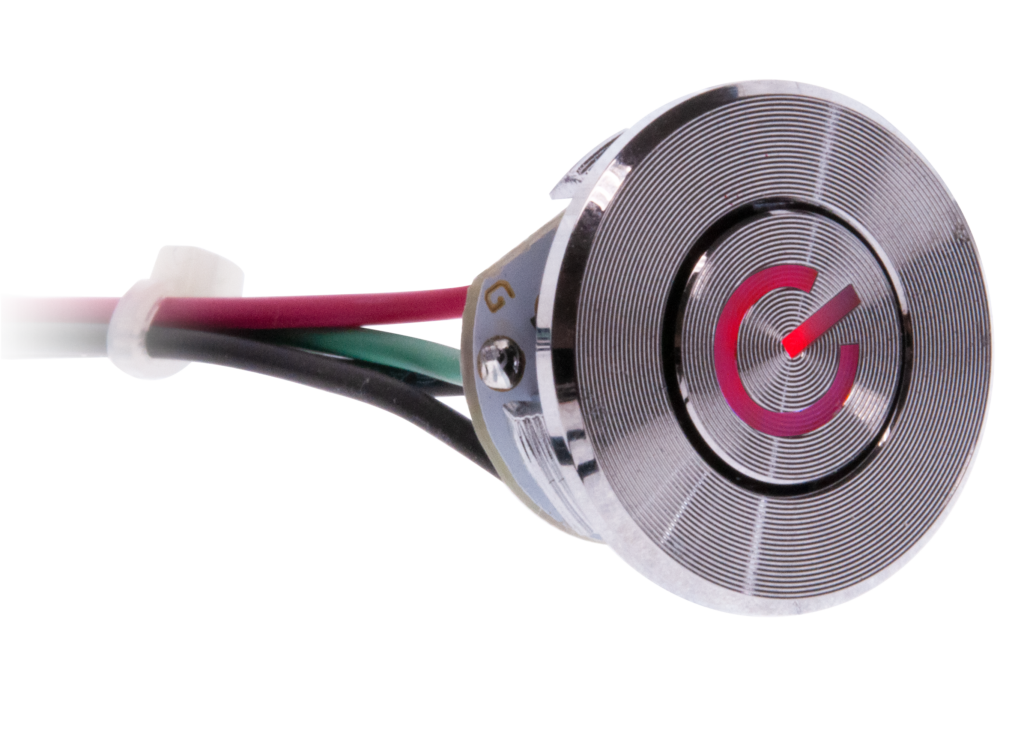

TL1275 Series Illuminated Tactile Switch with Wire Leads and Connectors
Stock Check for TL1275CA2WA500QPR
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Panel Mount, Illuminated
About TL1275 Series
- Panel mount tact switch: Tact switch soldered to a PCB, which is assembled into a module that allows for panel mounting
- 16mm diameter panel cutout
- (4) wires, 500mm long, with (2) connectors of 2.54mm pitch
- Flat, snap-in bezel, with 10mm diameter button
- Illuminated power symbol, with many LED color and bi-color options
- 350gf operating force
- 0.25mm travel
- 100,000 cycle life
- Silver contact material
- -25°C to 70°C operating temperature
- 50mA @ 12VDC
- Sharp tactile response
TL1275 Series Markets
Product Specifications
TL1275CA2WA500QPR
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Panel Mount, Illuminated
- Series Name TL1275
- PackagingTray
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypePanel Mount
- Termination TypeWire Leads with Connector
- Contact MaterialSilver
- Actuator TypeFlush
- Actuator Height1.60mm
- Illumination StyleIlluminated
- Illumination ColorLED, Red
- Operating Force350gf
- Operating Temperature-25°C to 70°C
