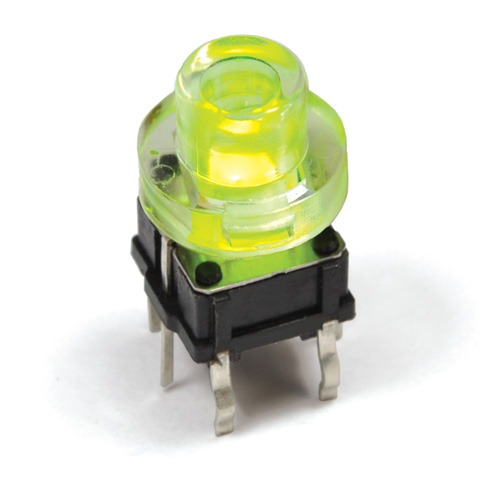

TL1265 Series Illuminated Vertical Tactile Switch
The TL1265 Series tactile switch offers brilliant, LED illumination in a small package. With vertical termination and multiple cap options, the TL1265 tact switch offers a long life expectancy of 500,000 cycles. The TL1265 Series tactile switches are electrically rated to handle 50mA of 12VDC current. These tactile switches operate in temperatures ranging from -20 to 70°C. Applications for this illuminated tact switch include:
- Audio/visual
- Computer peripherals
- Consumer electronics
- Instrumentation
- Medical equipment
- Telecommunications
FEATURES
- 6.8mm x 7mm tactile switch
- Long life expectancy of 500,000 cycles
- LED illumination options
- Vertical, through-hole mounting design
