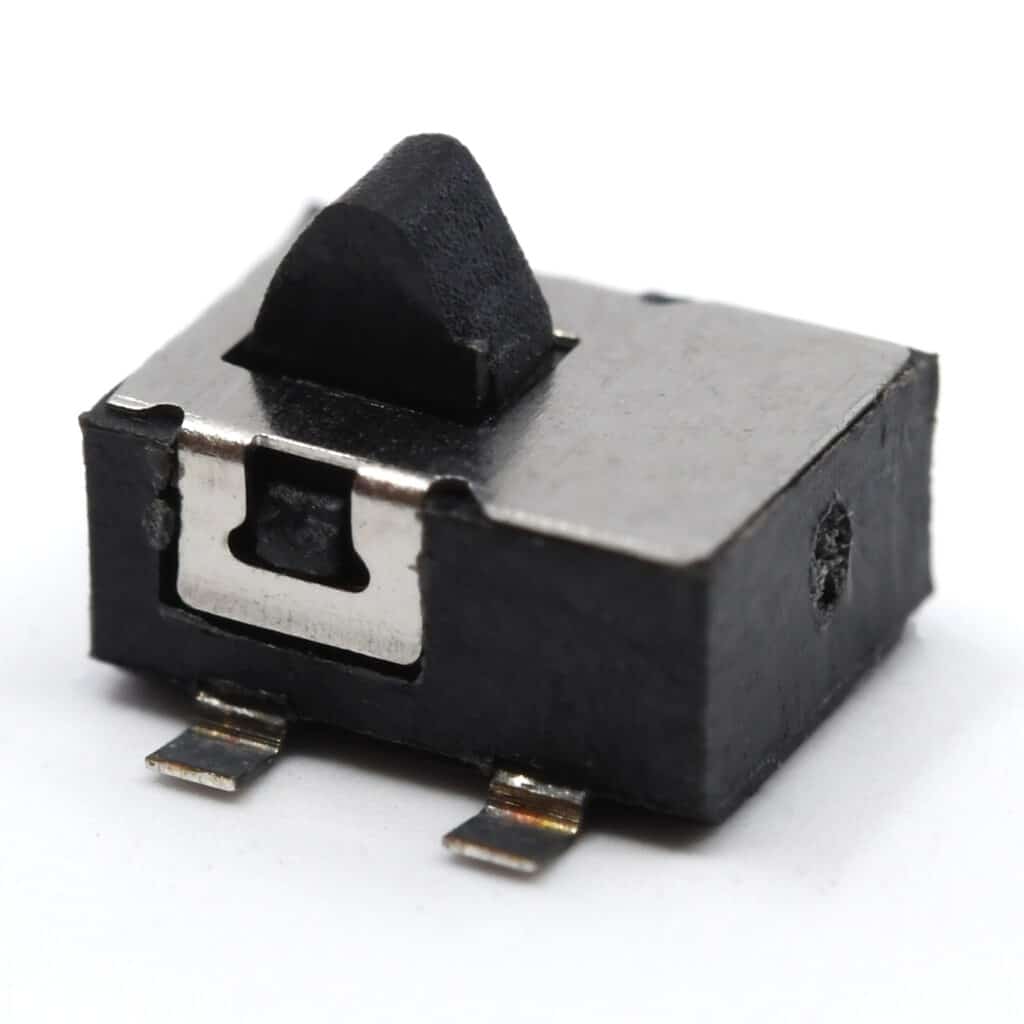

TD1146 Series Ultraminiature SMT Detector Switch

TD1146 Series Ultraminiature SMT Detector Switch

  • Electrical rating: 1mA, 5VDC
  • Surface mount (SMT) design
  • SPST-NO circuit
  • Ultraminiature 4.8mm x 5.0mm size
  • Very low profile 3.8mm
  • Operating point: 3.50mm
  • Overtravel
  • 30,000 cycle life
  • 50gf max operating force
  • Silver contact material
  • -25 to 70°C operating temperature
  • Tape and reel packaging

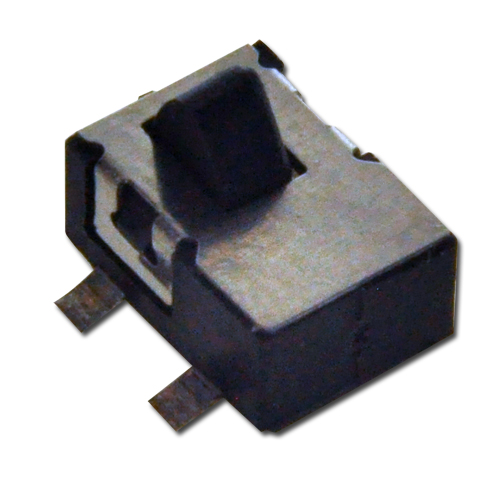

Td1146 Series

TD1146 Series Ultraminiature SMT Detector Switch

decoration Td1146 Series

Industry Utilization:

CERTIFICATIONS

Rohs Logo Reach Logo

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Td1146 Series

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Links

Most Common Configurations

TD1146

Detail Specifications

  • ELECTRICAL RATING: 1mA @ 5VDC
  • ELECTRICAL LIFE: 30,000 Cycles
  • CONTACT RESISTANCE: 100mΩ Max. Initial
  • INSULATION RESISTANCE: 100M Ω @ 100VDC
  • DIELECTRIC STRENGTH: 100VAC
  • OPERATING/STORAGE TEMPERATURE: -25°C to 70°C
  • OPERATING FORCE: 50gf max.
  • TRAVEL: 3.0mm nominal
  • CONTACT ARRANGEMENT: SPST, N.O.
