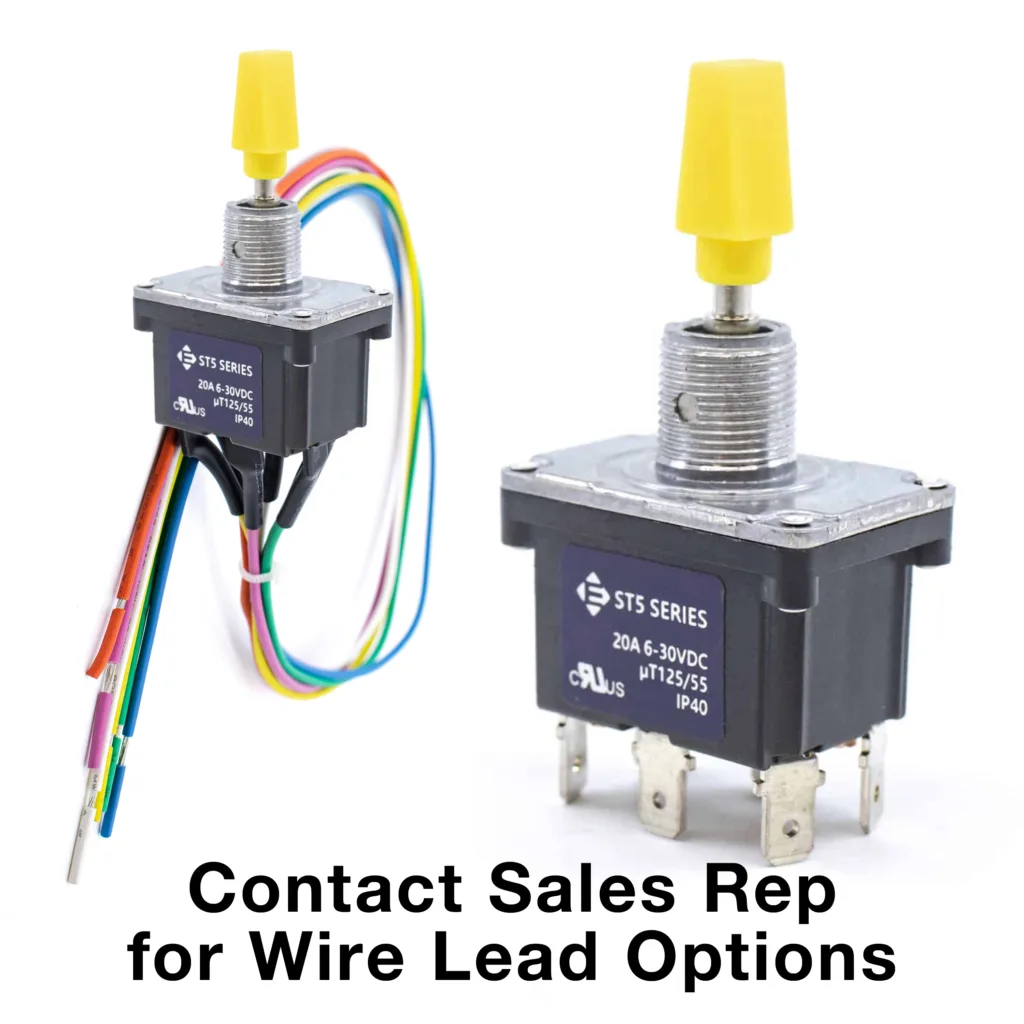

ST5 Series High Temperature Toggle Switch
ST5 Series High Temperature Toggle Switch
- IP40
- Electrical rating options:
- 16(8)A @ 125/250VAC, µT 125/55; UL, cUL
- 20(8)A @ 125/250VAC, µT 125/55; UL, cUL
- 20A @ 6-30VAC, µT 125/55; UL, cUL
- Single Pole or Double Pole, 2 or 3 positions; nine total function options
- 3/16” quick connect, 1/4” quick connect, Solder lug, or Screw termination options
- 17mm Metal Bat or 22mm Plastic Bat actuator options
- 12mm diameter panel cutout
- -10°C to 125°C operating temperature
ST5 Series High Temperature Toggle Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 16(8)A @ 125/250VAC, µT 125/55; 20(8)A @ 125/250VAC, µT 125/55; 20A @ 6-30VAC, µT 125/55
- ELECTRICAL LIFE: 10,000 Cycles
- CONTACT RESISTANCE: 50mΩ Max. Initial
- INSULATION RESISTANCE: 50 MΩ Min.
- DIELECTRIC STRENGTH: 1500V RMS
- OPERATING TEMPERATURE: -10°C to 125°C
- STORAGE TEMPERATURE: -10°C to 125°C
- CIRCUIT FUNCTION: SP or DP; 2 or 3 Positions
- PANEL CUTOUT: 12mm diameter
- PANEL THICKNESS: 1-8mm
- AGENCY APPROVAL: UL Certified
- DUST/MOISTURE PROTECTION: IP40
