SAV8 Series Anti-vandal Switch

SAV8 Series Anti-vandal Switch

The SAV8 Series is the largest switch in the SAV line, with a 25mm diameter. It's mounted on the LS Series snap action switch and includes multiple color options. The switch also comes in several illumination voltages, lens styles, and the choice of stainless steel or black anodized body finish. The SAV8 anti-vandal line is capable of withstanding temperatures from -25°C to 85°C and performs momentary or maintained (latching) functions. Applications for this anti-vandal switch include:

  • Audio/visual
  • Security devices
  • Industrial controls
  • Outdoor kiosks
  • Electrical homewares
Please check out the rest of the SAV line to see which switch is right for you:

FEATURES

  • 25mm diameter panel cutout
  • Ring or ring/power illumination options
  • Multiple illumination voltage options
  • Momentary and maintained (latching) functions
  • High current electrical rating up to 15 amps

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

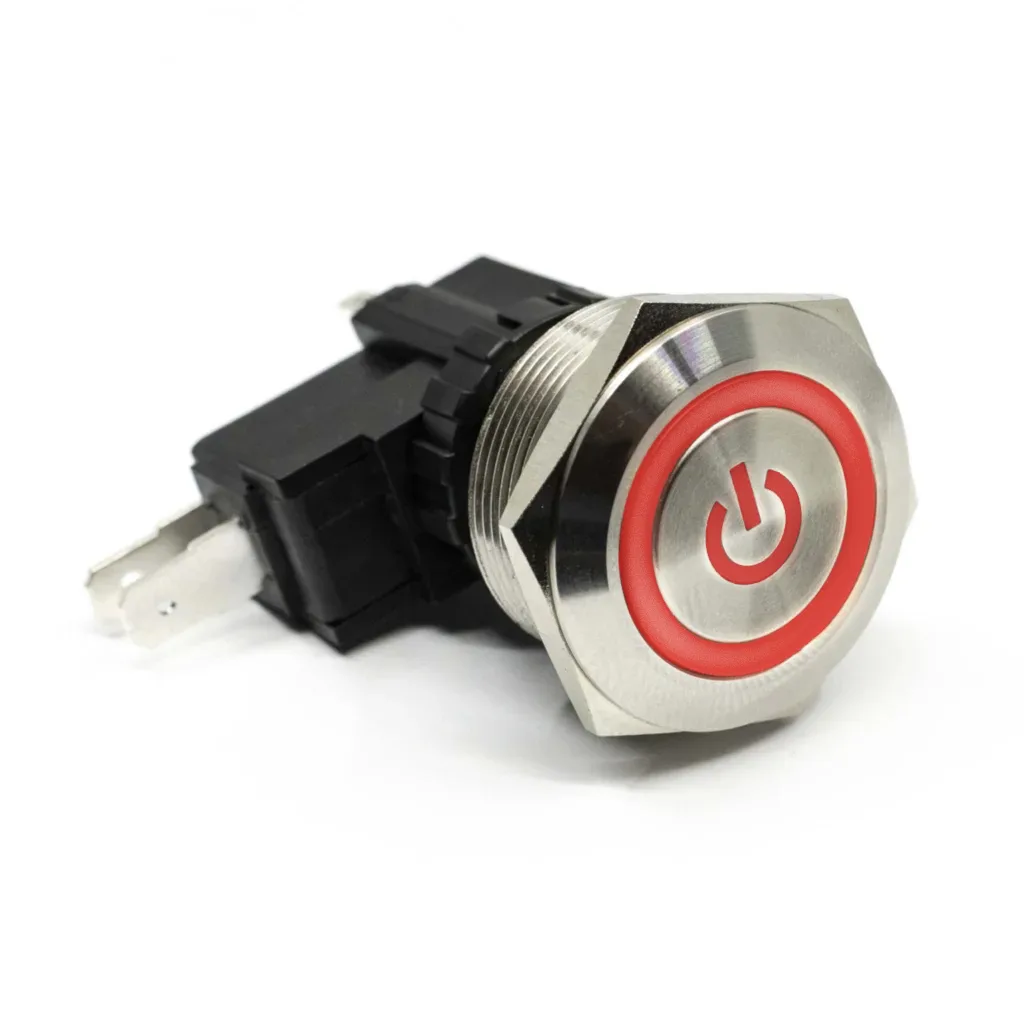

Product Number:

Sav8f1bss611

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

ELECTRICAL RATING: 15A @125/250VAC ELECTRICAL LIFE: 10,000 Cycles CONTACT RESISTANCE: 100mΩ max, INSULATION RESISTANCE: 100MΩ @ 500VDC DIELECTRIC STRENGTH: 1,500VAC for 60 seconds OPERATING/STORAGE TEMPERATURE: -25°C to 85°C TRAVEL: 3.2mm DUST/MOISTURE PROTECTION: IP67 (at front panel) ACTUATION FORCE: 3.5N PANEL THICKNESS: 1-10mm HEX NUT TORQUE: 1-3Nm
