Housing and actuator color options
Actuator marking options
Non-illuminated
-20°C to 105°C operating temperature
" />

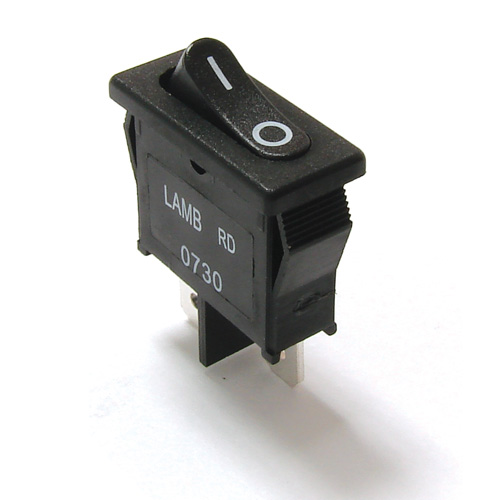

RD1 Series Compact, Power Rocker Switch
RD1 Series Compact, Power Rocker Switch
- 19.2mm x 6.8mm panel cutout
- Up to 16A, 125VAC, 1/3HP; UL, cUL
- SPST; latching function
- Panel mount snap-in design
- Quick connect - 0.187" termination
- Housing and actuator color options
- Actuator marking options
- Non-illuminated
- -20°C to 105°C operating temperature

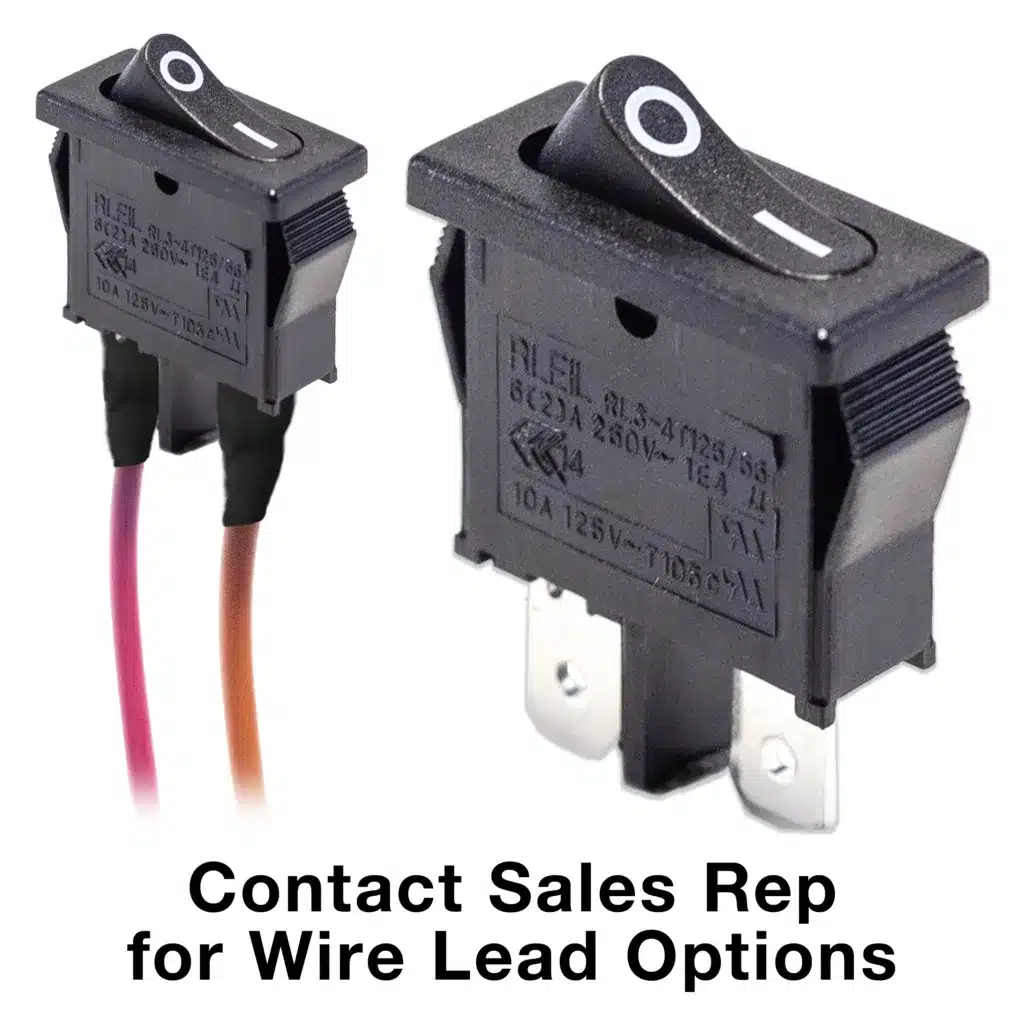

RD1 Series Compact, Power Rocker Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: Option C: 16A @ 125VAC [UL, cUL]; 10A @ 250VAC [UL, cUL]; 1/3HP @ 125/250VAC [UL, cUL]; 10(4)A @ 250V~ 1E4, T125 [ENEC]; 10(2)A @ 250V~ 5E4, T85 [ENEC]; Option 3: 10A @ 125VAC [UL, cUL]; 6(2)A @ 250V~ 1E4, T125 [ENEC]
- OPERATING/STORAGE TEMPERATURE: -20°C to 105°C [UL, cUL]
- ELECTRICAL LIFE: 10,000 Cycles
- CONTACT RESISTANCE: 35mΩ Max.
- INSULATION RESISTANCE: 100MΩ Min. at 500VDC
- DIELECTRIC STRENGTH: 1,500VAC for 1 Minute
- / MATERIALS /
- BODY: Polyamide 6/6, UL94 V-2
- ACTUATOR: Polyamide 6/6, UL94 V-2
- CONTACTS: Silver Alloy
- TERMINALS: Silver Plated Copper
