PVB3 Series Anti-Vandal Switch

PVB3 Series Anti-Vandal Switch

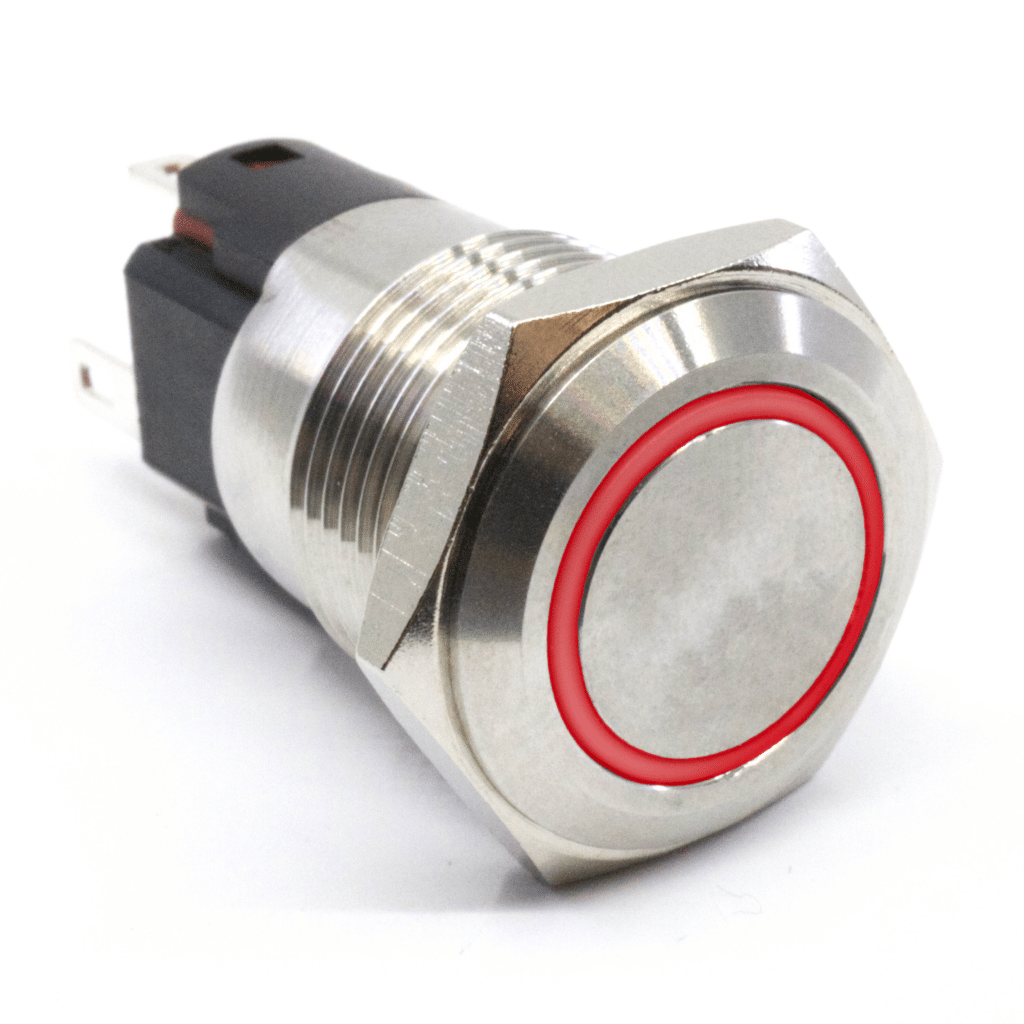

The PVB3 Series anti-vandal switch provides durability and security in a sleek and modern package. Functionality meets visual appeal with an IP65 rating, momentary or latching functions and the potential for ring and power symbol illumination. Multiple LED color options are available for further customization. The PVB3 has a 16mm panel cutout with options for a flat or high actuator featuring either a stainless steel or black anodized finish. The electrical rating of this switch is 2A, 24VDC and 0.5A, 220VAC. The mechanical life is an impressive 1,000,000 cycles momentary or 500,000 cycles latching with an electrical life of 50,000 cycles. The contact arrangement is SPDT. With its electrical rating, life expectancy and overall dependability, this series is ideal for the following markets:

  • Kiosks
  • Electrical Housewares
  • Security Devices
  • Commercial Appliances
  • Industrial Controls
  • Medical Equipment

FEATURES

  • 16mm panel cutout
  • Ring illumination option
  • Multiple LED color options
  • IP65 rated
  • Momentary or Latching functions

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Pvb3

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

Electrical Rating: 2A, 24VDC. 0.5A, 220VAC Mechanical Life: 1,000,000 Cycles (Momentary) 500,000 Cycles (Latching) Electrical Life: 50,000 Cycles Contact Resistance: 50mΩ Max. Insulation Resistance: 1,000 MΩ Min. @ 500VDC Dielectric Strength: 1,500VAC Operating/Storage Temperature: -25°C to 55°C Travel: 3.0mm Moisture Protection: IP65 Contact Arrangement: SPDT Actuation Force: 2.5N Panel Thickness: 1-7mm
