PMV6 Series Anti-Vandal Switch

PMV6 Series Anti-Vandal Switch

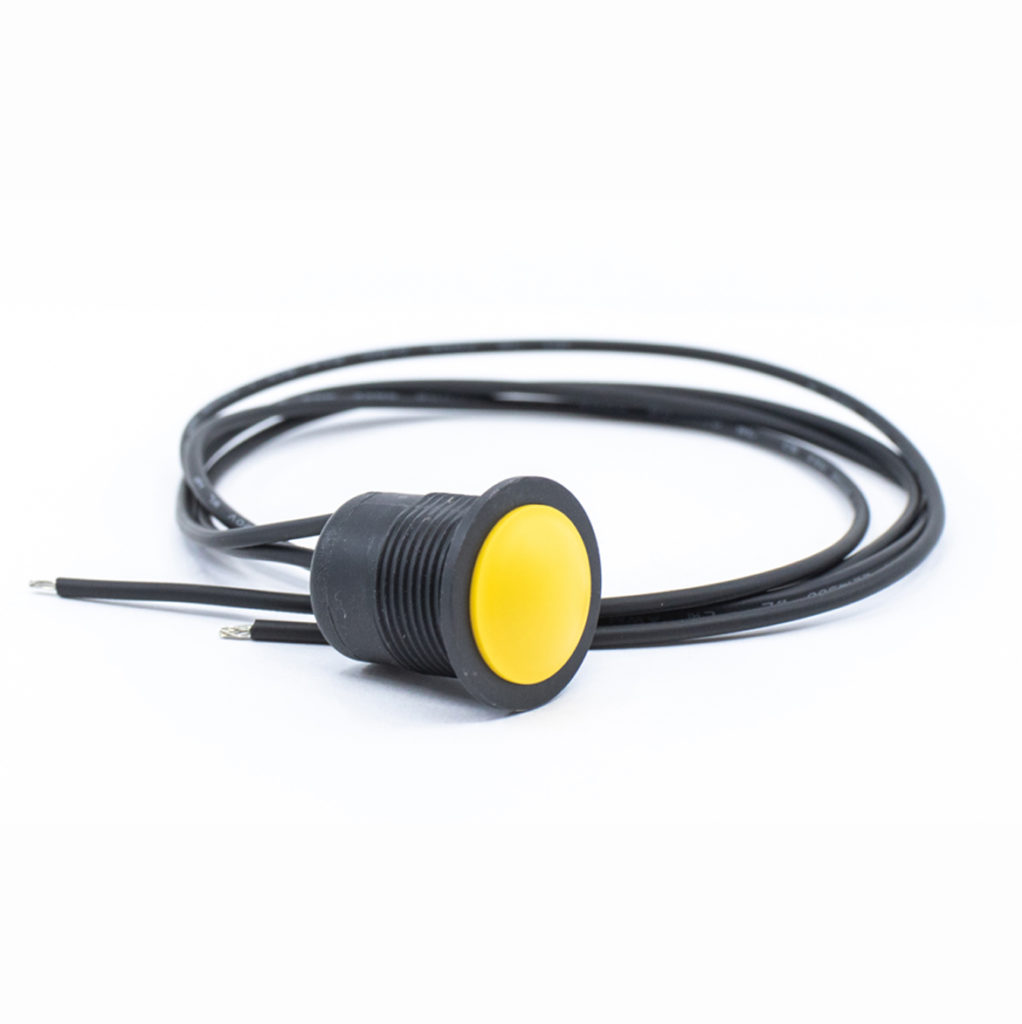

Our PMV6 Series anti-vandal pushbutton switches fit a panel cutout sized 16mm and come with your choice of multiple function options and cap colors. This IP67 rated switch offers a 10,000 cycle electrical life, an operating temperature range of -20°C to 65°C, and a 1.5mm travel. The PMV6 also comes pre-wired to save on installation time and cost. Applications for this anti-vandal pushbutton switch include:

  • Consumer electronics
  • Security devices
  • Industrial controls
  • Kiosks
  • Electrical housewares
  • Medical equipment

FEATURES

  • 16mm panel cutout
  • IP67 rated for dust and moisture protection

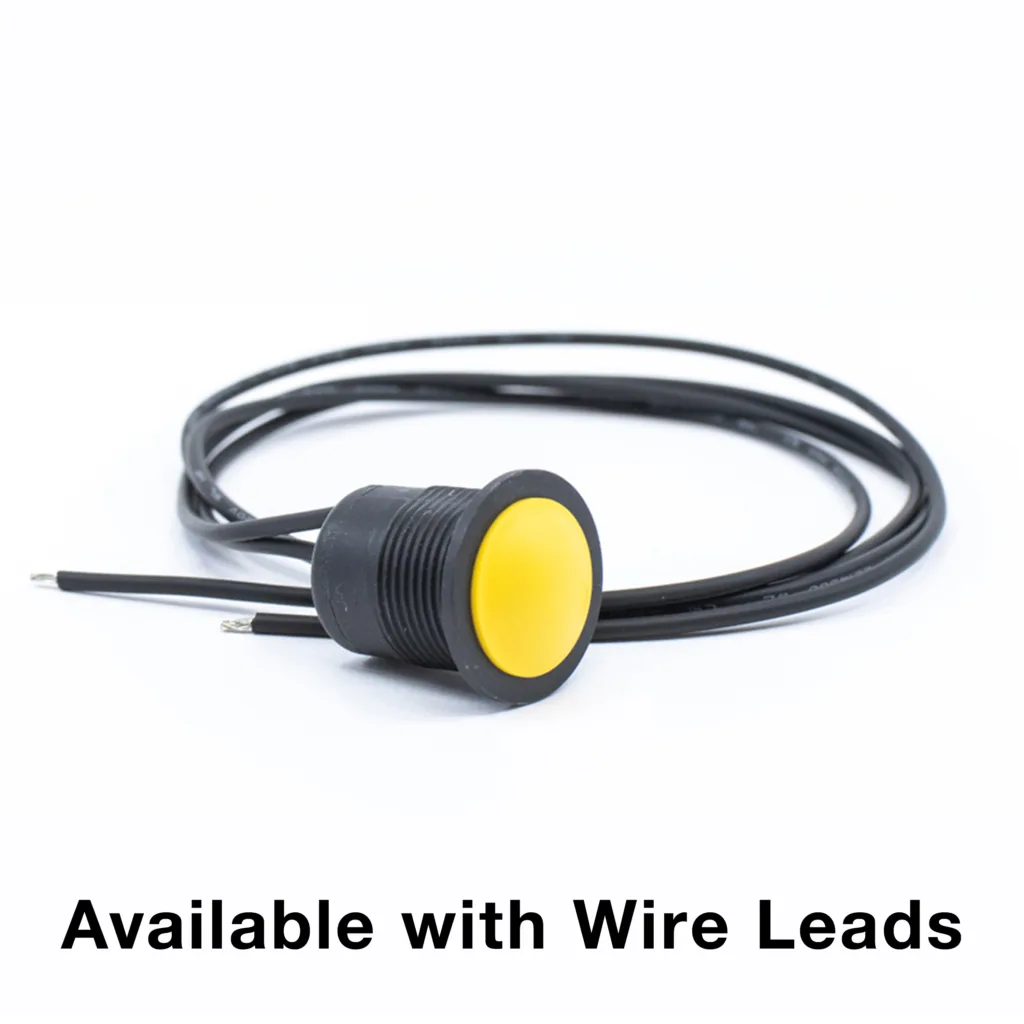

  • UL3385, 20AWG pre-stripped and tinned wire leads
  • Multiple Cap Colors
  • 10,000 cycle electrical life
  • Crisp tactile response

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Pmv6 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

  • ELECTRICAL RATING: 2A @ 24VDC
  • ELECTRICAL LIFE: 10,000 Cycles
  • CONTACT RESISTANCE: 100mΩ Max.@1A/12VDC (Initial Value)
  • INSULATION RESISTANCE: 100 MΩ Min. @ 500VDC
  • DIELECTRIC STRENGTH: 500Vrms @ sea level
  • OPERATING/STORAGE TEMPERATURE: -20°C to 65°C
  • TRAVEL: 1.5mm
  • DUST/MOISTURE PROTECTION: IP67
  • CONTACT ARRANGEMENT: SPST, On-(On) or Off-(On) or On-(Off)
  • ACTUATION FORCE: 7N ±2N
  • PANEL THICKNESS: 1-7mm
  • MOUNTING NUT TORQUE: 0.5-1Nm Max.
