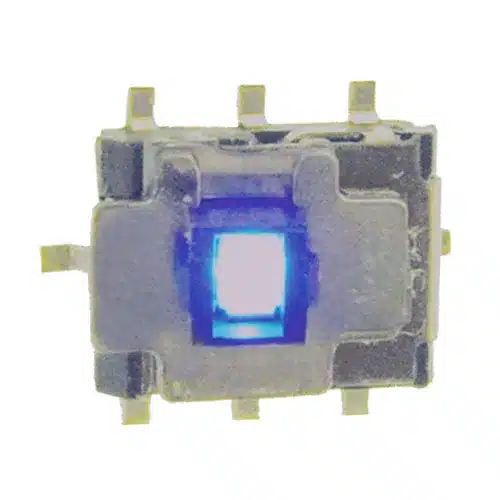

EGL2290 Series Illuminated, SMT Slide Switch
EGL2290 Series Illuminated, SMT Slide Switch
- 0.3A @ 6VDC
- Surface mount (SMT) design
- LED illumination; many color options
- DPDT circuit; 2 position actuator
- Compact 7.65mm x 5.5mm package design
- 200gf operating force
- 10,000 cycle life
- -40°C to 85°C operating temperature

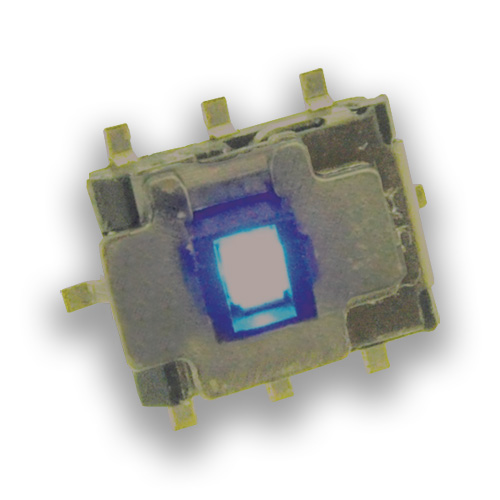

EGL2290 Series Illuminated, SMT Slide Switch
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 0.3A @ 6VDC
- ELECTRICAL LIFE: 10,000 Cycles
- CONTACT RESISTANCE: 50mΩ
- INSULATION RESISTANCE: 100M Ω at 500VDC
- DIELECTRIC STRENGTH: 500VAC
- OPERATING TEMPERATURE: -40°C to 85°C
- STORAGE TEMPERATURE: -40°C to 85°C
- ACTUATION FORCE: 200gf
- TRAVEL: 2.0mm
- CONTACT ARRANGEMENT: DPDT
