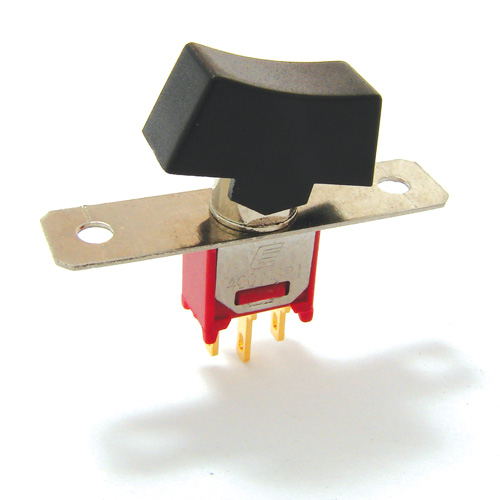

400 Series Subminiature Rocker Switch

400 Series Subminiature Rocker Switch

The 400 Series subminiature rocker switches come with either single- or double-pole circuits for performing momentary and maintained (latching) functions. These subminiature rocker switches are panel mountable, with a vertical solder lug, and PC mountable with six different termination options. Terminal options for this subminiature rocker switch include PCB pin and solder lug with contacts in both silver and gold. The gold contacts have an electrical rating 0.4VA, 20V (AC or DC). The silver contacts are rated for 3A, 120VAC [cURus], 3A, 28VDC, and 1A, 250VAC [cURus]. The 400 Series subminiature rocker has an electrical life expectancy of 30,000 make-and-break cycles and operates in temperatures ranging from -30°C to 85°C. Applications for this subminiature rocker switch include:

  • Instrumentation
  • Telecommunications
  • Test equipment
  • Computer peripherals
  • Networking

FEATURES

  • Up to 3A, 120VAC or 28VDC rating, also available in gold contacts
  • PC board or panel mount design
  • 1 or 2 pole circuits; momentary and maintained (latching) functions

400 Series Subminiature Rocker Switch

decoration 400 Wire

Industry Utilization:

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

400 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

ELECTRICAL RATING: Dependent on Contact Material ELECTRICAL LIFE: 30,000 Make-and-Break Cycles CONTACT RESISTANCE: 20mΩ Max. Initial INSULATION RESISTANCE: 1,000MΩ Min. DIELECTRIC STRENGTH: 1,000V RMS at Sea Level OPERATING TEMPERATURE: -30°C to 85°C / MATERIALS / CONTACTS: Silver or Gold Plated Copper Alloy
