Rocker switches are commonly used as an on/off switch that rocks (rather than trips) when pressed, meaning the rocker opens or closes the circuit upon actuation. So one side of the rocker switch is raised while the other side is depressed, much like a seesaw or rocking horse. But what are the best rocker switches available right now?
Rocker switches are known for their ease of use as the actuation is typically intuitive, and they often provide a satisfying click or tactile feedback when activated. They come in different sizes, colors and styles, making them suitable for a wide range of uses. They’re also known for their durability and reliability. Here are the best rocker switches for 2026.
Best Rocker Switches 2026
Continue below for the 12 best rocker switch selections, including links to product pages and data sheets.
#1. WB2 Series Sealed, Power Rocker Switch
- Industry standard 22mm x 30mm panel cutout
- IP55 rated internal dust and moisture protection
- Up to 20A, 125VAC, 2HP (UL, cUL listed)
- DPST or DPDT; 2 or 3 positions; momentary or latching
- Housing and actuator color and marking options
#2. 300 Series Miniature Rocker Switch
- Electrical Ratings:
- Silver – 5A, 120VAC or 28VDC; 2A, 250VAC (UL, cUL)
- Gold – 0.4VA Max. @ 20V Max. (AC or DC)
- SPDT, DPDT, 3PDT, 4PDT; momentary or latching function
- 13 types of panel mount and thru-hole mounting options
- 16 types of rocker and paddle actuator options
- Epoxy sealed terminals
#3. RBW2 Series Sealed, Illuminated, Power Rocker Switch
- Internally sealed to an IP66 rating with patented technology
- 22mm x 30mm panel cutout size
- 16A, 125VAC, 1/3HP (UL, cUL); 10A, 250VAC (VDE)
- DPST or DPDT; latching function
- Full illumination or non-illuminated
#4. R1966 Series Illuminated, Power Rocker Switch
- 19.2mm x 13mm panel cutout size
- 15A, 125VAC (UL); 10A, 250VAC (UL); 6A, 250VAC (VDE)
- SPST or SPDT; momentary or latching function
- LED illumination and actuator marking options
- Quick connect, solder, wire leads, PC Pin or PC Pin right/left angle
#5. 300A Series Sealed, Miniature Rocker Switch
- IP67 rated dust and moisture seal
- Electrical Ratings:
- Silver – 5A, 120VAC or 28VDC; 2A, 250VAC (UL, cUL)
- Gold – 0.4VA Max. @ 20V Max. (AC or DC)
- SPDT, DPDT; momentary or latching function
- 8 types of panel mount and thru-hole mounting options, including right angle, vertical and snap-in bracket
- 10 types of rocker and paddle actuator options

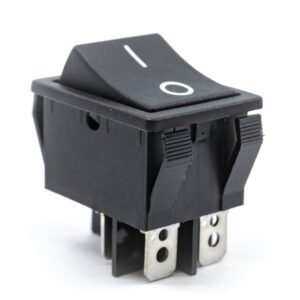

#6. R5 Series Illuminated, Power Rocker Switch
- 30mm x 22mm panel cutout, snap-in design
- 20A, 125VAC, 3/4HP, UL; 16A, 250VAC, 1HP, VDE (circuit A, B, C, E, F, H)
- 15A, 125VAC, UL; 10A, 250VAC, VDE (circuit D, G, I)
- DPST or DPDT; momentary or latching function
- Full illumination or non-illuminated options
- Quick connect or wire leads termination
#7. RVW Series Sealed, Power Rocker Switch
- 36.8mm x 21mm panel cutout with snap-in design
- IP54 rated protection against dust and moisture
- Up to 20A, 125VAC, 2HP (UL, cUL)
- 1 or 2 pole; 2 or 3 positions; momentary or latching function
- Many housing and actuator color/marking options
#8. RA1 Series Illuminated, Power Rocker Switch with PVC Cap
- 19.2mm x 13mm panel cutout with snap-in design (right angle option)
- 10A, 125VAC (UL, cUL)
- 16A, 125VAC, 1/3HP; 10A, 250VAC, 1/3HP (UL, cUL)
- SPST or SPDT; momentary or latching function
- Full LED illumination or non-illuminated options
- Solder, quick connect, wire leads or PC Pin termination
#9. RR5 Series Round, Power Rocker Switch
- 20mm panel cutout with snap-in design
- 20A, 125VAC; 12A, 250VAC (UL, cUL)
- SPST; momentary or latching function
- Quick connect, solder or wire leads termination
- Short body for low clearance applications

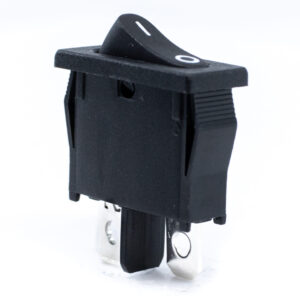

#10. R6 Series Slim, Power Rocker Switch
- 19.2mm x 6.65mm panel cutout with snap-in design
- 10A, 125VAC (UL); 6A, 250VAC (UL); 4A, 250VAC (VDE)
- SPST; momentary or latching function
- Quick connect or wire leads termination
- Multiple housing and actuator color options
#11. RSC Series Illuminated, Power Rocker Switch with Bi-Color Actuator
- Panel cutout options: 12.1mm-13.9mm x 27.2mm-28.6mm
- IP54 rated seal against dust and moisture
- Up to 20A, 125VAC, 1/4HP (UL, cUL)
- SPST or SPDT; momentary or latching function
- Full illumination or non-illuminated options
#12. RA8 Series Illuminated, Power Rocker Switch with PVC Cap
- 19.2mm x 13mm panel cutout with snap-in design (right angle available)
- 10A, 125VAC (UL, cUL)
- 16A, 125VAC, 1/3HP T105; 10A, 250VAC, 1/3HP T105 (UL, cUL)
- SPST or DPST; latching function
- Full LED illumination or non-illuminated options
- IP54 seal rating with PVC cap
Don’t see what you need? Browse E-Switch’s complete selection of rocker switches by following this link. Alternatively, don’t hesitate to reach out to us for additional support!
