When selecting a pushbutton switch for your device’s design, you’ll need to consider factors like termination style, contact configuration and voltage ratings, but a simple place to start with choosing the right pushbutton is finding the appropriate panel cutout size for mounting. One of the larger standardized sizes is the 25mm panel dimension that balances durability, visibility, ergonomics, compatibility.
The 25mm cutout is an ideal size because of its ease of installation, user-friendly feedback, resistance to harsh environments and aesthetic appeal. These pushbuttons can provide a variety of features and benefits, including different functions, circuits, illumination potential, high IP ratings, robust operating temperatures and long life cycles.
You’ll commonly find 25mm pushbutton switches in industrial control panels, machinery and equipment interfaces, automation systems and modular control stations.
Related Article Links: 16mm Pushbutton Switches | 19mm Pushbutton Switches | 22mm Pushbutton Switches
25MM Pushbutton Switch Options

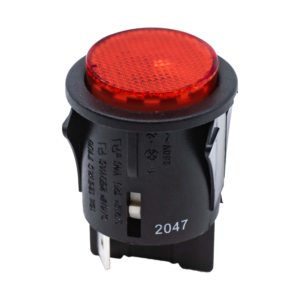

PR1 Series Illuminated, Power Pushbutton Switch with PVC Cap: VIEW DATA SHEET | CONFIGURATOR
- 16A, 125VAC; UL
- SPST or DPST; latching or momentary function
- Quick connect – 0.250″ termination
- Round button actuator; optional PVC cap (IP54 with PVC Cap: ACC-F03)
- Actuator color options including full illumination and markings
25MM Pushbutton Switch: Anti-Vandal Options

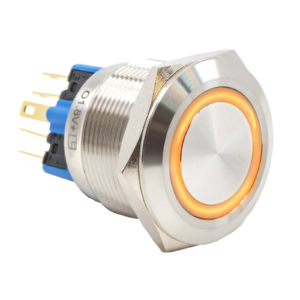

PV8 Series Illuminated Anti-Vandal Switch: VIEW DATA SHEET | CONFIGURATOR
- IP65 rated
- DPST-NO/NC or 4PST-2NO/2NC circuit; latching or momentary
- Solder or wire leads 300mm termination
- Illuminated ring, dot, power symbol, or non-illuminated
- Many LED color and voltage options including bi-color and RGB

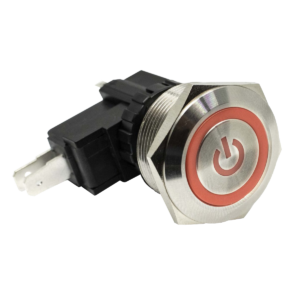

SAV8 Series Illuminated, High Current Anti-Vandal Switch: VIEW DATA SHEET | CONFIGURATOR
- 15A, 125/250VAC
- IP67 rated
- SPDT circuit; latching or momentary function
- Quick connect – 0.187″ or wire leads termination
- Illuminated dot, ring, power symbol, or non-illuminated
- Many LED color and voltage options including bi-color

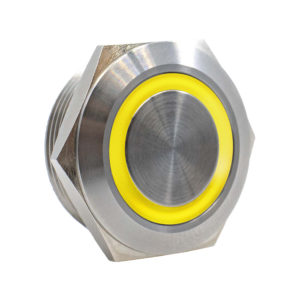

SV8 Series Illuminated, High Current Anti-Vandal Switch: VIEW DATA SHEET | CONFIGURATOR
- 2A, 36VDC
- IP67 rated
- Short body design
- SPST circuit; momentary function
- Solder or wire leads 500mm; optional ECM Connector or Receptacle
- Many LED color options including bi-color
- Laser etched custom graphic option

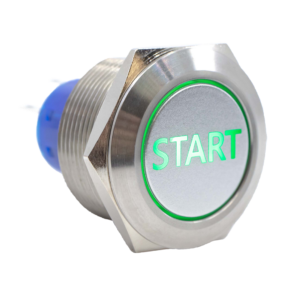

ULV8 Series UL Certified, Illuminated Anti-Vandal Switch: VIEW DATA SHEET | CONFIGURATOR
- IP67 rated
- SPDT or DPDT circuit; latching or momentary
- Solder, wire leads, detachable socket, or molded back
- Illuminated ring, ring/power symbol, custom graphic, or non-ilum.
- Many LED color and voltage options including bi-color
- 43 different illuminated custom graphics options
25MM Pushbutton Switch: Pilot Light Options
PVL25 Series Illuminated Pilot Indicator: VIEW DATA SHEET | CONFIGURATOR
- 6mm to 25mm panel cutout options
- IP67 rated
- Solder, screw or wire leads (150mm long)
- Flat or domed actuator
- Illuminated dot; many LED illumination color and voltage options
