When selecting a pushbutton switch for your device’s design, you’ll need to consider factors like termination style, contact configuration and voltage ratings, but a simple place to start with choosing the right pushbutton is finding the appropriate panel cutout size for mounting. Although a number of sizes are common, the 22mm pushbutton switch is a standardized cutout dimension that balances durability, ergonomics and compatibility.
The 22mm cutout is an ideal size because of its ease of installation, user-friendly feedback, resistance to harsh environments and aesthetic appeal. These pushbuttons can provide a variety of features and benefits, including different functions, circuits, illumination potential, high IP ratings, robust operating temperatures and long life cycles.
You’ll commonly find 22mm pushbutton switches in industrial control panels, machinery and equipment interfaces, automation systems and modular control stations.
22MM Pushbutton Switch Options

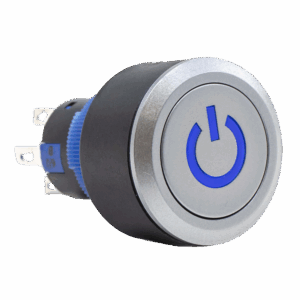

LB22 Series Illuminated Pushbutton Switch: VIEW DATA SHEET | CONFIGURATOR
- IP65 rated
- SPDT or DPDT; momentary or latching function
- Silver or gold contact material
- Multiple actuator color and style options (laser etched power symbol available)
- Available with or without illumination (from 3 volts to 220 volts)

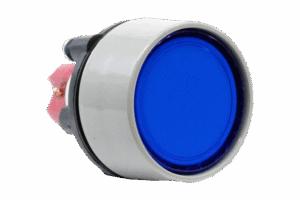

LA Series Sealed, Illuminated Pushbutton Switch: VIEW DATA SHEET | CONFIGURATOR
- IP65 rated
- Contact Rating:
- 5A @ 250VAC
- 8A @ 125VAC
- .2A @ 250VDC
- 6A @ 24VDC
- Signal light illumination with LED, neon or incandescent lamps in multiple colors
- Up to four poles; momentary, maintained (latching) and pilot functions
- Modular interface/contact block design
22MM Pushbutton Switch: Anti-Vandal Options

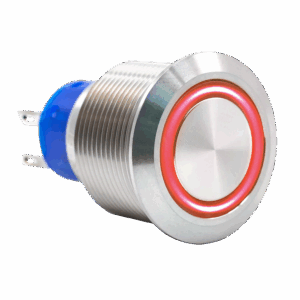

ULV7 Series UL Certified, Illuminated Anti-Vandal Switch: VIEW DATA SHEET | CONFIGURATOR
- IP67 rated
- Solder lug, soldered wire leads (300mm long), detachable socket w/ wire leads (500mm long) or molded back w/ wire leads (500mm long)
- Ring, ring/power symbol, standard and custom graphic illumination options available
- SPDT or DPDT; momentary or latching functions
- Stainless steel or black anodized body and actuator finish; silver or gold contacts

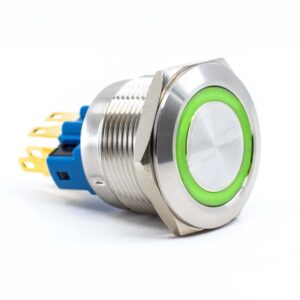

PV7 Series Illuminated Anti-Vandal Switch: VIEW DATA SHEET | CONFIGURATOR
- IP65 Rated
- RGB LED option; Dot, ring or power symbol illumination available
- DPST-NO/NC; Momentary or latching
- Solder lug or soldered wire leads (300mm long)
- Electrical rating: 2A, 48VDC

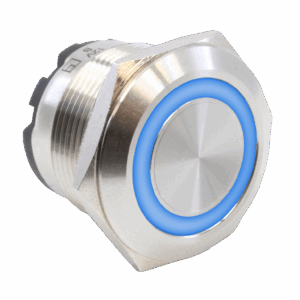

PVHC7 Series Illuminated, High Current Anti-Vandal Switch: VIEW DATA SHEET | CONFIGURATOR
- IP67 rated
- Contact rating: 20A @ 250VAC
- LED option; ring or power symbol illumination available
- SPST; momentary or latching
- Solder lug or wire leads (300mm long)

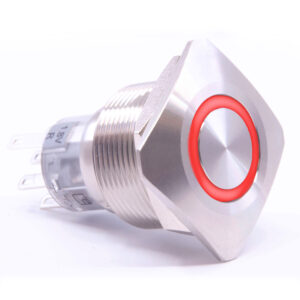

PVS7 Series Illuminated Anti-Vandal Switch: VIEW DATA SHEET | CONFIGURATOR
- IP65 rated
- RGB LED option; ring illumination available
- SPDT or DPDT; momentary or latching
- Solder lug or wire leads (300mm long)
- Electrical rating: 2A, 24VDC

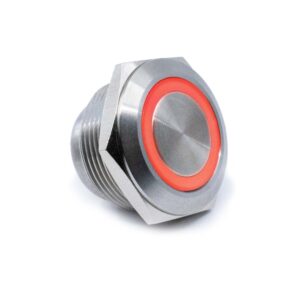

SV7 Series Illuminated, Short Body Anti-Vandal Switch: VIEW DATA SHEET | CONFIGURATOR
- Short body design
- IP67 rated
- Multiple LED options; ring or ring/power symbol illumination available
- SPST
- Solder lug, wire leads (500mm long) or 500mm wire with ECM Connector or ECM Receptacle
SAV7 Series Illuminated, High Current Anti-Vandal Switch: VIEW DATA SHEET | CONFIGURATOR
- IP67 rated (at front panel)
- Electrical rating: 15A, 125/250VAC
- Momentary and latching functions
- Ring or ring/power symbol illumination; multiple illumination voltage options
- 4.8mm quick connect terminal
22MM Pushbutton Switch: Pilot Light Options

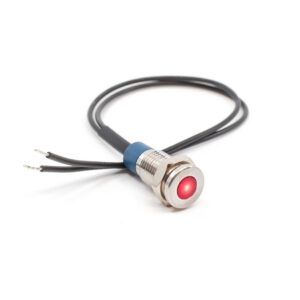

PVL22 Series Illuminated Pilot Indicator: VIEW DATA SHEET | CONFIGURATOR
- 6mm to 25mm panel cutout options
- IP67 rated
- Solder, screw or wire leads (150mm long)
- Flat or domed actuator
- Illuminated dot; many LED illumination color and voltage options
22MM Pushbutton Switch: Touch Sensor Options

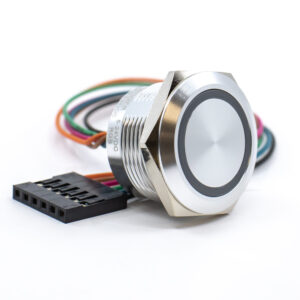

CS7 Series Illuminated, Touch Sensor Anti-Vandal Switch: VIEW DATA SHEET | CONFIGURATOR
- IP68 rated
- Latching or momentary functions
- Capacitive switching technology (touch sensor)
- Ring or ring/power symbol lens options; red, green or blue color choices
- Electrical life: 50,000,000 cycles
PZ7 Series Illuminated Anti-Vandal, Piezo Switch: VIEW DATA SHEET | CONFIGURATOR
- IP68 rated
- Momentary pulse function; Piezo switch
- Ring illumination option; RGB LED
- Concave or flat bezel
- Wire leads with connector (150mm or 300mm long)
Looking for more pushbuttons and different sizes? Use our parametric search and select “MORE ATTRIBUTES” to filter by the “Panel Cutout” value. Alternatively, use our request form for more assistance!
