When selecting a pushbutton switch for your device’s design, you’ll need to consider factors like termination style, contact configuration and IP rating, but a simple place to start with choosing the right pushbutton is finding the appropriate panel cutout size for mounting. Although a number of sizes are common, the 19mm pushbutton switch is a standardized cutout dimension that balances space-efficiency and aesthetic appeal with ergonomics and durability.
The 19mm cutout is an ideal size for applications because of its ease of installation, usability and full range of features. Pushbuttons in this category can deliver seal and impact protection, different termination options and a variety of benefits, such as different body finishes, marking styles, illumination options and voltage customization.
You’ll commonly find 19mm pushbutton switches across a variety of industries, including the security, medical, industrial, marine and automation markets. Below, you’ll find E-Switch’s complete selection.
Related Article Links: 16mm Pushbutton Switches | 22mm Pushbutton Switches
Panel Mount 19mm Pushbutton Switch: Anti-Vandal Options
PV1 Series Long Life Anti-Vandal Switch: VIEW THE DATA SHEET | CONFIGURATOR
- IP65 moisture and dust protection
- Electrical rating of 2A, 36VDC
- SPST; Off-(On) momentary function
- Solder, screw or wire leads (300mm) termination
- 1,000,000-cycle mechanical life
- Flat, high or domed actuator options

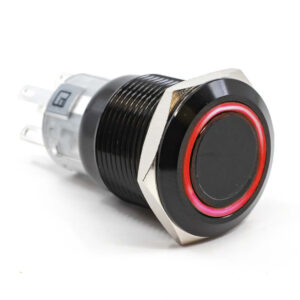

PV4 Series Illuminated Anti-Vandal Switch: VIEW THE DATA SHEET | CONFIGURATOR
- IP67 moisture and dust protection
- Electrical rating of 2A, 24VDC
- SPDT or DPDT circuit; latching or momentary function
- Dot, ring or power symbol illumination; RGB LED option
- Stainless steel or black anodized finish
- Solder, screw or wire leads (300mm) termination

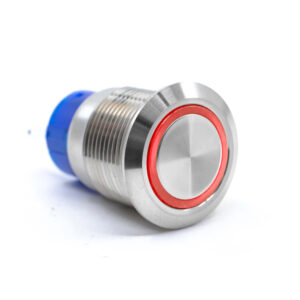

ULV4 Series UL Certified, Illuminated Anti-Vandal Switch: VIEW THE DATA SHEET | CONFIGURATOR
- IP67 rated moisture and dust protection
- Electrical rating of 3A, 125/250VAC (UL listed)
- SPDT or DPDT circuit; latching or momentary function
- Solder, wire leads, detachable socket or molded back
- Nickel, stainless steel or black anodized finish
- Dot, ring, ring/power symbol, standard and custom graphics available
PVHC4 Series High Current Anti-Vandal Switch: VIEW THE DATA SHEET | CONFIGURATOR
- IP67 rated moisture and dust protection
- Electrical rating of 20A, 250VAC (UL listed)
- SPST circuit; latching or momentary function
- Solder or wire leads termination
- Stainless steel or black anodized finish
- Illuminated ring, ring/power symbol (many LED color options) or non-illuminated

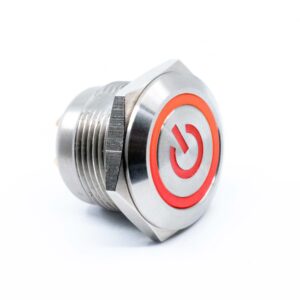

SV4 Series Short Body Anti-Vandal Switch: VIEW THE DATA SHEET | CONFIGURATOR
- IP67 rated dust and moisture protection
- Ring or ring/power symbol illumination; multiple LED colors
- Short body design for shallow panel depth
- Solder, wire leads or wire leads with ECM Series connector
- SPST circuit; momentary function
- Stainless steel, black anodized or corrosion resistant finish
SAV4 Series High Current Anti-Vandal Switch: VIEW THE DATA SHEET | CONFIGURATOR
- IP67 rated dust and moisture protection
- Electrical rating of 15A, 125/250VAC
- SPDT circuit; latching or momentary function
- Dot, ring, power symbol or ring/power symbol illumination
- Many LED colors and illumination voltage options
- Quick connect or wire leads termination
PVT4 Series Tactile Response Anti-Vandal Switch: VIEW THE DATA SHEET | CONFIGURATOR
- IP65 rated dust and moisture protection
- SPST; Off-(On) momentary function
- Ring illumination; LED color and voltage options
- Stainless steel or black anodized finish
- Solder or wire leads (300mm) termination
- Crisp tactile response for user feedback
Panel Mount 19mm Pushbutton Switch: Key Lock and Selector Options
PVK4 Series Illuminated Anti-Vandal Switch: VIEW THE DATA SHEET | CONFIGURATOR
- Key lock or illuminated arrow selector actuator options
- IP40 (return) or IP65 (maintain) protection
- Multiple operating positions
- SPDT or DPDT contact arrangements
- Electrical rating of 2A, 24VDC
- Many LED color and voltage options

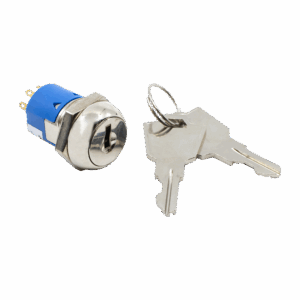

KO Series Key Lock Switch: VIEW THE DATA SHEET | CONFIGURATOR
- Electrical rating of up to 4A, 125VAC
- Variety of size and product package options
- Different key type and key pull varieties
- Barrel and flat key choices
- Wide variety of key code options (from one to 5,000)
- Multiple termination options
Panel Mount 19mm Pushbutton Switch: Touch Sensor Options
CS4 Series Capacitive Anti-Vandal Switch: VIEW THE DATA SHEET | CONFIGURATOR
- IP68 rated for dust and moisture protection
- Electrical rating of 1A, 24VDC
- Capacitive switching technology (touch sensor)
- SPST circuit; latching or momentary function
- Ring or ring/power symbol illumination
- 50 million-cycle electrical life

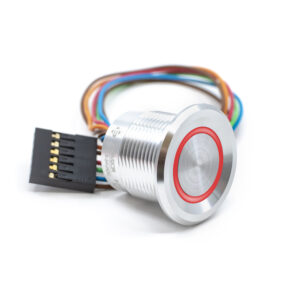

PZ4 Series Piezo Anti-Vandal Switch: VIEW THE DATA SHEET | CONFIGURATOR
- IP68 rated for dust and moisture protection
- Non-illuminated or ring illumination; RGB color options
- Contact rating of 1A @ 5-24VDC
- 50,000,000-cycle electrical life
- Concave or flat bezel options
- Black or clear anodized (double flat) housing
Panel Mount 19mm Pushbutton Switch: Pilot Light Options
PVL19 Series Illuminated Pilot Indicator: VIEW THE DATA SHEET | CONFIGURATOR
- IP67 rated for dust and moisture protection
- Multiple LED color and voltage options
- Flat or domed lens
- Solder lug, screw or wire leads (150mm) termination
- Stainless steel, black anodized or nickel plated body finish
- Lamp life of 40,000 hours nominal
Looking for more pushbuttons and different sizes? Use our parametric search and select “MORE ATTRIBUTES” to filter by the “Panel Cutout” value. Alternatively, use our request form for more assistance!
